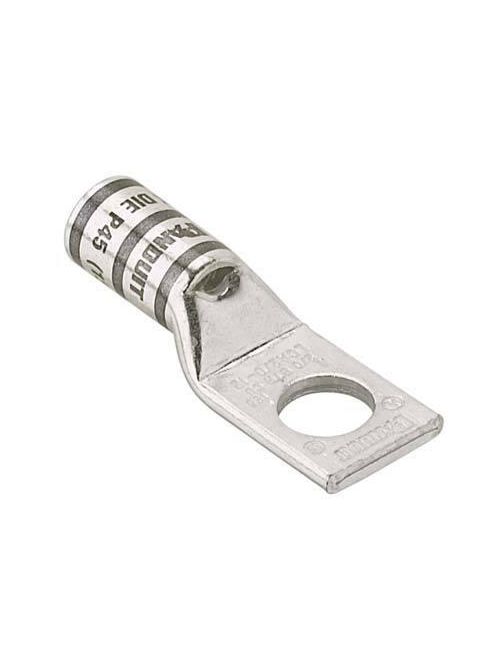

Panduit LCA3/0-12-X 1-Hole 3/0 AWG Copper Compression Lug

Specifications

• Product Segment: IEI
• Outer Diameter (mm): 16.25
• Inside Diameter (In.): 0.51
• Inside Diameter (mm): 12.95
• Outer Diameter (In.): 0.64
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Lug Type: 1 Stud Hole Lug
• Base Material: Copper
• Sub Brand: Pan-Lug™
• Copper Code Conductor Size (AWG): 3/0
• Stud Hole Size (mm): 12.7
• Stud Hole Size (In.): 1/2
• Barrel Type: Standard Barrel with Inspection Window
• Barrel Length (In.): 1.14
• Barrel Length (mm): 29
• Tongue Type: Standard
• Tongue Width (mm): 24.4
• Tongue Width (In.): 0.96
• Tongue Angle: Straight
• Tongue Thickness (mm): 3.3
• Tongue Thickness (In.): 0.13
• Overall Length (mm): 65.5
• Overall Length (In.): 2.58
• Finish/Coating: Tin-Plated
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• UL Temperature Rating (°C): 90
• Maximum Voltage (kV): 35
• Color Code: Orange
• Panduit Die Index Number: P50
• T & B Die Index Number: 14
• Burndy Die Index Number: 14
• Wire Strip Length (mm): 30.2
• Wire Strip Length (In.): 1-3/16

Packaging Details

• UPC: 07498390036
• GTIN Package: 00074983900367
• Standard Package Volume Ft3: 0.0328
• Standard Package Weight Pounds: 1.0750
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 4.65
• Std Package Length MM: 118.11
• Std Package Width In: 3.55
• Std Package Width MM: 90.17
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• Standard Carton Volume Ft3: 0.0328
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 118.11
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983900367
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
