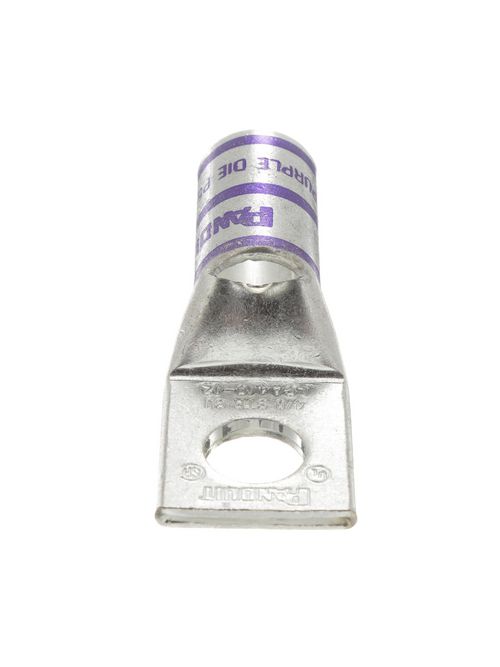

Panduit LCA4/0-12-X 1-Hole 4/0 AWG Copper Compression Lug

Specifications

• Product Segment: IEI
• Inside Diameter (mm): 14.47
• Outer Diameter (In.): 0.71
• Outer Diameter (mm): 18.03
• Inside Diameter (In.): 0.57
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Lug Type: 1 Stud Hole Lug
• Base Material: Copper
• Copper Code Conductor Size (AWG): 4/0
• Sub Brand: Pan-Lug™
• Stud Hole Size (In.): 1/2
• Stud Hole Size (mm): 12.7
• Barrel Type: Standard Barrel with Inspection Window
• Barrel Length (mm): 30.2
• Barrel Length (In.): 1.19
• Tongue Type: Standard
• Tongue Width (mm): 26.9
• Tongue Width (In.): 1.06
• Tongue Angle: Straight
• Tongue Thickness (mm): 3.6
• Tongue Thickness (In.): 0.14
• Overall Length (In.): 2.68
• Overall Length (mm): 68.1
• Finish/Coating: Tin-Plated
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• UL Temperature Rating (°C): 90
• Maximum Voltage (kV): 35
• Color Code: Purple
• Panduit Die Index Number: P54
• Burndy Die Index Number: 15
• T & B Die Index Number: 15
• Wire Strip Length (mm): 31.8
• Wire Strip Length (In.): 1-1/4

Packaging Details

• UPC: 07498390041
• GTIN Package: 00074983900411
• Standard Package Volume Ft3: 0.0328
• Standard Package Weight Pounds: 1.2800
• Std Package Height In: 3.45
• Std Package Height MM: 87.63
• Std Package Length In: 4.7
• Std Package Length MM: 119.38
• Std Package Width In: 3.45
• Std Package Width MM: 87.63
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• Standard Carton Volume Ft3: 0.0328
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 119.38
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983900411
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
