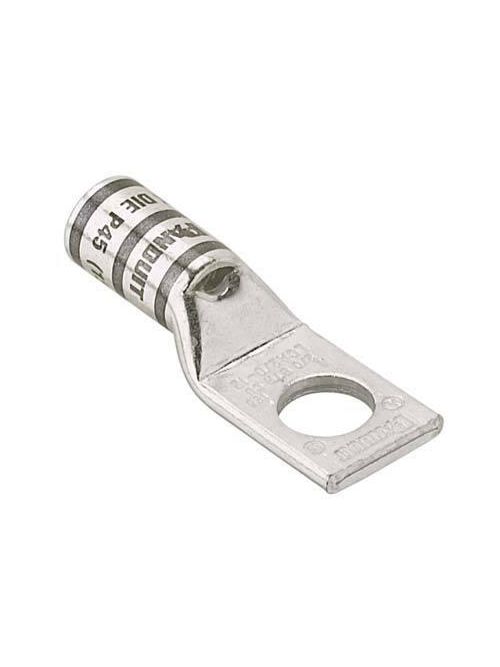

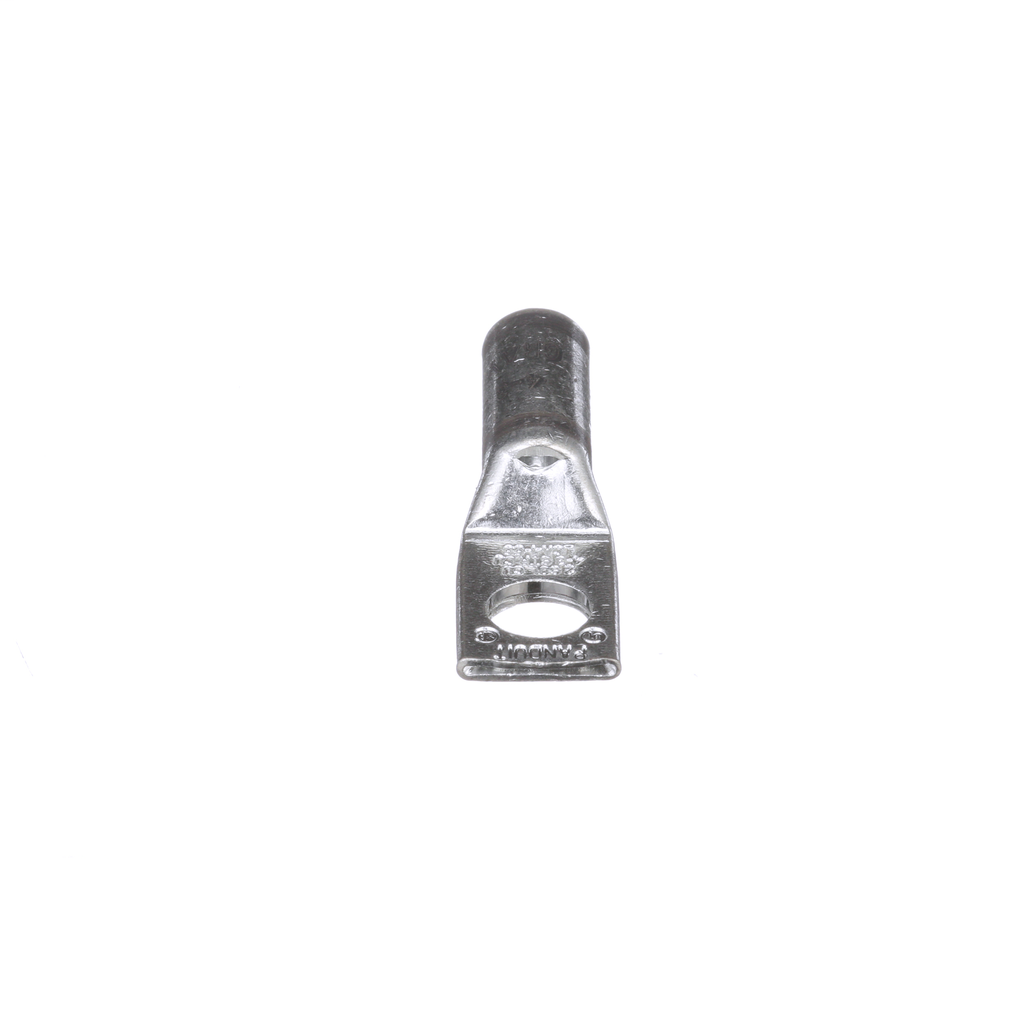

Panduit LCA4-56-L 1-Hole #4 - #3 AWG STR Copper Compression Lug

Specifications

• Product Segment: IEI
• Outer Diameter (In.): 0.38
• Outer Diameter (mm): 9.65
• Inside Diameter (In.): 0.28
• Inside Diameter (mm): 7.11
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Lug Type: 1 Stud Hole Lug
• Base Material: Copper
• Copper Code Conductor Size (AWG): 4
• Sub Brand: Pan-Lug™
• Stud Hole Size (mm): 7.9
• Stud Hole Size (In.): 5/16
• Barrel Type: Standard Barrel with Inspection Window
• Barrel Length (In.): 0.81
• Barrel Length (mm): 20.6
• Tongue Type: Standard
• Tongue Width (mm): 14
• Tongue Width (In.): 0.55
• Tongue Angle: Straight
• Tongue Thickness (mm): 2.3
• Tongue Thickness (In.): 0.09
• Overall Length (mm): 44.4
• Overall Length (In.): 1.75
• Finish/Coating: Tin-Plated
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• UL Temperature Rating (°C): 90
• Maximum Voltage (kV): 35
• Color Code: Gray
• Panduit Die Index Number: P29
• Burndy Die Index Number: 8
• T & B Die Index Number: 8
• Wire Strip Length (mm): 22.2
• Wire Strip Length (In.): 7/8

Packaging Details

• UPC: 07498390012
• GTIN Package: 00074983900121
• Standard Package Volume Ft3: 0.0328
• Standard Package Weight Pounds: 1.3400
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 4.85
• Std Package Length MM: 123.19
• Std Package Width In: 3.4
• Std Package Width MM: 86.36
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• Standard Carton Volume Ft3: 0.0328
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 123.19
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983900121
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
