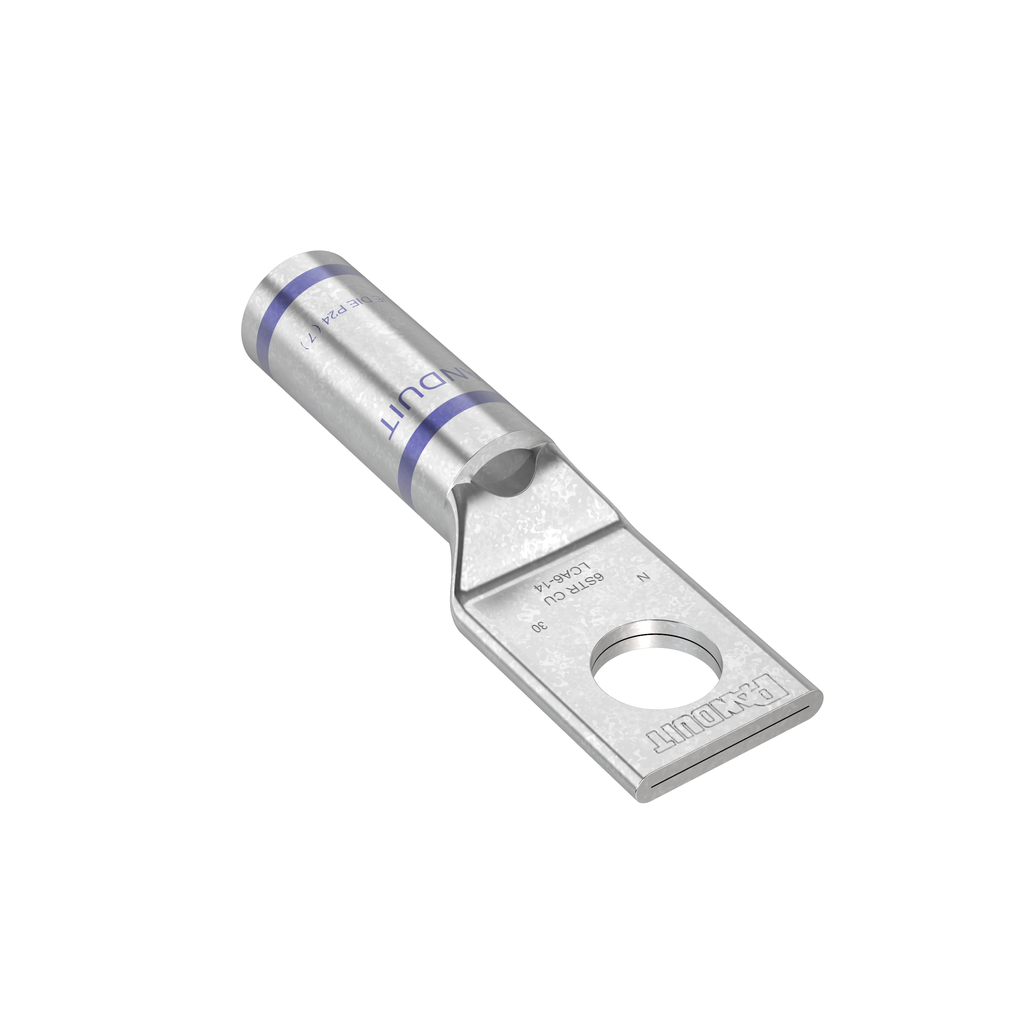

Panduit LCA6-14-L 1-Hole #6 AWG Copper Compression Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$318.44/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCA6-14-L
North Coast Part # 598865

Specifications

  • Product Segment: IEI
  • Inside Diameter (mm): 5.58
  • Outer Diameter (In.): 0.31
  • Outer Diameter (mm): 7.87
  • Inside Diameter (In.): 0.22
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 1 Stud Hole Lug
  • Base Material: Copper
  • Sub Brand: Pan-Lug™
  • Copper Code Conductor Size (AWG): 6
  • Stud Hole Size (In.): 1/4
  • Stud Hole Size (mm): 6.4
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (In.): 0.81
  • Barrel Length (mm): 20.57
  • Tongue Type: Standard
  • Tongue Width (In.): 0.48
  • Tongue Width (mm): 12.2
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.08
  • Tongue Thickness (mm): 2
  • Overall Length (In.): 1.61
  • Overall Length (mm): 40.9
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Blue
  • Panduit Die Index Number: P24
  • Burndy Die Index Number: 7
  • T & B Die Index Number: 7
  • Wire Strip Length (mm): 22.2
  • Wire Strip Length (In.): 7/8

Packaging Details

  • UPC: 07498390006
  • GTIN Package: 00074983900060
  • Standard Package Volume Ft3: 0.0290
  • Standard Package Weight Pounds: 1.0300
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 4.85
  • Std Package Length MM: 123.19
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0290
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 123.19
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983900060
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 226,800
  • Pallet Volume: 0.000000
  • Pallet Weight: 4,672.0800

Overview

GTiN 00074983900060
Finish Tin Plated
Size #6 AWG Code
Color Blue
Type Type LCA
Barrel Type Standard
Material Copper
Stud Size 0.25 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Pkg Qty 50
Family Brand Name Panduit
Overall Length 1.61 in
Barrel Length 0.81 in
Color Coding Blue
Sub Brand Pan-Lug
CA Prop65 Warning No
Product UPC 07498390006
Voltage 35000 Volt
