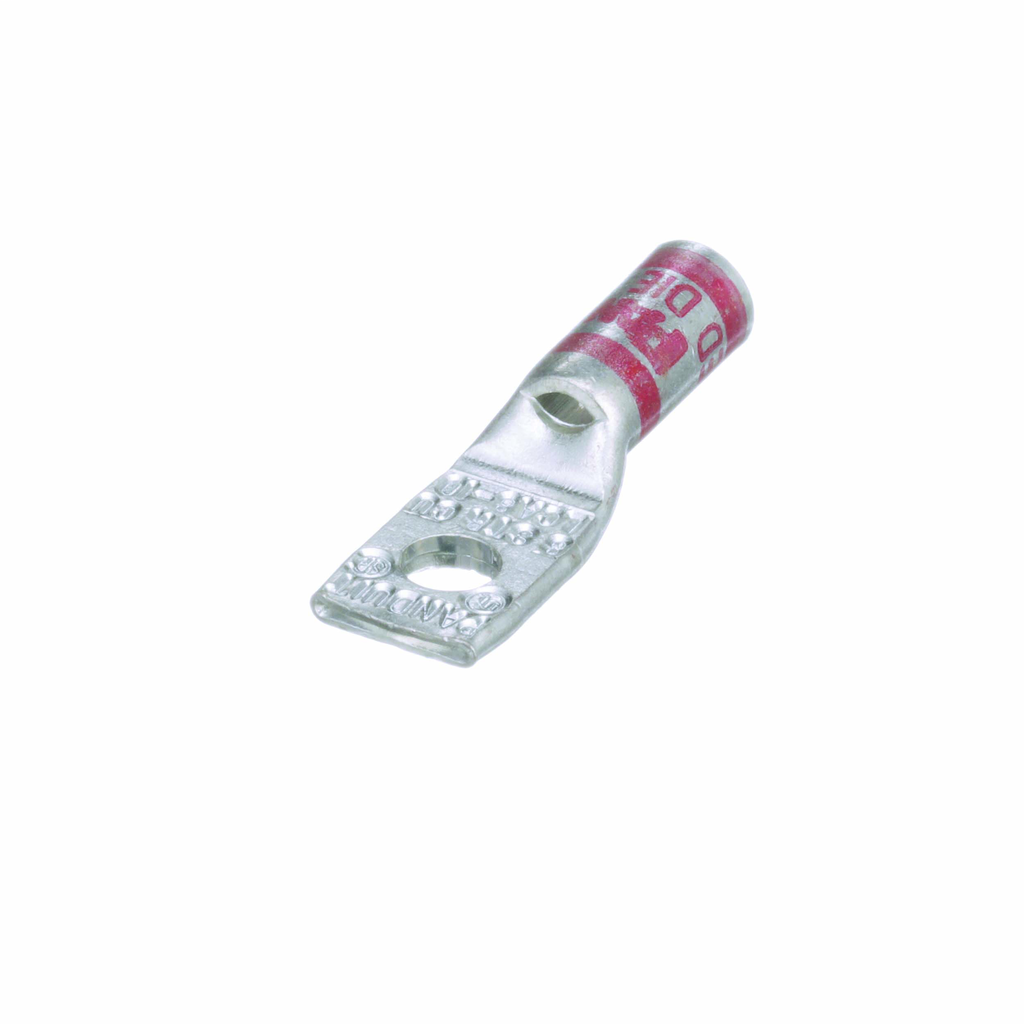

Panduit LCA8-10-L 1-Hole #8 AWG Copper Compression Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$288.85/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCA8-10-L
North Coast Part # 598867

Specifications

  • Product Segment: IEI
  • Inside Diameter (In.): 0.18
  • Outer Diameter (In.): 0.27
  • Outer Diameter (mm): 6.85
  • Inside Diameter (mm): 4.57
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 1 Stud Hole Lug
  • Base Material: Copper
  • Sub Brand: Pan-Lug™
  • Copper Code Conductor Size (AWG): 8
  • Stud Hole Size (In.): #10
  • Stud Hole Size (mm): 4.8
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (mm): 14.2
  • Barrel Length (In.): 0.56
  • Tongue Type: Standard
  • Tongue Width (mm): 10.4
  • Tongue Width (In.): 0.41
  • Tongue Angle: Straight
  • Tongue Thickness (mm): 2
  • Tongue Thickness (In.): 0.08
  • Overall Length (In.): 1.25
  • Overall Length (mm): 31.8
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Red
  • Panduit Die Index Number: P21
  • T & B Die Index Number: 49
  • Burndy Die Index Number: 49
  • Wire Strip Length (In.): 5/8
  • Wire Strip Length (mm): 15.9

Packaging Details

  • UPC: 07498390000
  • GTIN Package: 00074983900008
  • Standard Package Volume Ft3: 0.0184
  • Standard Package Weight Pounds: 0.7300
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 4.7
  • Std Package Length MM: 119.38
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0184
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 119.38
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983900008
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Categories

Overview

UPC 07498390000
Item Long Description The LCA8-10-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
GTiN 00074983900008
Size #8 AWG Code
Color Red
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.19 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Pkg Qty 50
Family Brand Name Panduit
Overall Length 1.25 in
Barrel Length 0.56 in
Color Coding Red
Sub Brand Copper Compression Lug
CA Prop65 Warning No
Voltage 35,000 Volt
