PAN LCAN2/0-38-X Panduit LCAN2/0-38
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,319.11/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAN2/0-38-X
North Coast Part # 759030

Specifications

  • Product Segment: IEI
  • Inside Diameter (In.): 0.45
  • Outer Diameter (In.): 0.58
  • Outer Diameter (mm): 14.73
  • Inside Diameter (mm): 11.43
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 1 Stud Hole Lug
  • Base Material: Copper
  • Copper Code Conductor Size (AWG): 2/0
  • Sub Brand: Pan-Lug™
  • Stud Hole Size (mm): 9.5
  • Stud Hole Size (In.): 3/8
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (In.): 0.98
  • Barrel Length (mm): 24.9
  • Tongue Type: Narrow
  • Tongue Width (mm): 13.2
  • Tongue Width (In.): 0.58
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.15
  • Tongue Thickness (mm): 3.8
  • Overall Length (mm): 55.1
  • Overall Length (In.): 2.17
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52165
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Black
  • Panduit Die Index Number: P45
  • T & B Die Index Number: 13
  • Burndy Die Index Number: 13
  • Wire Strip Length (In.): 1-1/16
  • Wire Strip Length (mm): 26.9

Packaging Details

  • UPC: 07498344478
  • GTIN Package: 00074983444786
  • Standard Package Volume Ft3: 0.0312
  • Standard Package Weight Pounds: 0.7000
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 4.75
  • Std Package Length MM: 120.65
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0312
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 120.65
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983444786
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498344478

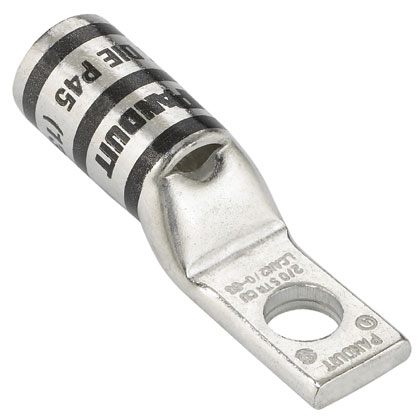

Item Long Description The LCAN2/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
GTiN 00074983444786
Size 2/0 AWG Code
Color Black
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 42,950 IN
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Pkg Qty 10
Family Brand Name Panduit
Overall Length 2.17 in
Barrel Length 0.98 in
Color Coding Black
Sub Brand Pan-Lug
CA Prop65 Warning No
Voltage 35,000 Volt
