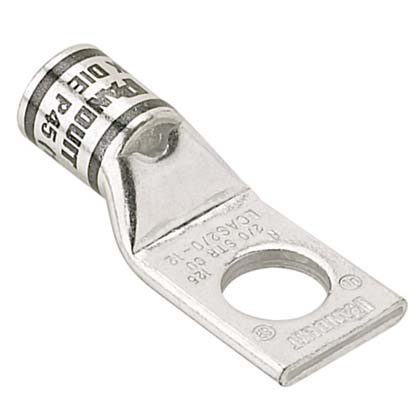

PAN LCAS1-56-E CuLug,#1AWG,Short,5/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$827.76/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS1-56-E
North Coast Part # 680735

Specifications

  • Length (In.): 1.63
  • Material: Tin-Plated Copper
  • Order Multiple Quantity Each: 1
  • Sub Brand: Type LCAS
  • Length In (mm): 1.63 (41.4)
  • Brand Name: Panduit
  • Length (mm): 41.4
  • Order Min Qty Each: 1

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Packaging Details

  • UNSPSC Piece Desription: EACH
  • UNSPSC Package Description: PACKAGE
  • Ship Pack Packaging Description: BOX
  • Std Package Length MM: 99.06
  • GTIN Package: 00074983225347
  • Sell Pkg Qty 1: 1
  • Std Package Height: 3.4
  • Std Package Height MM: 86.36
  • UNSPSC Package UOM: PK
  • UNSPSC Piece UOM: EA
  • Std Package Length: 3.9
  • Std Package Width: 2.4
  • Std Package Width MM: 60.96
  • Sell Pack Packaging Description: BOX
  • Part Number Full UPC: 7498322534
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 20
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.79600000000000004
  • Standard Carton Weight: 0

Certifications & Approvals

  • CSA Certified: C22.2 No. 65-13
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • ECCN Commodity Code: EAR99
  • UL Listed: 486A-486B File #E52164
  • UL and CSA Voltage Rating: 35kV
  • CE Compliant: No
  • ARRA Compliant: Y
  • MSDS Indicator: N
  • Ozone Depleting Compounds: N
  • CE Marking: No
  • American Bureau Shipping Approved: Yes
  • RoHS Compliancy Status: Compliant
  • Buy American Compliant: Y
  • UL and CSA Temperature Rating: 90°

Additional Specifications

  • Burndy Die Index No.: 11
  • UNSPSC: 39121405
  • Barrel Type: Short Barrel Length with Inspection Window
  • Panduit Color Code: Green
  • Tongue Thickness In. (mm): 0.11 (2.8)
  • Barrel Length (In.): 0.59
  • Barrel Length (mm): 15.0
  • Panduit Die Index No.: P37
  • T&B Die Index No.: 37
  • Tongue Thickness (mm): 2.8
  • Tongue Width In. (mm): 0.70 (17.8)
  • Wire Strip Length (mm): 17.5
  • Tongue Type: Standard
  • Corona Relief Taper: No
  • Country of Origin Description: Mexico
  • Tongue Thickness: 0.11
  • UOM EA Pk: PK
  • Conductor Material: Copper
  • Unit Volume: .0005208
  • Part Number Series: LCAS
  • Stud Hole Size (mm): 7.9
  • Stud Hole Size In. (mm): 5/16 (7.9)
  • Barrel Style: Standard
  • NMFC Rate: 70
  • Gross Volume UOM: CU
  • Hazardous Material Flag: N
  • Conductor Size: #1 AWG Code
  • Wire Strip Length In. (mm): 11/16 (17.5)
  • Clearance: 0.44
  • Stud Hole Size (In.): 5/16
  • Tongue Width (In.): 0.70
  • Tongue Width (mm): 17.8
  • Code Conductor Size: #1 AWG Code
  • Angle: Straight
  • Lowest Level UOM: EA
  • Product Group Assignment: Power Connectors
  • Unit Weight: .0398
  • Wire Strip Length (In.): 11/16
  • Barrel Length In. (mm): 0.59 (15.0)
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Country of Origin 2Digit: MX
  • Copper Conductor Size: #1 AWG
  • Tongue Angle: Straight
  • Master Pack Quantity: 1
  • Master Pack Packaging Description: BOX

Overview

UPC 07498322534
Item Long Description One-hole, short barrel with window lug, #1 AWG wire, 5/16" stud hole.
GTiN 00074983225347
Length 1.63 in
Size #1 AWG Code
Color Green
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Short Barrel Length with Inspection Window
Material Tin Plated Copper
Stud Size 42,491 IN
Number of Holes 1 Hole
Country of Origin Mexico
Angle Straight
Tongue Type Standard
Tongue Width .7 in
Pkg Qty 20
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.63 in
Barrel Length .59 in
Tongue Thickness .11 in
Color Coding Green
Sub Brand Pan-Lug
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
Product Type Power Connectors
Stud Hole Size 5/16 in
