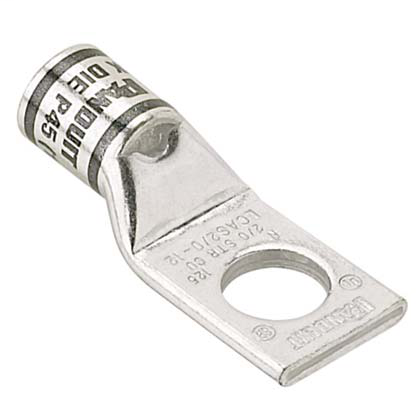

PAN LCAS2/0-14-X CuLug,2/0AWG,Short
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,086.08/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS2/0-14-X
North Coast Part # 680736

Specifications

  • Length In (mm): 1.82 (46.2)
  • Length (mm): 46.2
  • Order Min Qty Each: 1
  • Length (In.): 1.82
  • Brand Name: Panduit
  • Material: Tin-Plated Copper
  • Sub Brand: Type LCAS
  • Order Multiple Quantity Each: 1

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Packaging Details

  • Ship Pkg Qty 1: 1
  • UNSPSC Piece Desription: EACH
  • Std Package Width: 2.4
  • Std Package Height: 3.4
  • Sell Pkg Qty 1: 1
  • Ship Pack Packaging Description: BOX
  • UNSPSC Piece UOM: EA
  • Std Package Height MM: 86.36
  • UNSPSC Package Description: PACKAGE
  • Std Package Length: 3.9
  • Std Package Length MM: 99.06
  • UNSPSC Package UOM: PK
  • GTIN Package: 00074983225019
  • Std Package Width MM: 60.96
  • Sell Pack Packaging Description: BOX
  • Part Number Full UPC: 7498322501
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 10
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.67
  • Standard Carton Weight: 0

Certifications & Approvals

  • Ozone Depleting Compounds: N
  • ARRA Compliant: Y
  • CSA Certified: C22.2 No. 65-13
  • ECCN Commodity Code: EAR99
  • UL Listed: 486A-486B File #E52164
  • MSDS Indicator: N
  • FIFRA Indicator: N
  • Heavy Metal Content Indicator: N
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • UL and CSA Voltage Rating: 35kV
  • Lead Content Indicator: N
  • CE Marking: No
  • Cadmium Content Indicator: N
  • Chromium Content Indicator: N
  • RoHS Compliancy Status: Compliant
  • California Prop 65 Cancer: N
  • American Bureau Shipping Approved: Yes
  • Restricted Use of Hazardous Substances: N
  • UL and CSA Temperature Rating: 90°
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • Certificate of Conformity: N
  • California Prop 65 Reproductive Harm: N
  • Buy American Compliant: Y
  • Other Heavy Metal Content Indicator: N
  • CE Compliant: No

Additional Specifications

  • Unit Volume: .00184
  • Conductor Size: 2/0 AWG Code
  • Corona Relief Taper: No
  • Hazardous Material Flag: N
  • Suggested Index Terms: copper compression lug, 1hole, short barrel
  • For Export: Y
  • UNSPSC: 39121405
  • Product Group Assignment: Power Connectors
  • Tongue Width (mm): 21.6
  • T&B Die Index No.: 45
  • Wire Strip Length (In.): 3/4
  • Wire Strip Length In. (mm): 3/4 (19.1)
  • Barrel Length (mm): 18.3
  • Country of Origin Description: Mexico
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Stud Hole Size In. (mm): 1/4 (6.4)
  • Wire Strip Length (mm): 19.1
  • Parts Available: N
  • Barrel Length (In.): 0.72
  • Tongue Thickness: 0.13
  • Barrel Type: Short Barrel Length with Inspection Window
  • NMFC Rate: 70
  • Tongue Type: Standard
  • Code Conductor Size: 2/0 AWG Code
  • Copper Conductor Size: 2/0 AWG
  • Tongue Angle: Straight
  • Part Number Series: LCAS
  • Barrel Length In. (mm): 0.72 (18.3)
  • Master Pack Packaging Description: BOX
  • Burndy Die Index No.: 13
  • Panduit Color Code: Black
  • Tongue Width (In.): 0.85
  • Conductor Material: Copper
  • Stud Hole Size (In.): 1/4
  • MSDS Doc Name: N
  • Stud Hole Size (mm): 6.4
  • Lowest Level UOM: EA
  • Barrel Style: Standard
  • Mercury Content Indicator: N
  • Angle: Straight
  • Gross Volume UOM: CU
  • UOM EA Pk: PK
  • Tongue Thickness (mm): 3.3
  • Country of Origin 2Digit: MX
  • Tongue Width In. (mm): 0.85 (21.6)
  • Tongue Thickness In. (mm): 0.13 (3.3)
  • Unit Weight: .067
  • Panduit Die Index No.: P45
  • Master Pack Quantity: 1
  • Clearance: 0.43

Overview

UPC 07498322501
Item Long Description One-hole, short barrel with window lug, 2/0 AWG wire, 1/4" stud hole.
GTiN 00074983225019
Length 1.82 in
Size 2/0 AWG Code
Color Black
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Short Barrel Length with Inspection Window
Material Tin Plated Copper
Stud Size 42,826 IN
Conductor Size 2/0 AWG
Number of Holes 1 Hole
Angle Straight
Tongue Type Standard
Tongue Width .85 in
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Barrel Length .72 in
Tongue Thickness .13 in
Sub Brand Pan-Lug
Country of Origin Mexico
Pkg Qty 10
Overall Length 1.82 in
Color Coding Black
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
Product Type Power Connectors
Stud Hole Size 1/4 in
