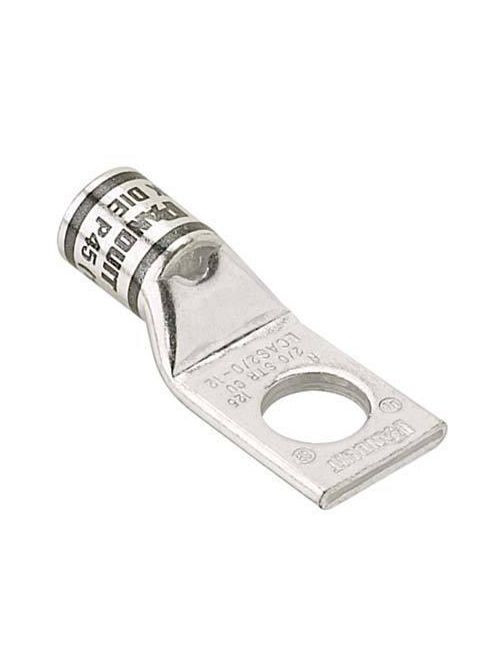

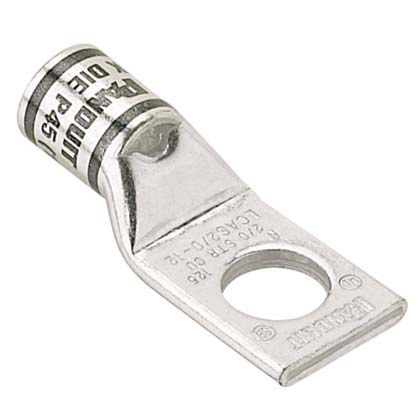

PAN LCAS2/0-56-X CuLug,2/0AWG,Short
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$991.70/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS2/0-56-X
North Coast Part # 680740

Specifications

  • Order Min Qty Each: 1
  • Length In (mm): 1.82 (46.2)
  • Order Multiple Quantity Each: 1
  • Sub Brand: Type LCAS
  • Material: Tin-Plated Copper
  • Brand Name: Panduit
  • Length (mm): 46.2
  • Length (In.): 1.82

Packaging Details

  • UNSPSC Piece UOM: EA
  • UNSPSC Package UOM: PK
  • Ship Pkg Qty 1: 1
  • Std Package Height: 3.4
  • Std Package Height MM: 86.36
  • GTIN Package: 00074983225026
  • UNSPSC Package Description: PACKAGE
  • Std Package Length: 3.9
  • Sell Pkg Qty 1: 1
  • Sell Pack Packaging Description: BOX
  • Ship Pack Packaging Description: BOX
  • UNSPSC Piece Desription: EACH
  • Std Package Width MM: 60.96
  • Std Package Width: 2.4
  • Std Package Length MM: 99.06
  • Part Number Full UPC: 7498322502
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 10
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.65500000000000003
  • Standard Carton Weight: 0

Certifications & Approvals

  • California Prop 65 Cancer: N
  • UL Listed: 486A-486B File #E52164
  • Cadmium Content Indicator: N
  • RoHS Compliancy Status: Compliant
  • Ozone Depleting Compounds: N
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • Certificate of Conformity: N
  • California Prop 65 Reproductive Harm: N
  • Lead Content Indicator: N
  • Other Heavy Metal Content Indicator: N
  • CE Compliant: No
  • American Bureau Shipping Approved: Yes
  • CE Marking: No
  • ARRA Compliant: Y
  • MSDS Indicator: N
  • ECCN Commodity Code: EAR99
  • UL and CSA Voltage Rating: 35kV
  • Chromium Content Indicator: N
  • FIFRA Indicator: N
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • CSA Certified: C22.2 No. 65-13
  • UL and CSA Temperature Rating: 90°
  • Buy American Compliant: Y
  • Heavy Metal Content Indicator: N
  • Restricted Use of Hazardous Substances: N

Additional Specifications

  • Copper Conductor Size: 2/0 AWG
  • Master Pack Packaging Description: BOX
  • NMFC Rate: 70
  • Suggested Index Terms: copper compression lug, 1hole, short barrel
  • Barrel Length (In.): 0.72
  • Unit Volume: .0010417
  • UNSPSC: 39121405
  • Stud Hole Size In. (mm): 5/16 (7.9)
  • Tongue Thickness: 0.13
  • Tongue Width In. (mm): 0.85 (21.6)
  • Clearance: 0.43
  • MSDS Doc Name: N
  • Master Pack Quantity: 1
  • Panduit Die Index No.: P45
  • For Export: Y
  • Tongue Angle: Straight
  • Barrel Length (mm): 18.3
  • Hazardous Material Flag: N
  • Wire Strip Length (In.): 3/4
  • Tongue Thickness (mm): 3.3
  • Barrel Length In. (mm): 0.72 (18.3)
  • Stud Hole Size (In.): 5/16
  • Stud Hole Size (mm): 7.9
  • Angle: Straight
  • Burndy Die Index No.: 13
  • Conductor Material: Copper
  • Wire Strip Length In. (mm): 3/4 (19.1)
  • Wire Strip Length (mm): 19.1
  • Barrel Style: Standard
  • Unit Weight: .0655
  • Parts Available: N
  • T&B Die Index No.: 45
  • Part Number Series: LCAS
  • Tongue Width (mm): 21.6
  • Tongue Width (In.): 0.85
  • Country of Origin Description: Mexico
  • Tongue Thickness In. (mm): 0.13 (3.3)
  • Gross Volume UOM: CU
  • Mercury Content Indicator: N
  • Corona Relief Taper: No
  • Code Conductor Size: 2/0 AWG Code
  • UOM EA Pk: PK
  • Barrel Type: Short Barrel Length with Inspection Window
  • Lowest Level UOM: EA
  • Panduit Color Code: Black
  • Product Group Assignment: Power Connectors
  • Conductor Size: 2/0 AWG Code
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Country of Origin 2Digit: MX
  • Tongue Type: Standard

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Overview

UPC 07498322502
GTiN 00074983225026
Length 1.82 in
Size 2/0 AWG Code
Color Black
Type Type LCAS
Barrel Type Short Barrel Length with Inspection Window,Standard Barrel
Material Tin Plated Copper
Stud Size 0.3125 in
Conductor Size 2/0 AWG
Number of Holes 1 Hole
Angle Straight
Tongue Type Standard
Tongue Width .85 in
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Barrel Length .72 in
Tongue Thickness .13 in
Sub Brand Copper Compression Lug
Country of Origin MX
Pkg Qty 10
Carton Qty 0
Overall Length 1.82 in
Color Coding Black
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
