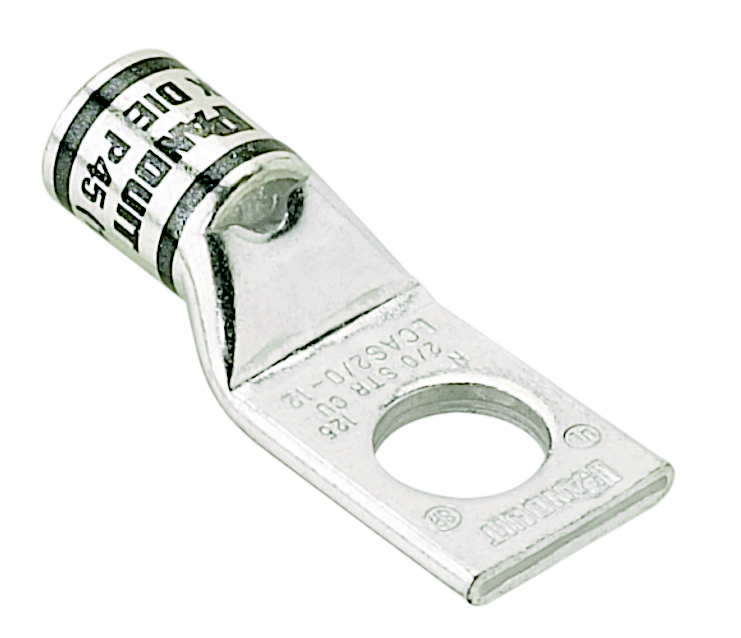

Panduit LCAS2-14-Q 1-Hole #2 AWG Copper Compression Lug
$770.92/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS2-14-Q
North Coast Part # 601319

Specifications

  • Brand Name: Panduit
  • Length (mm): 37.1
  • Length (In.): 1.46
  • Sub Brand: Type LCAS
  • Order Multiple Quantity Each: 1
  • Order Min Qty Each: 1
  • Material: Tin-Plated Copper
  • Length In (mm): 1.46 (37.1)

Packaging Details

  • UNSPSC Piece UOM: EA
  • Sell Pack Packaging Description: BOX
  • UNSPSC Piece Desription: EACH
  • Sell Pkg Qty 1: 1
  • UNSPSC Package UOM: PK
  • Std Package Length MM: 99.06
  • Std Package Height: 3.4
  • Std Package Length: 3.9
  • Ship Pack Packaging Description: BOX
  • UNSPSC Package Description: PACKAGE
  • Std Package Width: 2.4
  • GTIN Package: 00074983225293
  • Std Package Width MM: 60.96
  • Std Package Height MM: 86.36
  • Part Number Full UPC: 7498322529
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 25
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.76500000000000001
  • Standard Carton Weight: 0

Certifications & Approvals

  • Ozone Depleting Compounds: N
  • ECCN Commodity Code: EAR99
  • ARRA Compliant: Y
  • UL and CSA Voltage Rating: 35kV
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • CE Marking: No
  • Buy American Compliant: Y
  • American Bureau Shipping Approved: Yes
  • RoHS Compliancy Status: Compliant
  • MSDS Indicator: N
  • CE Compliant: No
  • CSA Certified: C22.2 No. 65-13
  • UL Listed: 486A-486B File #E52164
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • UL and CSA Temperature Rating: 90°

Additional Specifications

  • Stud Hole Size (mm): 6.4
  • UOM EA Pk: PK
  • Wire Strip Length (In.): 5/8
  • Barrel Style: Standard
  • Wire Strip Length (mm): 15.9
  • Tongue Width (mm): 15.2
  • Tongue Angle: Straight
  • Conductor Size: #2 AWG Code
  • Barrel Length (mm): 14.5
  • Stud Hole Size In. (mm): 1/4 (6.4)
  • Barrel Length In. (mm): 0.57 (14.5)
  • Master Pack Packaging Description: BOX
  • Gross Volume UOM: CU
  • Barrel Length (In.): 0.57
  • Hazardous Material Flag: N
  • Angle: Straight
  • Product Group Assignment: Power Connectors
  • Unit Weight: .0306
  • Barrel Type: Short Barrel Length with Inspection Window
  • Wire Strip Length In. (mm): 5/8 (15.9)
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Tongue Width In. (mm): 0.60 (15.2)
  • Unit Volume: .0004167
  • Part Number Series: LCAS
  • Tongue Thickness In. (mm): 0.10 (2.5)
  • Corona Relief Taper: No
  • Burndy Die Index No.: 10
  • T&B Die Index No.: 33
  • Tongue Thickness (mm): 2.5
  • Tongue Type: Standard
  • NMFC Rate: 70
  • Code Conductor Size: #2 AWG Code
  • Panduit Die Index No.: P33
  • Lowest Level UOM: EA
  • Tongue Width (In.): 0.60
  • Conductor Material: Copper
  • Clearance: 0.38
  • Country of Origin Description: Mexico
  • Country of Origin 2Digit: MX
  • Tongue Thickness: 0.10
  • Copper Conductor Size: #2 AWG
  • UNSPSC: 39121405
  • Stud Hole Size (In.): 1/4
  • Master Pack Quantity: 1
  • Panduit Color Code: Brown

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Categories

Overview

UPC 07498322529
GTiN 00074983225293
Length 1.46 in
Size #2 AWG Code
Color Brown
Type Type LCAS
Barrel Type Short Barrel Length with Inspection Window,Standard Barrel
Material Tin Plated Copper
Stud Size 0.25 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Tongue Type Standard
Tongue Width .6 in
Pkg Qty 25
Family Brand Name Panduit
Conductor Material Copper
Carton Qty 0
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.46 in
Barrel Length .57 in
Tongue Thickness .1 in
Color Coding Brown
Sub Brand Copper Compression Lug
CA Prop65 Warning No
Voltage null
UNSPSC 39121405
