PAN LCAS3/0-14-X CuLug,3/0AWG,Short
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,255.03/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS3/0-14-X
North Coast Part # 680742

Specifications

  • Material: Tin-Plated Copper
  • Length (mm): 50.0
  • Order Min Qty Each: 1
  • Length (In.): 1.97
  • Sub Brand: Type LCAS
  • Order Multiple Quantity Each: 1
  • Brand Name: Panduit
  • Length In (mm): 1.97 (50.0)

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Packaging Details

  • UNSPSC Piece Desription: EACH
  • Std Package Width MM: 60.96
  • Std Package Length: 3.9
  • Std Package Height: 3.4
  • Std Package Width: 2.4
  • Std Package Height MM: 86.36
  • UNSPSC Piece UOM: EA
  • UNSPSC Package Description: PACKAGE
  • GTIN Package: 00074983225057
  • Std Package Length MM: 99.06
  • Ship Pack Packaging Description: BOX
  • Sell Pack Packaging Description: BOX
  • UNSPSC Package UOM: PK
  • Sell Pkg Qty 1: 1
  • Part Number Full UPC: 7498322505
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 10
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.81
  • Standard Carton Weight: 0

Certifications & Approvals

  • ARRA Compliant: Y
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • American Bureau Shipping Approved: Yes
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • UL Listed: 486A-486B File #E52164
  • Ozone Depleting Compounds: N
  • Buy American Compliant: Y
  • CE Compliant: No
  • ECCN Commodity Code: EAR99
  • UL and CSA Voltage Rating: 35kV
  • MSDS Indicator: N
  • RoHS Compliancy Status: Compliant
  • CE Marking: No
  • UL and CSA Temperature Rating: 90°
  • CSA Certified: C22.2 No. 65-13

Additional Specifications

  • Unit Weight: .081
  • UOM EA Pk: PK
  • Wire Strip Length (In.): 7/8
  • Corona Relief Taper: No
  • Conductor Material: Copper
  • Clearance: 0.43
  • Wire Strip Length In. (mm): 7/8 (22.2)
  • Conductor Size: 3/0 AWG Code
  • Lowest Level UOM: EA
  • Tongue Thickness: 0.13
  • Angle: Straight
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Stud Hole Size (mm): 6.4
  • Tongue Width (mm): 24.4
  • Panduit Die Index No.: P50
  • Tongue Thickness (mm): 3.3
  • Burndy Die Index No.: 14
  • Master Pack Quantity: 1
  • Stud Hole Size (In.): 1/4
  • Master Pack Packaging Description: BOX
  • Tongue Width (In.): 0.96
  • Barrel Length (In.): 0.83
  • Tongue Thickness In. (mm): 0.13 (3.3)
  • Country of Origin 2Digit: MX
  • Gross Volume UOM: CU
  • Tongue Width In. (mm): 0.96 (24.4)
  • Hazardous Material Flag: N
  • Tongue Type: Standard
  • Tongue Angle: Straight
  • Wire Strip Length (mm): 22.2
  • NMFC Rate: 70
  • UNSPSC: 39121405
  • Country of Origin Description: Mexico
  • T&B Die Index No.: 50
  • Barrel Style: Standard
  • Barrel Length In. (mm): 0.83 (21.1)
  • Barrel Length (mm): 21.1
  • Copper Conductor Size: 3/0 AWG
  • Part Number Series: LCAS
  • Unit Volume: .0010417
  • Panduit Color Code: Orange
  • Stud Hole Size In. (mm): 1/4 (6.4)
  • Product Group Assignment: Power Connectors
  • Code Conductor Size: 3/0 AWG Code
  • Barrel Type: Short Barrel Length with Inspection Window

Overview

UPC 07498322505

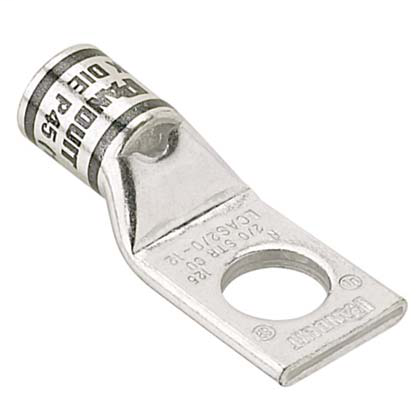

Item Long Description One-hole, short barrel with window lug, 3/0 AWG wire, 1/4" stud hole.
GTiN 00074983225057
Length 1.97 in
Size 3/0 AWG Code
Color Orange
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Short Barrel Length with Inspection Window
Material Tin Plated Copper
Stud Size 42,826 IN
Conductor Size 3 AWG
Number of Holes 1 Hole
Angle Straight
Tongue Type Standard
Tongue Width .96 in
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Barrel Length .83 in
Tongue Thickness .13 in
Sub Brand Pan-Lug
Country of Origin Mexico
Pkg Qty 10
Overall Length 1.97 in
Color Coding Orange
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
Product Type Power Connectors
Stud Hole Size 1/4 in
