Panduit LCAS4-38-L 1-Hole #4 AWG 3/8 Inch Stud Hole Copper Compression Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$430.11/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS4-38-L
North Coast Part # 680751

Specifications

  • UNSPSC: 39121405
  • Product Segment: IEI
  • Copper Conductor Size (kcmil): 42
  • Copper Conductor Size (AWG): #4
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Sub Brand: Pan-Lug
  • Stud Hole Size (In.): 42.95
  • Stud Hole Size (mm): 9.5
  • Barrel Type: Short Barrel Length with Inspection Window
  • Barrel Length (In.): 0.53
  • Barrel Length (mm): 13.5
  • Tongue Type: Standard
  • Tongue Width (mm): 15.7
  • Tongue Width (In.): 0.62
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.07
  • Tongue Thickness (mm): 1.8
  • Overall Length (In.): 1.57
  • Overall Length (mm): 39.9
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • Color Code: Gray
  • Panduit Die Index Number: P29
  • Burndy Die Index Number: 8
  • Wire Strip Length (In.): 42,952
  • Wire Strip Length (mm): 15.9

Packaging Details

  • UPC: 07498322528
  • GTIN Package: 00074983225286
  • Standard Package Volume Ft3: 0.0184
  • Standard Package Weight Pounds: 1.1250
  • Std Package Height In: 3.55
  • Std Package Height MM: 90.17
  • Std Package Length In: 4.75
  • Std Package Length MM: 120.65
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0184
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 120.65
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983225286
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Categories

Overview

UPC 07498322528

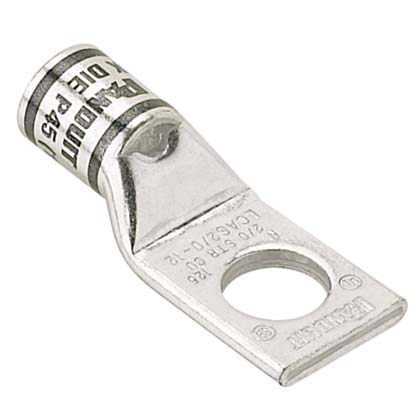

Item Long Description One-hole, short barrel with window lug, #4 AWG wire, 3/8 stud hole.
GTiN 00074983225286
Length 1.57 in
Size #4 AWG Code
Color Gray
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Short Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 42,950 IN
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Tongue Type Standard
Tongue Width .62 in
Pkg Qty 50
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.57 in
Barrel Length 0.53 in
Tongue Thickness .07 in
Color Coding Gray
Sub Brand Pan-Lug
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
