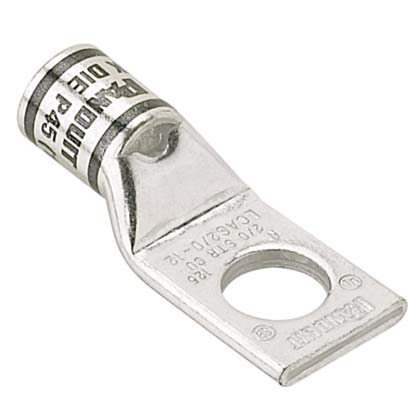

Panduit LCAS4-56-L 1-Hole #4 AWG Copper Compression Lug

Specifications

• Brand Name: Panduit
• Length In (mm): 1.47 (37.3)
• Sub Brand: Type LCAS
• Length (mm): 37.3
• Length (In.): 1.47
• Order Multiple Quantity Each: 1
• Material: Tin-Plated Copper
• Order Min Qty Each: 1

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Packaging Details

• UNSPSC Piece Desription: EACH
• Ship Pack Packaging Description: BOX
• UNSPSC Piece UOM: EA
• UNSPSC Package UOM: PK
• Std Package Width MM: 60.96
• Std Package Length: 3.9
• Sell Pkg Qty 1: 1
• Std Package Height MM: 86.36
• Std Package Height: 3.4
• UNSPSC Package Description: PACKAGE
• Std Package Width: 2.4
• Sell Pack Packaging Description: BOX
• Ship Pkg Qty 1: 1
• Std Package Length MM: 99.06
• GTIN Package: 00074983225279
• Part Number Full UPC: 7498322527
• Minimum Order Quantity: 1
• Standard Package Quantity: 50
• Stanard Carton Quantity: 0
• Standard Package Weight: 1.08
• Standard Carton Weight: 0

Certifications & Approvals

• ARRA Compliant: Y
• Other Heavy Metal Content Indicator: N
• California Prop 65 Reproductive Harm: N
• Cadmium Content Indicator: N
• MSDS Indicator: N
• FIFRA Indicator: N
• Tested by Telcordia-Meets NEBS Level 3: Yes
• CE Compliant: No
• CSA Certified: C22.2 No. 65-13
• ECCN Commodity Code: EAR99
• UL Listed: 486A-486B File #E52164
• Ozone Depleting Compounds: N
• California Prop 65 Cancer: N
• RoHS Compliancy Status: Compliant
• Buy American Compliant: Y
• CE Marking: No
• Chromium Content Indicator: N
• Lead Content Indicator: N
• UL and CSA Temperature Rating: 90°
• UL and CSA Voltage Rating: 35kV
• Heavy Metal Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
• American Bureau Shipping Approved: Yes
• Certificate of Conformity: N

Additional Specifications

• Hazardous Material Flag: N
• Country of Origin 2Digit: MX
• NMFC Rate: 70
• Wire Strip Length (mm): 15.9
• Part Number Series: LCAS
• Suggested Index Terms: copper compression lug, 1hole, short barrel
• Tongue Thickness In. (mm): 0.09 (2.3)
• Code Conductor Size: #4 AWG Code
• Master Pack Quantity: 1
• Tongue Angle: Straight
• Unit Volume: .0002083
• Barrel Length (In.): 0.53
• T&B Die Index No.: 29
• Mercury Content Indicator: N
• Conductor Material: Copper
• Stud Hole Size (mm): 7.9
• Stud Hole Size (In.): 5/16
• Barrel Type: Short Barrel Length with Inspection Window
• Conductor Size: #4 AWG Code
• Wire Strip Length In. (mm): 5/8 (15.9)
• Tongue Width In. (mm): 0.55 (14.0)
• Copper Conductor Size: #4 AWG
• Barrel Length (mm): 13.5
• Product Group Assignment: Power Connectors
• Master Pack Packaging Description: BOX
• Stud Hole Size In. (mm): 5/16 (7.9)
• MSDS Doc Name: N
• Barrel Style: Standard
• Tongue Thickness: 0.09
• Tongue Thickness (mm): 2.3
• Corona Relief Taper: No
• Country of Origin Description: Mexico
• Panduit Color Code: Gray
• Tongue Type: Standard
• Gross Volume UOM: CU
• UOM EA Pk: PK
• Parts Available: N
• Tongue Width (In.): 0.55
• Unit Weight: .0216
• Wire Strip Length (In.): 5/8
• Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
• UNSPSC: 39121405
• For Export: Y
• Burndy Die Index No.: 8
• Panduit Die Index No.: P29
• Tongue Width (mm): 14.0
• Angle: Straight
• Clearance: 0.42
• Lowest Level UOM: EA
• Barrel Length In. (mm): 0.53 (13.5)
