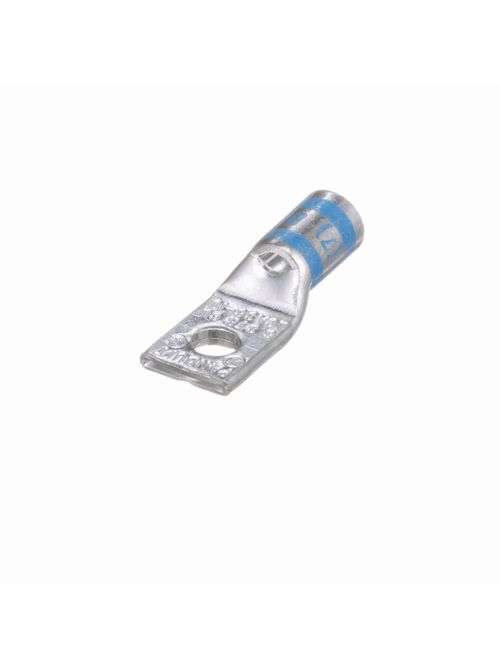

Panduit LCAS6-10-L 1-Hole #6 AWG Copper Compression Lug
Product image thumbnail 0
Product image thumbnail 1
$317.63/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS6-10-L
North Coast Part # 601325

Specifications

  • Length (mm): 30.2
  • Sub Brand: Type LCAS
  • Order Min Qty Each: 1
  • Length (In.): 1.19
  • Length In (mm): 1.19 (30.2)
  • Brand Name: Panduit
  • Order Multiple Quantity Each: 1
  • Material: Tin-Plated Copper

Packaging Details

  • UNSPSC Package Description: PACKAGE
  • Std Package Height MM: 86.36
  • Ship Pkg Qty 1: 1
  • Std Package Length: 3.9
  • GTIN Package: 00074983225217
  • Ship Pack Packaging Description: BOX
  • Std Package Length MM: 99.06
  • Std Package Width: 2.4
  • Sell Pkg Qty 1: 1
  • Std Package Width MM: 60.96
  • UNSPSC Piece Desription: EACH
  • UNSPSC Piece UOM: EA
  • Std Package Height: 3.4
  • UNSPSC Package UOM: PK
  • Sell Pack Packaging Description: BOX
  • Part Number Full UPC: 7498322521
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 50
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.76
  • Standard Carton Weight: 0

Certifications & Approvals

  • UL and CSA Temperature Rating: 90°
  • Other Heavy Metal Content Indicator: N
  • American Bureau Shipping Approved: Yes
  • ARRA Compliant: Y
  • Lead Content Indicator: N
  • UL Listed: 486A-486B File #E52164
  • CSA Certified: C22.2 No. 65-13
  • Buy American Compliant: Y
  • California Prop 65 Cancer: N
  • RoHS Compliancy Status: Compliant
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • MSDS Indicator: N
  • ECCN Commodity Code: EAR99
  • Chromium Content Indicator: N
  • UL and CSA Voltage Rating: 35kV
  • Certificate of Conformity: N
  • Heavy Metal Content Indicator: N
  • CE Compliant: No
  • Restricted Use of Hazardous Substances: N
  • Ozone Depleting Compounds: N
  • CE Marking: No
  • FIFRA Indicator: N
  • Cadmium Content Indicator: N
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • California Prop 65 Reproductive Harm: N

Additional Specifications

  • Copper Conductor Size: #6 AWG
  • Wire Strip Length (mm): 14.3
  • Country of Origin Description: Mexico
  • Master Pack Quantity: 1
  • Barrel Style: Standard
  • Tongue Width (In.): 0.45
  • Tongue Thickness In. (mm): 0.09 (2.3)
  • Master Pack Packaging Description: BOX
  • Tongue Thickness (mm): 2.3
  • Gross Volume UOM: CU
  • Tongue Type: Standard
  • Stud Hole Size (In.): #10
  • UOM EA Pk: PK
  • Panduit Die Index No.: P24
  • Conductor Material: Copper
  • Burndy Die Index No.: 7
  • Corona Relief Taper: No
  • Barrel Type: Short Barrel Length with Inspection Window
  • For Export: Y
  • Unit Volume: .0002083
  • UNSPSC: 39121405
  • Unit Weight: .0152
  • Parts Available: N
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • NMFC Rate: 70
  • Code Conductor Size: #6 AWG Code
  • Panduit Color Code: Blue
  • Tongue Width (mm): 11.4
  • Stud Hole Size (mm): 4.8
  • Product Group Assignment: Power Connectors
  • Barrel Length (mm): 12.2
  • Conductor Size: #6 AWG Code
  • Barrel Length (In.): 0.48
  • T&B Die Index No.: 24
  • Suggested Index Terms: copper compression lug, 1hole, short barrel
  • Clearance: 0.31
  • Tongue Angle: Straight
  • Tongue Thickness: 0.09
  • Wire Strip Length In. (mm): 9/16 (14.3)
  • Hazardous Material Flag: N
  • Country of Origin 2Digit: MX
  • Part Number Series: LCAS
  • Tongue Width In. (mm): 0.45 (11.4)
  • Mercury Content Indicator: N
  • Wire Strip Length (In.): 9/16
  • Barrel Length In. (mm): 0.48 (12.2)
  • Stud Hole Size In. (mm): #10 (4.8)
  • MSDS Doc Name: N
  • Lowest Level UOM: EA
  • Angle: Straight

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Overview

UPC 07498322521
GTiN 00074983225217
Length 1.19 in
Size #6 AWG Code
Color Blue
Type Type LCAS
Barrel Type Short Barrel Length with Inspection Window,Standard Barrel
Material Tin Plated Copper
Stud Size 0.19 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Tongue Type Standard
Tongue Width .45 in
Pkg Qty 50
Family Brand Name Panduit
Conductor Material Copper
Carton Qty 0
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.19 in
Barrel Length .48 in
Tongue Thickness .09 in
Color Coding Blue
Sub Brand Copper Compression Lug
CA Prop65 Warning No
Voltage 35,000 Volt
