PAN LCAS6-56-L CuLug,#6AWG,Short,5/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$325.02/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS6-56-L
North Coast Part # 601328

Specifications

  • Brand Name: Panduit
  • Sub Brand: Type LCAS
  • Length (mm): 35.6
  • Order Multiple Quantity Each: 1
  • Length (In.): 1.40
  • Length In (mm): 1.40 (35.6)
  • Order Min Qty Each: 1
  • Material: Tin-Plated Copper

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Packaging Details

  • UNSPSC Piece UOM: EA
  • Std Package Width MM: 60.96
  • Std Package Height MM: 86.36
  • UNSPSC Package UOM: PK
  • UNSPSC Piece Desription: EACH
  • Sell Pkg Qty 1: 1
  • Std Package Height: 3.4
  • Std Package Length: 3.9
  • GTIN Package: 00074983225231
  • Ship Pkg Qty 1: 1
  • Ship Pack Packaging Description: BOX
  • UNSPSC Package Description: PACKAGE
  • Sell Pack Packaging Description: BOX
  • Std Package Width: 2.4
  • Std Package Length MM: 99.06
  • Part Number Full UPC: 7498322523
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 50
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.79
  • Standard Carton Weight: 0

Certifications & Approvals

  • American Bureau Shipping Approved: Yes
  • FIFRA Indicator: N
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • CE Compliant: No
  • CSA Certified: C22.2 No. 65-13
  • California Prop 65 Cancer: N
  • Other Heavy Metal Content Indicator: N
  • ECCN Commodity Code: EAR99
  • Restricted Use of Hazardous Substances: N
  • UL and CSA Temperature Rating: 90°
  • RoHS Compliancy Status: Compliant
  • Certificate of Conformity: N
  • Lead Content Indicator: N
  • Cadmium Content Indicator: N
  • Heavy Metal Content Indicator: N
  • California Prop 65 Reproductive Harm: N
  • Buy American Compliant: Y
  • UL Listed: 486A-486B File #E52164
  • Chromium Content Indicator: N
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • Ozone Depleting Compounds: N
  • MSDS Indicator: N
  • CE Marking: No
  • UL and CSA Voltage Rating: 35kV
  • ARRA Compliant: Y

Additional Specifications

  • Mercury Content Indicator: N
  • Barrel Style: Standard
  • Panduit Die Index No.: P24
  • Code Conductor Size: #6 AWG Code
  • Tongue Width (mm): 14.2
  • Unit Weight: .0158
  • Conductor Size: #6 AWG Code
  • Country of Origin Description: Mexico
  • Burndy Die Index No.: 7
  • Barrel Type: Short Barrel Length with Inspection Window
  • NMFC Rate: 70
  • Wire Strip Length (In.): 9/16
  • Corona Relief Taper: No
  • Barrel Length (In.): 0.48
  • Tongue Thickness In. (mm): 0.07 (1.8)
  • Barrel Length (mm): 12.2
  • UOM EA Pk: PK
  • Lowest Level UOM: EA
  • Barrel Length In. (mm): 0.48 (12.2)
  • T&B Die Index No.: 24
  • Parts Available: N
  • Unit Volume: .0002083
  • Tongue Width In. (mm): 0.56 (14.2)
  • Stud Hole Size In. (mm): 5/16 (7.9)
  • Wire Strip Length (mm): 14.3
  • Copper Conductor Size: #6 AWG
  • Tongue Thickness: 0.07
  • Product Group Assignment: Power Connectors
  • Part Number Series: LCAS
  • Wire Strip Length In. (mm): 9/16 (14.3)
  • Master Pack Quantity: 1
  • Tongue Thickness (mm): 1.8
  • Country of Origin 2Digit: MX
  • For Export: Y
  • MSDS Doc Name: N
  • Master Pack Packaging Description: BOX
  • Stud Hole Size (In.): 5/16
  • Tongue Type: Standard
  • Suggested Index Terms: copper compression lug, 1hole, short barrel
  • Panduit Color Code: Blue
  • Gross Volume UOM: CU
  • Clearance: 0.42
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Stud Hole Size (mm): 7.9
  • UNSPSC: 39121405
  • Angle: Straight
  • Hazardous Material Flag: N
  • Tongue Width (In.): 0.56
  • Tongue Angle: Straight
  • Conductor Material: Copper

Overview

UPC 07498322523

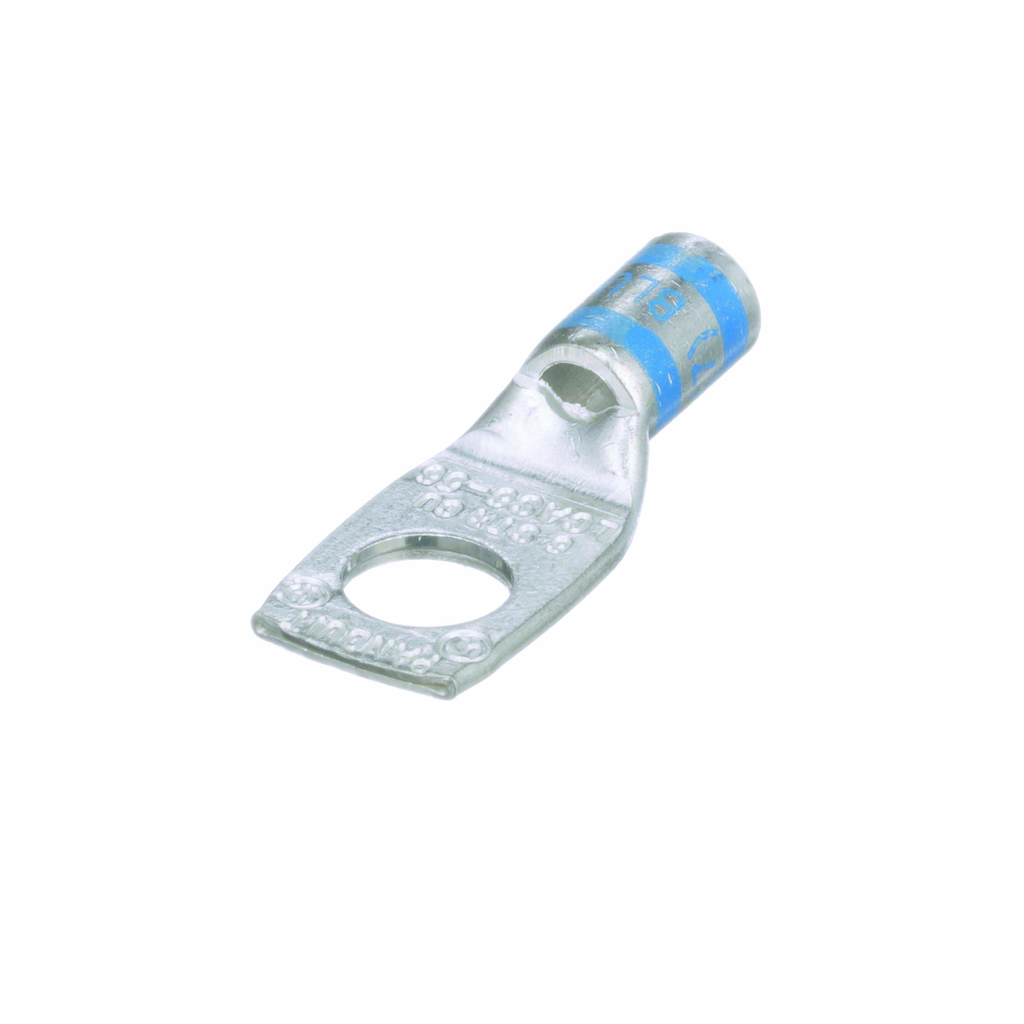

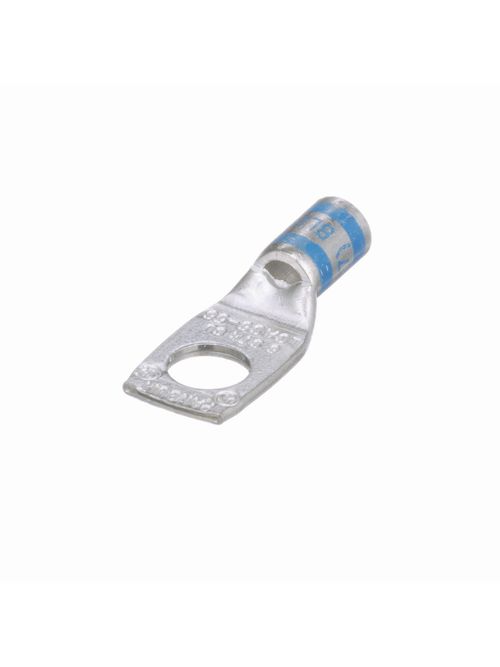

Item Long Description One-hole, short barrel with window lug, #6 AWG wire, 5/16" stud hole.
GTiN 00074983225231
Length 1.4 in
Size #6 AWG Code
Color Blue
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Short Barrel Length with Inspection Window
Material Tin Plated Copper
Stud Size 42,491 IN
Number of Holes 1 Hole
Country of Origin Mexico
Angle Straight
Tongue Type Standard
Tongue Width .56 in
Pkg Qty 50
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.4 in
Barrel Length .48 in
Tongue Thickness .07 in
Color Coding Blue
Sub Brand Pan-Lug
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
Product Type Power Connectors
Stud Hole Size 5/16 in
