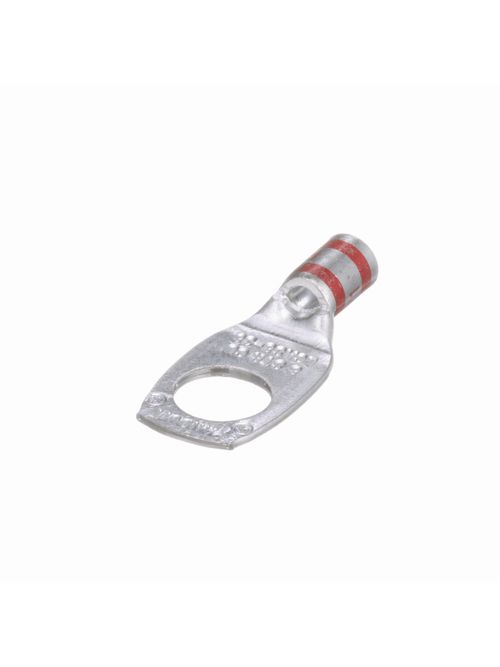

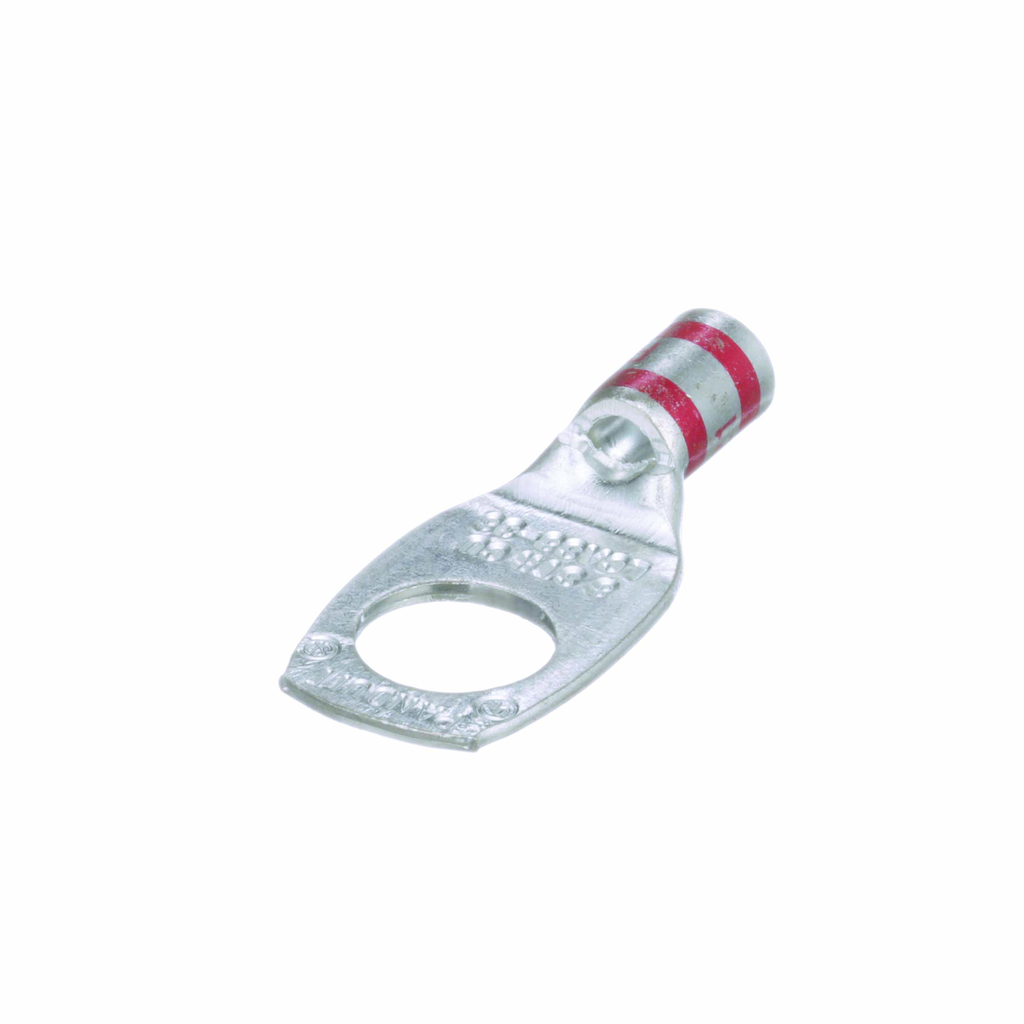

Panduit LCAS8-38-L 1-Hole #8 AWG 3/8 Inch Stud Copper Compression Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$303.00/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS8-38-L
North Coast Part # 601329

Specifications

  • Length (mm): 36.1
  • Sub Brand: Type LCAS
  • Length In (mm): 1.42 (36.1)
  • Order Min Qty Each: 1
  • Order Multiple Quantity Each: 1
  • Material: Tin-Plated Copper
  • Brand Name: Panduit
  • Length (In.): 1.42

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Packaging Details

  • Std Package Length: 3.9
  • Std Package Width: 2.4
  • UNSPSC Package Description: PACKAGE
  • Std Package Width MM: 60.96
  • UNSPSC Piece Desription: EACH
  • Sell Pkg Qty 1: 1
  • GTIN Package: 00074983225200
  • Ship Pack Packaging Description: BOX
  • Sell Pack Packaging Description: BOX
  • UNSPSC Package UOM: PK
  • Std Package Length MM: 99.06
  • UNSPSC Piece UOM: EA
  • Std Package Height: 3.4
  • Std Package Height MM: 86.36
  • Part Number Full UPC: 7498322520
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 50
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.64500000000000002
  • Standard Carton Weight: 0

Certifications & Approvals

  • American Bureau Shipping Approved: Yes
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • Ozone Depleting Compounds: N
  • MSDS Indicator: N
  • RoHS Compliancy Status: Compliant
  • CE Compliant: No
  • ECCN Commodity Code: EAR99
  • Buy American Compliant: Y
  • CE Marking: No
  • UL Listed: 486A-486B File #E52164
  • UL and CSA Voltage Rating: 35kV
  • UL and CSA Temperature Rating: 90°
  • CSA Certified: C22.2 No. 65-13
  • ARRA Compliant: Y
  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)

Additional Specifications

  • UNSPSC: 39121405
  • Stud Hole Size In. (mm): 3/8 (9.5)
  • Wire Strip Length (mm): 12.7
  • Angle: Straight
  • Lowest Level UOM: EA
  • Barrel Type: Short Barrel Length with Inspection Window
  • Corona Relief Taper: No
  • Product Group Assignment: Power Connectors
  • Tongue Type: Standard
  • Barrel Length (mm): 10.7
  • Tongue Width (In.): 0.60
  • Conductor Material: Copper
  • Unit Volume: .0002083
  • Burndy Die Index No.: 49
  • Stud Hole Size (mm): 9.5
  • Gross Volume UOM: CU
  • Stud Hole Size (In.): 3/8
  • Code Conductor Size: #8 AWG Code
  • Panduit Color Code: Red
  • Tongue Thickness: 0.05
  • Barrel Length In. (mm): 0.42 (10.7)
  • Tongue Width In. (mm): 0.60 (15.2)
  • Country of Origin Description: Mexico
  • Tongue Angle: Straight
  • Barrel Length (In.): 0.42
  • Part Number Series: LCAS
  • Panduit Die Index No.: P21
  • Tongue Thickness In. (mm): 0.05 (1.3)
  • Wire Strip Length (In.): 1/2
  • Barrel Style: Standard
  • UOM EA Pk: PK
  • NMFC Rate: 70
  • Wire Strip Length In. (mm): 1/2 (12.7)
  • Clearance: 0.48
  • Conductor Size: #8 AWG Code
  • Master Pack Packaging Description: BOX
  • Copper Conductor Size: #8 AWG
  • Master Pack Quantity: 1
  • Hazardous Material Flag: N
  • Tongue Thickness (mm): 1.3
  • Tongue Width (mm): 15.2
  • Unit Weight: .0129
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • T&B Die Index No.: 21
  • Country of Origin 2Digit: MX

Overview

UPC 07498322520
Item Long Description One-hole, short barrel with window lug, #8 AWG wire, 3/8" stud hole.
GTiN 00074983225200
Length 1.42 in
Size #8 AWG Code
Color Red
Type Type LCAS
Barrel Type Short Barrel Length with Inspection Window
Material Tin Plated Copper
Stud Size 0.375 in
Number of Holes 1 Hole
Country of Origin Mexico
Angle Straight
Tongue Type Standard
Tongue Width .6 in
Pkg Qty 50
Family Brand Name Panduit
Conductor Material Copper
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.42 in
Barrel Length .42 in
Tongue Thickness .05 in
Color Coding Red
Sub Brand Copper Compression Lug
CA Prop65 Warning No
Voltage 35,000 Volt
Product Type Power Connectors
Stud Hole Size 3 in
