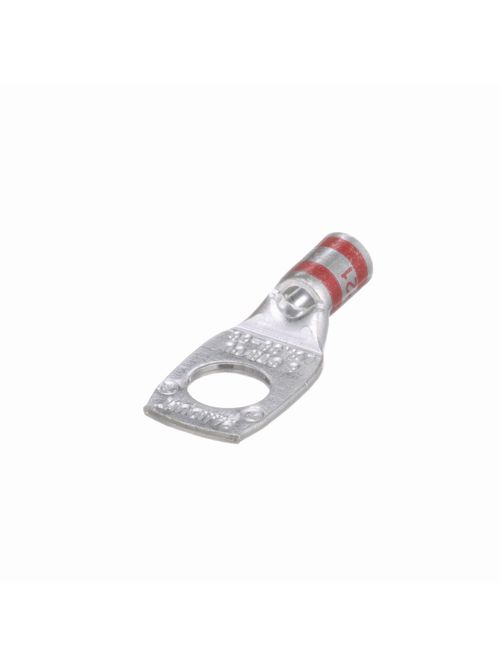

PAN LCAS8-56-L CuLug,#8AWG,Short,5/
Product image thumbnail 0
Product image thumbnail 1
$296.11/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAS8-56-L
North Coast Part # 601330

Specifications

  • Length In (mm): 1.32 (33.5)
  • Brand Name: Panduit
  • Sub Brand: Type LCAS
  • Material: Tin-Plated Copper
  • Order Multiple Quantity Each: 1
  • Length (mm): 33.5
  • Order Min Qty Each: 1
  • Length (In.): 1.32

Packaging Details

  • Std Package Width: 2.4
  • Ship Pkg Qty 1: 1
  • Std Package Height: 3.4
  • Ship Pack Packaging Description: BOX
  • UNSPSC Package Description: PACKAGE
  • GTIN Package: 00074983225194
  • Std Package Length MM: 99.06
  • Sell Pack Packaging Description: BOX
  • Sell Pkg Qty 1: 1
  • UNSPSC Package UOM: PK
  • UNSPSC Piece Desription: EACH
  • Std Package Height MM: 86.36
  • UNSPSC Piece UOM: EA
  • Std Package Length: 3.9
  • Std Package Width MM: 60.96
  • Part Number Full UPC: 7498322519
  • Minimum Order Quantity: 1
  • Standard Package Quantity: 50
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 0.625
  • Standard Carton Weight: 0

Certifications & Approvals

  • Tin-Plating Meets ASTM B545-97, Class C: 320µ in (8µ m)
  • CE Marking: No
  • Other Heavy Metal Content Indicator: N
  • CE Compliant: No
  • Certificate of Conformity: N
  • Cadmium Content Indicator: N
  • UL and CSA Voltage Rating: 35kV
  • ARRA Compliant: Y
  • Chromium Content Indicator: N
  • Buy American Compliant: Y
  • California Prop 65 Cancer: N
  • California Prop 65 Reproductive Harm: N
  • RoHS Compliancy Status: Compliant
  • Heavy Metal Content Indicator: N
  • CSA Certified: C22.2 No. 65-13
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Ozone Depleting Compounds: N
  • Tested by Telcordia-Meets NEBS Level 3: Yes
  • UL and CSA Temperature Rating: 90°
  • UL Listed: 486A-486B File #E52164
  • MSDS Indicator: N
  • ECCN Commodity Code: EAR99
  • FIFRA Indicator: N
  • American Bureau Shipping Approved: Yes

Additional Specifications

  • Code Conductor Size: #8 AWG Code
  • Master Pack Quantity: 1
  • Lowest Level UOM: EA
  • Burndy Die Index No.: 49
  • Barrel Length In. (mm): 0.42 (10.7)
  • Stud Hole Size (mm): 7.9
  • Mercury Content Indicator: N
  • Suggested Index Terms: copper compression lug, 1hole, short barrel
  • Panduit Die Index No.: P21
  • Wire Strip Length (mm): 12.7
  • Conductor Size: #8 AWG Code
  • Tongue Width In. (mm): 0.56 (14.2)
  • Tongue Type: Standard
  • Product Group Assignment: Power Connectors
  • Tongue Angle: Straight
  • Tongue Thickness (mm): 1.3
  • T&B Die Index No.: 21
  • Clearance: 0.42
  • Unit Volume: .0002083
  • Wire Strip Length In. (mm): 1/2 (12.7)
  • Angle: Straight
  • Master Pack Packaging Description: BOX
  • Stud Hole Size In. (mm): 5/16 (7.9)
  • Stud Hole Size (In.): 5/16
  • Corona Relief Taper: No
  • Tongue Width (mm): 14.2
  • Wire Strip Length (In.): 1/2
  • Barrel Type: Short Barrel Length with Inspection Window
  • Barrel Style: Standard
  • Gross Volume UOM: CU
  • Copper Conductor Size: #8 AWG
  • Country of Origin Description: Mexico
  • UNSPSC: 39121405
  • Unit Weight: .0125
  • Tongue Thickness In. (mm): 0.05 (1.3)
  • Country of Origin 2Digit: MX
  • Conductor Material: Copper
  • NMFC Rate: 70
  • Part Number Series: LCAS
  • For Export: Y
  • Tongue Width (In.): 0.56
  • Technical Information: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Hazardous Material Flag: N
  • Panduit Color Code: Red
  • MSDS Doc Name: N
  • Barrel Length (In.): 0.42
  • Parts Available: N
  • UOM EA Pk: PK
  • Barrel Length (mm): 10.7
  • Tongue Thickness: 0.05

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

System Bundle

Overview

UPC 07498322519
GTiN 00074983225194
Length 1.32 in
Size #8 AWG Code
Color Red
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Short Barrel Length with Inspection Window,Standard Barrel
Material Tin Plated Copper
Stud Size 0.3125 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Tongue Type Standard
Tongue Width .56 in
Pkg Qty 50
Family Brand Name Panduit
Conductor Material Copper
Carton Qty 0
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Overall Length 1.32 in
Barrel Length .42 in
Tongue Thickness .05 in
Color Coding Red
Sub Brand Copper Compression Lug
CA Prop65 Warning No
Voltage 35,000 Volt
UNSPSC 39121405
