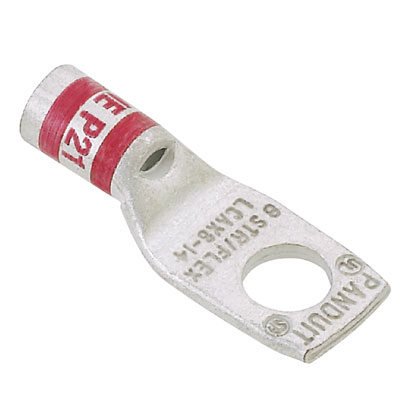

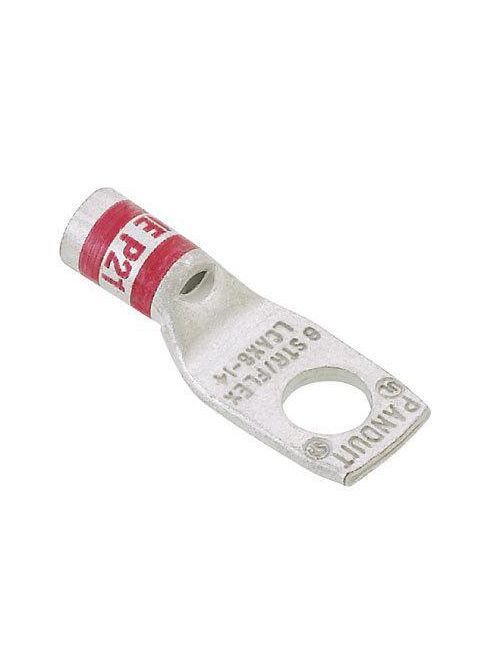

Panduit LCAX1/0-14-X 1/0 AWG Copper Standard Barrel 1-Hole Compression Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$967.14/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAX1/0-14-X
North Coast Part # 762995

Specifications

  • Product Segment: IEI
  • Outer Diameter (In.): 0.58
  • Inside Diameter (In.): 0.45
  • Inside Diameter (mm): 11.43
  • Outer Diameter (mm): 14.73
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 1 Stud Hole Lug
  • Base Material: Copper
  • Class I Copper Flex Conductor Size (AWG): 1/0
  • Class K Copper Flex Conductor Size (AWG): 1/0
  • DLO Copper Flex Conductor Size (AWG): 1/0
  • Sub Brand: Pan-Lug™
  • Class M Copper Flex Conductor Size (AWG): 1/0
  • Copper Code Conductor Size (AWG): 1/0
  • Class G Copper Flex Conductor Size (AWG): 1/0
  • Class H Copper Flex Conductor Size (AWG): 1/0
  • Stud Hole Size (In.): 1/4
  • Stud Hole Size (mm): 6.4
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (mm): 18.3
  • Barrel Length (In.): 0.72
  • Tongue Type: Standard
  • Tongue Width (In.): 0.85
  • Tongue Width (mm): 21.6
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.13
  • Tongue Thickness (mm): 3.3
  • Overall Length (In.): 1.82
  • Overall Length (mm): 46.2
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Pink
  • Panduit Die Index Number: P42
  • T & B Die Index Number: 12
  • Burndy Die Index Number: 12
  • Wire Strip Length (mm): 19.1
  • Wire Strip Length (In.): 3/4

Packaging Details

  • UPC: 07498343521
  • GTIN Package: 00074983435210
  • Standard Package Volume Ft3: 0.0184
  • Standard Package Weight Pounds: 0.8330
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 4.75
  • Std Package Length MM: 120.65
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0184
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 120.65
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983435210
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498343521
Item Long Description The LCAX1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
GTiN 00074983435210
Size 1/0 AWG Class B, C, G, H, I, K, M and DLO
Color Pink
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.25 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Pkg Qty 10
Family Brand Name Panduit
Overall Length 1.82 in
Barrel Length 0.72 in
Color Coding Pink
Sub Brand Copper Compression Lug - Flex
CA Prop65 Warning No
Voltage 35,000 Volt
