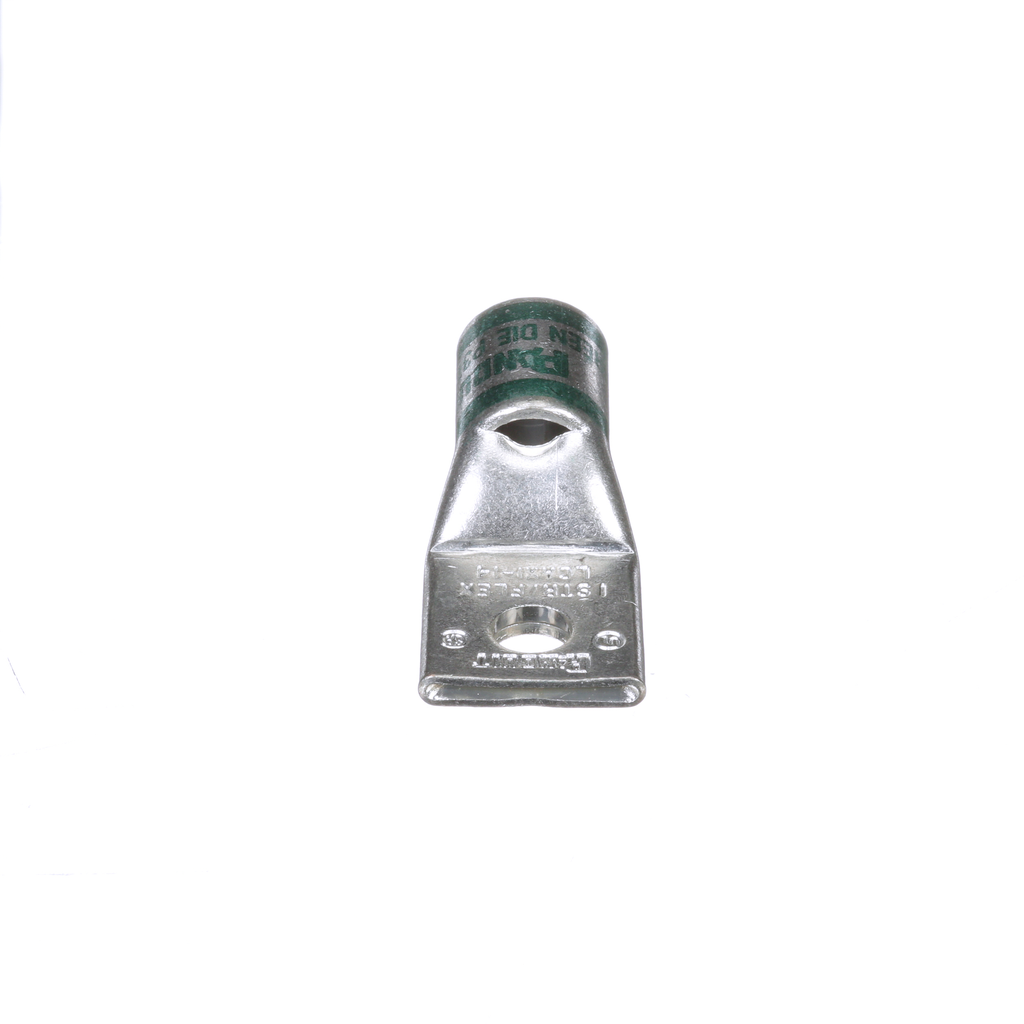

Panduit LCAX1-14-X 1 AWG 1-Hole Flex Copper Compression Lug

Specifications

• UNSPSC: 39121405
• Product Segment: IEI
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Sub Brand: Pan-Lug
• Stud Hole Size (mm): 6.4
• Stud Hole Size (In.): 42.826
• Barrel Type: Standard Barrel Length with Inspection Window
• Barrel Length (In.): 0.66
• Barrel Length (mm): 16.8
• Tongue Type: Standard Tongue Width
• Tongue Width (In.): 0.76
• Tongue Width (mm): 19.3
• Tongue Angle: Straight
• Tongue Thickness (In.): 0.12
• Tongue Thickness (mm): 3
• Overall Length (mm): 42.4
• Overall Length (In.): 1.67
• Color Code: Green
• Panduit Die Index Number: P37
• Burndy Die Index Number: 11
• Wire Strip Length (In.): 42,828
• Wire Strip Length (mm): 19.1

Packaging Details

• UPC: 07498343509
• GTIN Package: 00074983435098
• Standard Package Volume Ft3: 0.0184
• Standard Package Weight Pounds: 0.7140
• Std Package Height In: 3.45
• Std Package Height MM: 87.63
• Std Package Length In: 4.75
• Std Package Length MM: 120.65
• Std Package Width In: 3.45
• Std Package Width MM: 87.63
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• Standard Carton Volume Ft3: 0.0184
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 120.65
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983435098
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
