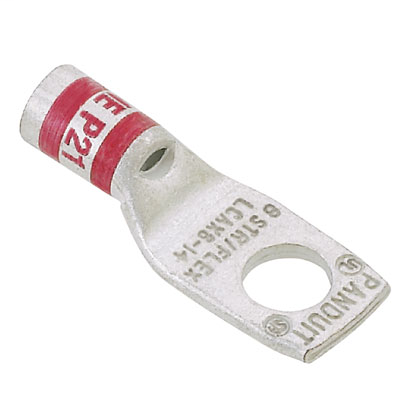

PAN LCAX6-38-L STDFlexLug,6AWG,.38i

Specifications

• Product Segment: IEI
• UNSPSC: 39121405
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Sub Brand: Pan-Lug
• Stud Hole Size (mm): 9.5
• Stud Hole Size (In.): 42.95
• Barrel Type: Standard Barrel Length with Inspection Window
• Barrel Length (In.): 0.48
• Barrel Length (mm): 12.2
• Tongue Type: Standard Tongue Width
• Tongue Width (In.): 0.62
• Tongue Width (mm): 15.7
• Tongue Angle: Straight
• Tongue Thickness (In.): 0.06
• Tongue Thickness (mm): 1.5
• Overall Length (In.): 1.5
• Overall Length (mm): 38.1
• Color Code: Blue
• Panduit Die Index Number: P24
• Burndy Die Index Number: 7
• Wire Strip Length (In.): 42,614
• Wire Strip Length (mm): 14.3

Packaging Details

• UPC: 07498343381
• GTIN Package: 00074983433810
• Standard Package Volume Ft3: 0.0184
• Standard Package Weight Pounds: 0.9900
• Std Package Height In: 3.55
• Std Package Height MM: 90.17
• Std Package Length In: 4.7
• Std Package Length MM: 119.38
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• Standard Carton Volume Ft3: 0.0184
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 119.38
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983433810
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
