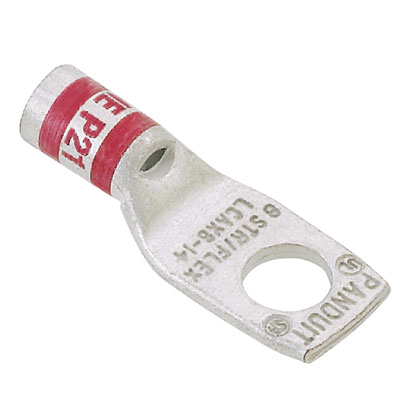

PAN LCAX8-10-L CuLugF,#8AWG,#10Stud
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$284.84/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCAX8-10-L
North Coast Part # 598392

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121405
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Sub Brand: Pan-Lug
  • Stud Hole Size (mm): 4.8
  • Stud Hole Size (In.): 0.19
  • Barrel Type: Standard Barrel Length with Inspection Window
  • Barrel Length (In.): 0.42
  • Barrel Length (mm): 10.7
  • Tongue Type: Standard Tongue Width
  • Tongue Width (In.): 0.41
  • Tongue Width (mm): 10.4
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.08
  • Tongue Thickness (mm): 2
  • Overall Length (mm): 28.2
  • Overall Length (In.): 1.11
  • Color Code: Red
  • Panduit Die Index Number: P21
  • Burndy Die Index Number: 49
  • Wire Strip Length (In.): 42,767
  • Wire Strip Length (mm): 12.7

Packaging Details

  • UPC: 07498343310
  • GTIN Package: 00074983433100
  • Standard Package Volume Ft3: 0.0184
  • Standard Package Weight Pounds: 0.7150
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 4.8
  • Std Package Length MM: 121.92
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0184
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 121.92
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983433100
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498343310
GTiN 00074983433100
Size #8 AWG Class B, C, G, H, I, K, M and DLO
Color Red
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.19 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 0
Overall Length 1.11 in
Barrel Length 0.42 in
Color Coding Red
Sub Brand Copper Compression Lug - Flex
Voltage null
UNSPSC 39121405
