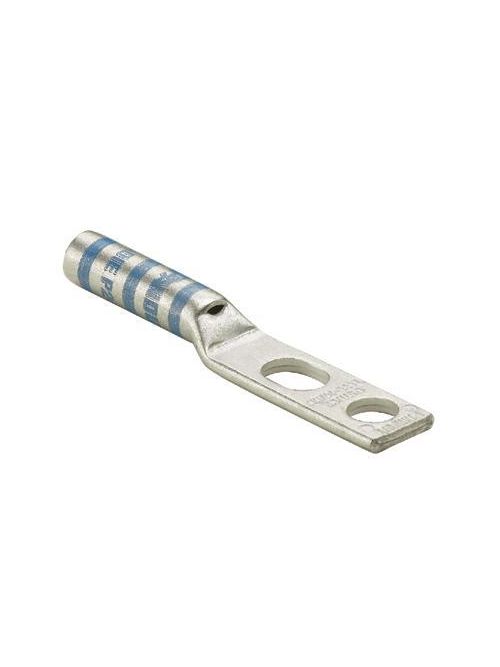

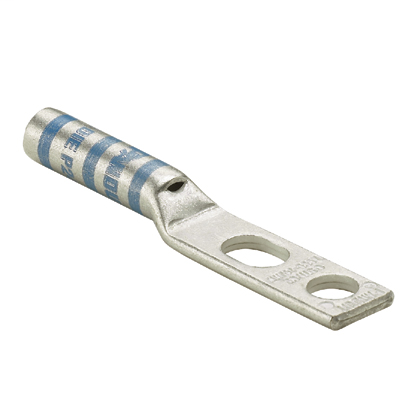

PAN LCC10-14JAW-L Cu Lug,#10,Long,1

Specifications

• UNSPSC: 39121405
• Product Segment: IEI
• Copper Conductor Size (AWG): #14
• Copper Conductor Size (kcmil): 4.11
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Sub Brand: Pan-Lug
• Stud Hole Size (mm): 6.4
• Stud Hole Size (In.): 42.826
• Stud Hole Spacing (mm): 16
• Stud Hole Spacing (In.): 0.63
• Barrel Type: Long Barrel Length with Inspection Window
• Barrel Length (In.): 0.53
• Barrel Length (mm): 13.5
• Tongue Type: Standard
• Tongue Width (mm): 10.7
• Tongue Width (In.): 0.42
• Tongue Thickness (mm): 1.3
• Tongue Thickness (In.): 0.05
• Overall Length (mm): 49
• Overall Length (In.): 1.93
• Wire Strip Length (mm): 14.3
• Wire Strip Length (In.): 42,614

Packaging Details

• UPC: 07498364834
• GTIN Package: 00074983648344
• Standard Package Volume Ft3: 0.0105
• Standard Package Weight Pounds: 0.5350
• Std Package Height In: 2.1
• Std Package Height MM: 53.34
• Std Package Length In: 4.15
• Std Package Length MM: 105.41
• Std Package Width In: 2.15
• Std Package Width MM: 54.61
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• Standard Carton Volume Ft3: 0.0105
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 105.41
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983648344
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
