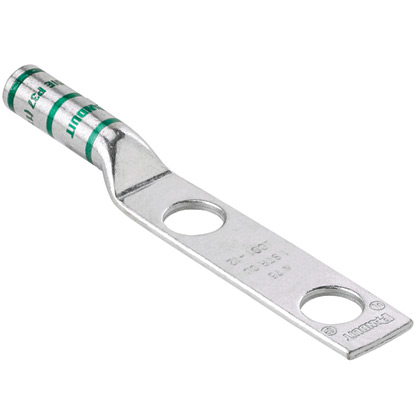

Panduit LCC750-12-6 2-Hole 750 MCM 1/2 Inch Stud Hole 1.75 Inch Hole Spacing Copper Compression Lug

Specifications

• Product Segment: IEI
• Inside Diameter (In.): 1.03
• Outer Diameter (In.): 1.3
• Outer Diameter (mm): 33.02
• Inside Diameter (mm): 26.16
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Lug Type: 2 Stud Hole Lug
• Base Material: Copper
• Copper Code Conductor Size (kcmil): 750
• Sub Brand: Pan-Lug™
• Stud Hole Size (In.): 1/2
• Stud Hole Size (mm): 12.7
• Stud Hole Spacing (In.): 1.75
• Stud Hole Spacing (mm): 44.5
• Barrel Type: Long Barrel without Inspection Window
• Barrel Length (mm): 72.9
• Barrel Length (In.): 2.87
• Tongue Type: Standard
• Tongue Width (In.): 1.89
• Tongue Width (mm): 48
• Tongue Angle: Straight
• Tongue Thickness (mm): 6.6
• Tongue Thickness (In.): 0.26
• Overall Length (mm): 178.8
• Overall Length (In.): 7.04
• Finish/Coating: Tin-Plated
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• UL Temperature Rating (°C): 90
• Maximum Voltage (kV): 35
• Color Code: Black
• Panduit Die Index Number: P106
• Burndy Die Index Number: 24
• T & B Die Index Number: 24
• Wire Strip Length (In.): 2-15/16
• Wire Strip Length (mm): 74.6

Packaging Details

• UPC: 07498390275
• GTIN Package: 00074983902750
• Standard Package Volume Ft3: 0.1047
• Standard Package Weight Pounds: 6.5256
• Std Package Height In: 4.25
• Std Package Height MM: 107.95
• Std Package Length In: 10.7
• Std Package Length MM: 271.78
• Std Package Width In: 4.3
• Std Package Width MM: 109.22
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 6
• Standard Carton Volume Ft3: 0.1047
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 271.78
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983902750
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
