PAN LCCN750-12W-6 CuLug,2Hole,750kc
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$9,730.30/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCCN750-12W-6
North Coast Part # 602523

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121405
  • Copper Conductor Size (kcmil): 750
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Sub Brand: Pan-Lug
  • Stud Hole Size (In.): 42.767
  • Stud Hole Size (mm): 12.7
  • Stud Hole Spacing (In.): 1.75
  • Stud Hole Spacing (mm): 44.5
  • Barrel Type: Long Barrel Length with Inspection Window
  • Barrel Length (mm): 73.2
  • Barrel Length (In.): 2.88
  • Tongue Type: Narrow
  • Tongue Width (mm): 33
  • Tongue Width (In.): 1.3
  • Tongue Thickness (mm): 7.1
  • Tongue Thickness (In.): 0.28
  • Overall Length (In.): 6.66
  • Overall Length (mm): 169.2
  • Color Code: Black
  • Panduit Die Index Number: P106
  • Burndy Die Index Number: 24
  • Wire Strip Length (In.): 2.94
  • Wire Strip Length (mm): 74.6

Packaging Details

  • UPC: 07498344995
  • GTIN Package: 00074983449958
  • Standard Package Volume Ft3: 0.0506
  • Standard Package Weight Pounds: 5.5000
  • Std Package Height In: 3.3
  • Std Package Height MM: 83.82
  • Std Package Length In: 7.8
  • Std Package Length MM: 198.12
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • Standard Carton Volume Ft3: 0.0506
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 198.12
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983449958
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498344995

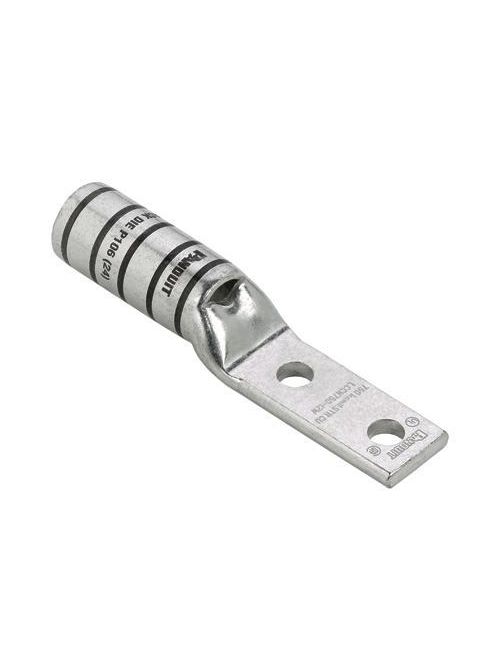

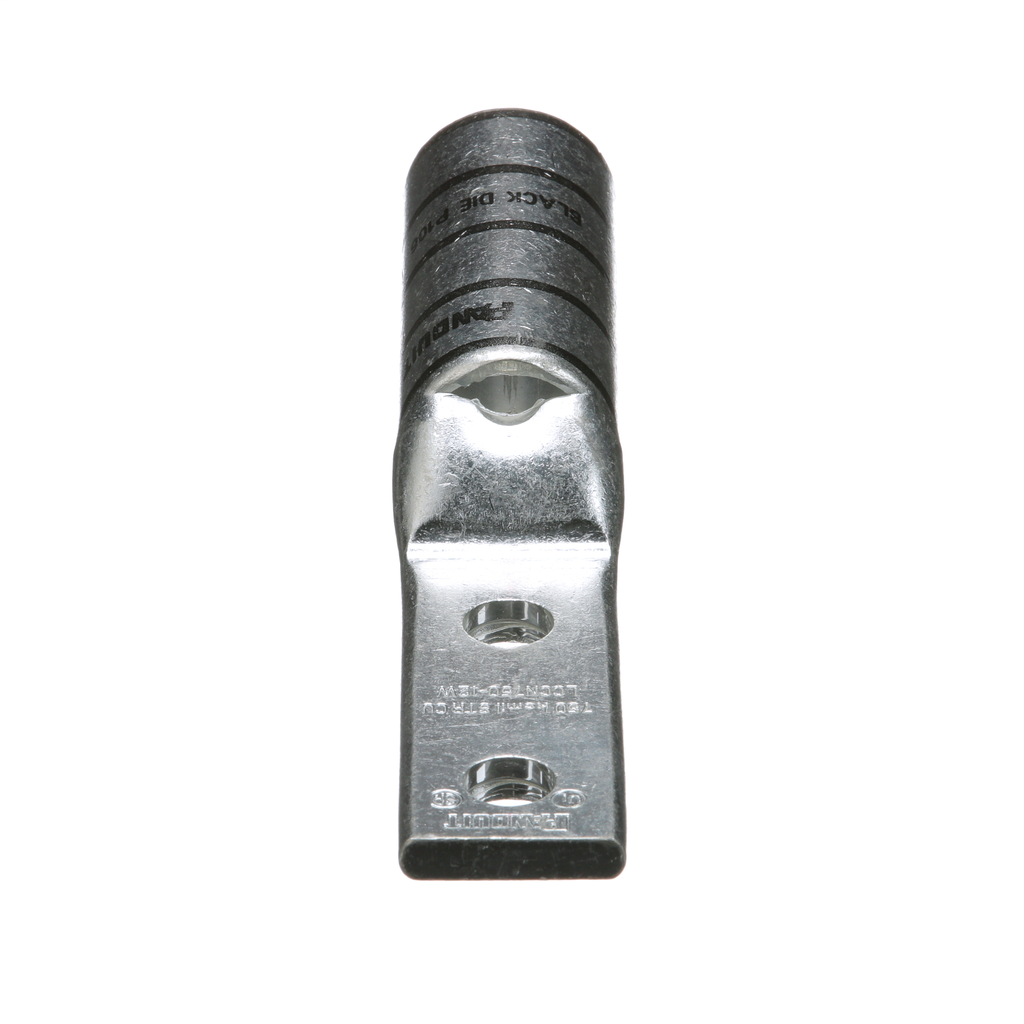

Item Long Description Two-hole, long barrel lug with window, narrow tongue lug, 750 kcmil cable, 1/2 stud hole, 1.75 hole spacing.
GTiN 00074983449958
Size 750 kcmil Code
Color Black
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Long Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.5 in
Number of Holes 2 Hole
Country of Origin MX
Angle Straight
Pkg Qty 6
Family Brand Name Panduit
Overall Length 6.66 in
Barrel Length 2.88 in
Sub Brand Copper Compression Lug
Voltage 35,000 Volt
UNSPSC 39121405
