PAN LCCX2-38D-E Panduit LCCX2-38D-E
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,461.54/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCCX2-38D-E
North Coast Part # 602524

Specifications

  • Product Segment: IEI
  • Outer Diameter (In.): 0.47
  • Inside Diameter (mm): 9.14
  • Outer Diameter (mm): 11.93
  • Inside Diameter (In.): 0.36
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 2 Stud Hole Lug
  • Base Material: Copper
  • Copper Code Conductor Size (AWG): 2
  • DLO Copper Flex Conductor Size (AWG): 2
  • Sub Brand: Pan-Lug™
  • Stud Hole Size (In.): 3/8
  • Stud Hole Size (mm): 9.5
  • Stud Hole Spacing (mm): 25.4
  • Stud Hole Spacing (In.): 1
  • Barrel Type: Long Barrel with Inspection Window
  • Barrel Length (In.): 1.36
  • Barrel Length (mm): 34.5
  • Tongue Type: Standard
  • Tongue Width (In.): 0.7
  • Tongue Width (mm): 17.8
  • Tongue Angle: Straight
  • Tongue Thickness (mm): 2.8
  • Tongue Thickness (In.): 0.11
  • Overall Length (mm): 87.9
  • Overall Length (In.): 3.46
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Brown
  • Panduit Die Index Number: P33
  • Burndy Die Index Number: 10
  • T & B Die Index Number: 10
  • Wire Strip Length (In.): 1-7/16
  • Wire Strip Length (mm): 36.32

Packaging Details

  • UPC: 07498342557
  • GTIN Package: 00074983425570
  • Standard Package Volume Ft3: 0.0395
  • Standard Package Weight Pounds: 1.5800
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 5.85
  • Std Package Length MM: 148.59
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 20
  • Standard Carton Volume Ft3: 0.0395
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 148.59
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983425570
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498342557

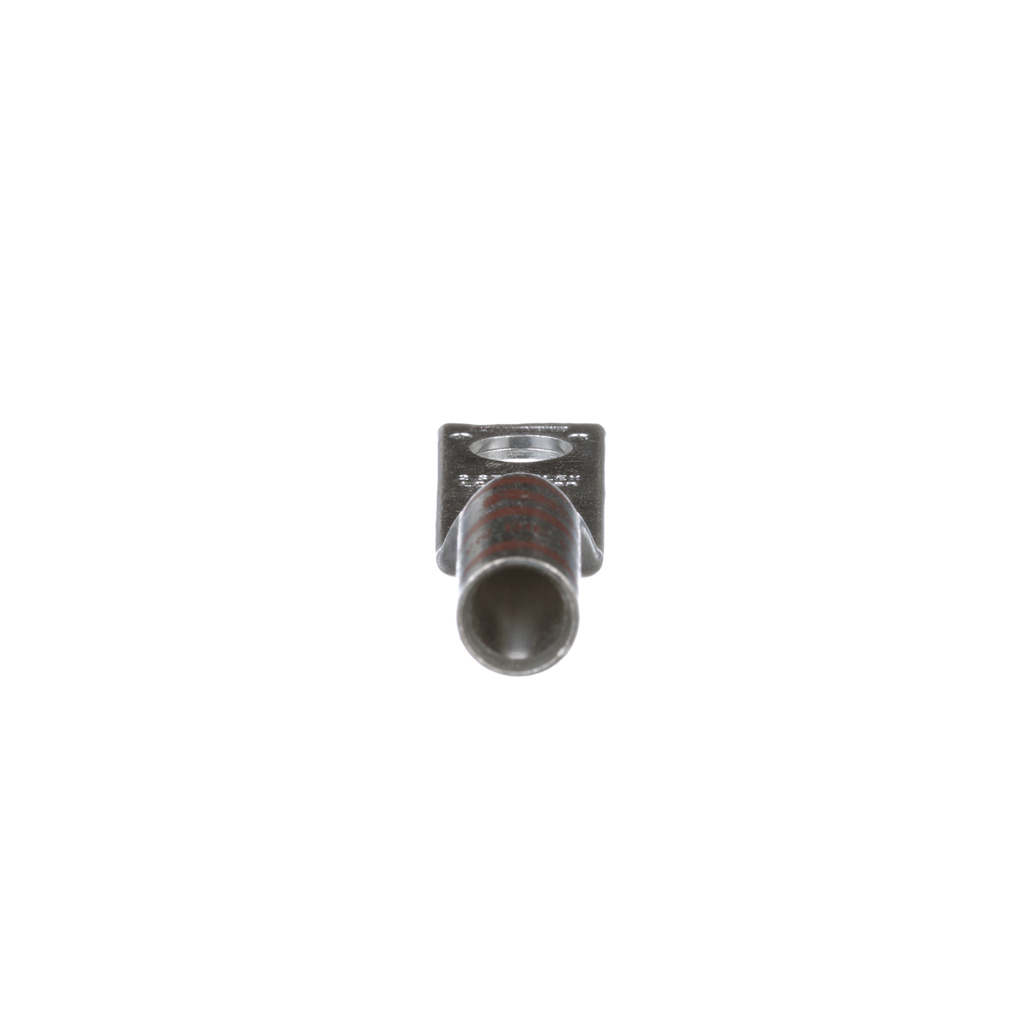

Item Long Description The LCCX2-38D-E Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
GTiN 00074983425570
Size #2 AWG Class B, C, G, H, I, K, M and DLO
Color Brown
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Long Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 42950.00 IN
Number of Holes 2 Hole
Country of Origin MX
Angle Straight
Pkg Qty 20
Family Brand Name Panduit
Overall Length 3.46 in
Barrel Length 1.36 in
Color Coding Brown
Sub Brand Pan-Lug
CA Prop65 Warning No
Voltage 35,000 Volt
