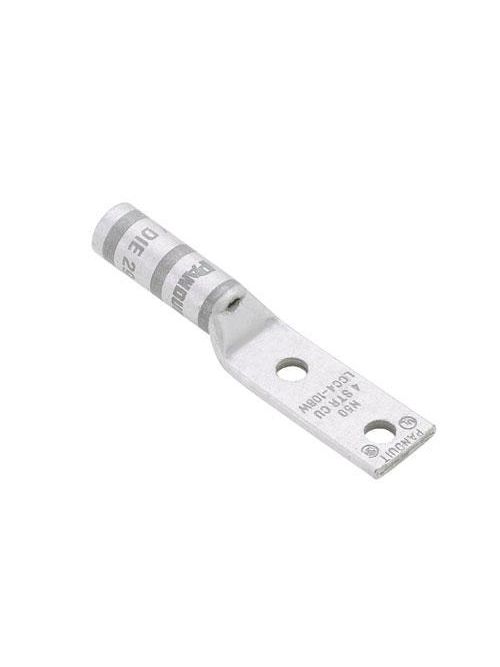

PAN LCCX350-12-6 Panduit LCCX350-12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$4,604.72/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCCX350-12-6
North Coast Part # 602525

Specifications

  • Product Segment: IEI
  • Inside Diameter (mm): 21.33
  • Outer Diameter (mm): 26.92
  • Inside Diameter (In.): 0.84
  • Outer Diameter (In.): 1.06
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 2 Stud Hole Lug
  • Base Material: Copper
  • Sub Brand: Pan-Lug™
  • DLO Copper Flex Conductor Size (kcmil): 373.7
  • Stud Hole Size (mm): 12.7
  • Stud Hole Size (In.): 1/2
  • Stud Hole Spacing (mm): 44.5
  • Stud Hole Spacing (In.): 1.75
  • Barrel Type: Long Barrel with Inspection Window
  • Barrel Length (In.): 2.5
  • Barrel Length (mm): 63.5
  • Tongue Type: Standard
  • Tongue Width (mm): 39.1
  • Tongue Width (In.): 1.54
  • Tongue Angle: Straight
  • Tongue Thickness (mm): 5.6
  • Tongue Thickness (In.): 0.22
  • Overall Length (mm): 155.7
  • Overall Length (In.): 6.13
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Blue
  • Panduit Die Index Number: P76
  • T & B Die Index Number: 19
  • Burndy Die Index Number: 19
  • Wire Strip Length (mm): 65.1
  • Wire Strip Length (In.): 2-9/16

Packaging Details

  • UPC: 07498342625
  • GTIN Package: 00074983426256
  • Standard Package Volume Ft3: 0.0528
  • Standard Package Weight Pounds: 3.9648
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 7.65
  • Std Package Length MM: 194.31
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • Standard Carton Volume Ft3: 0.0528
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 194.31
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983426256
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 5,040
  • Pallet Volume: 0.000000
  • Pallet Weight: 3,330.4320

Overview

GTiN 00074983426256
Size 350 kcmil Class G, H, I, K, M and 373.7 kcmil DLO
Color Blue
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Long Barrel Length With Inspection Window
Material Copper
Stud Size 42767.00 IN
Number of Holes 2 Hole
Country of Origin MX
Angle Straight
Pkg Qty 6
Family Brand Name Panduit
Overall Length 6.13 in
Barrel Length 2.5 in
Color Coding Blue
Sub Brand Pan-Lug
CA Prop65 Warning No
Product UPC 07498342625
Voltage 35,000 Volt
