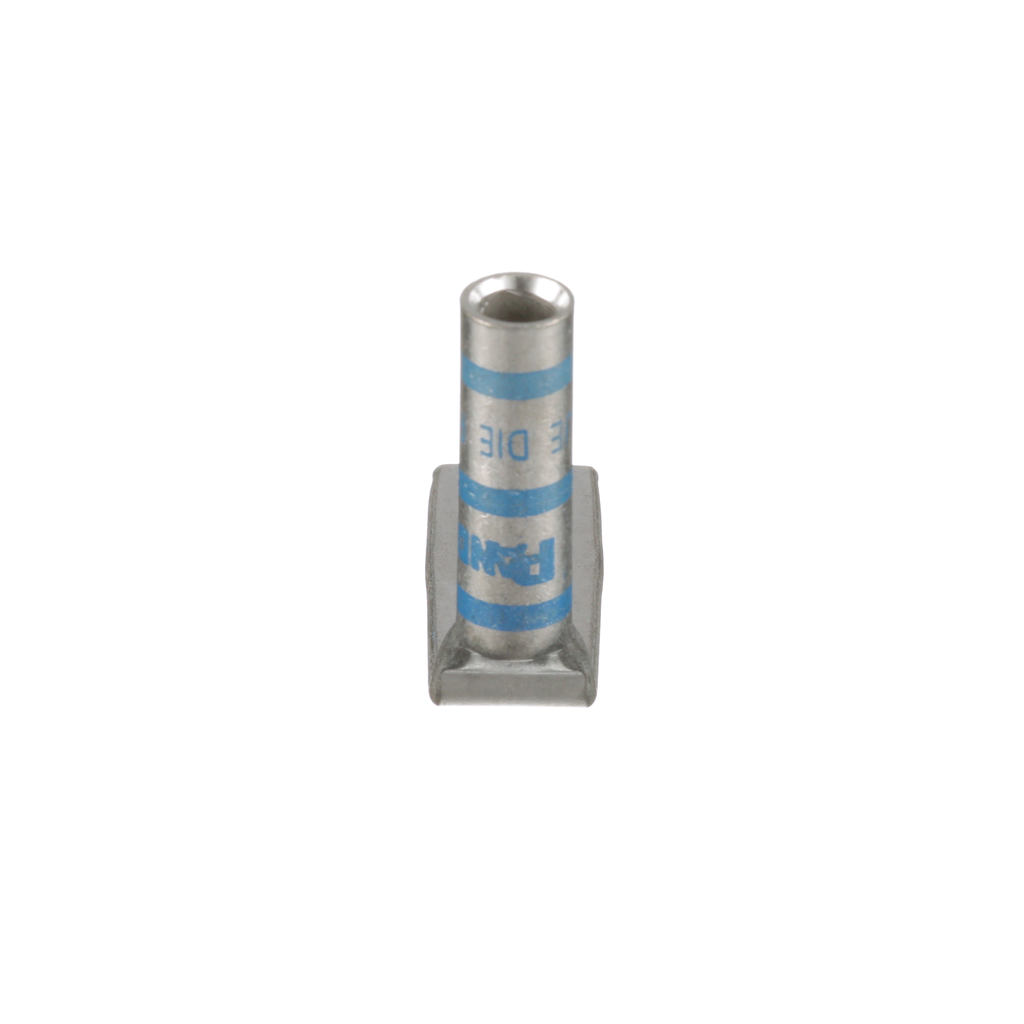

PAN LCCX6-14AF-L LGFlexLug,6AWG,.63
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,367.88/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCCX6-14AF-L
North Coast Part # 666016

Specifications

  • UNSPSC: 39121405
  • Product Segment: IEI
  • Product Type: Compression Connectors - Lugs
  • Sub Brand: Pan-Lug
  • Stud Hole Size (In.): 42.826
  • Stud Hole Size (mm): 6.4
  • Stud Hole Spacing (mm): 16
  • Stud Hole Spacing (In.): 0.63
  • Barrel Type: Long Barrel Length with Inspection Window
  • Barrel Length (In.): 1.07
  • Barrel Length (mm): 27.2
  • Tongue Type: Standard
  • Tongue Width (In.): 0.48
  • Tongue Width (mm): 12.2
  • Tongue Thickness (In.): 0.08
  • Tongue Thickness (mm): 2
  • Overall Length (mm): 42.2
  • Overall Length (In.): 1.66
  • Color Code: Blue
  • Panduit Die Index Number: P24
  • Burndy Die Index Number: 7
  • Wire Strip Length (In.): 1.13
  • Wire Strip Length (mm): 29

Packaging Details

  • UPC: 07498342537
  • GTIN Package: 00074983425372
  • Standard Package Volume Ft3: 0.0305
  • Standard Package Weight Pounds: 1.4500
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 4.75
  • Std Package Length MM: 120.65
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0305
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 120.65
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983425372
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498342537
Item Long Description Two-hole, flex lug, long barrel, #6 AWG wire, 1/4 stud hole, .63 hole spacing, 90 angle tongue.
GTiN 00074983425372
Size #6 AWG Class B, C, G, H, I, K, M and DLO
Color Blue
Type Compression Connectors - Lugs
Barrel Type Long Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Country of Origin MX
Angle 90
Pkg Qty 50
Family Brand Name Panduit
Overall Length 1.66 in
Barrel Length 1.07 in
Color Coding Blue
Sub Brand Copper Compression Lug - Flex
Voltage 35,000 Volt
UNSPSC 39121405
