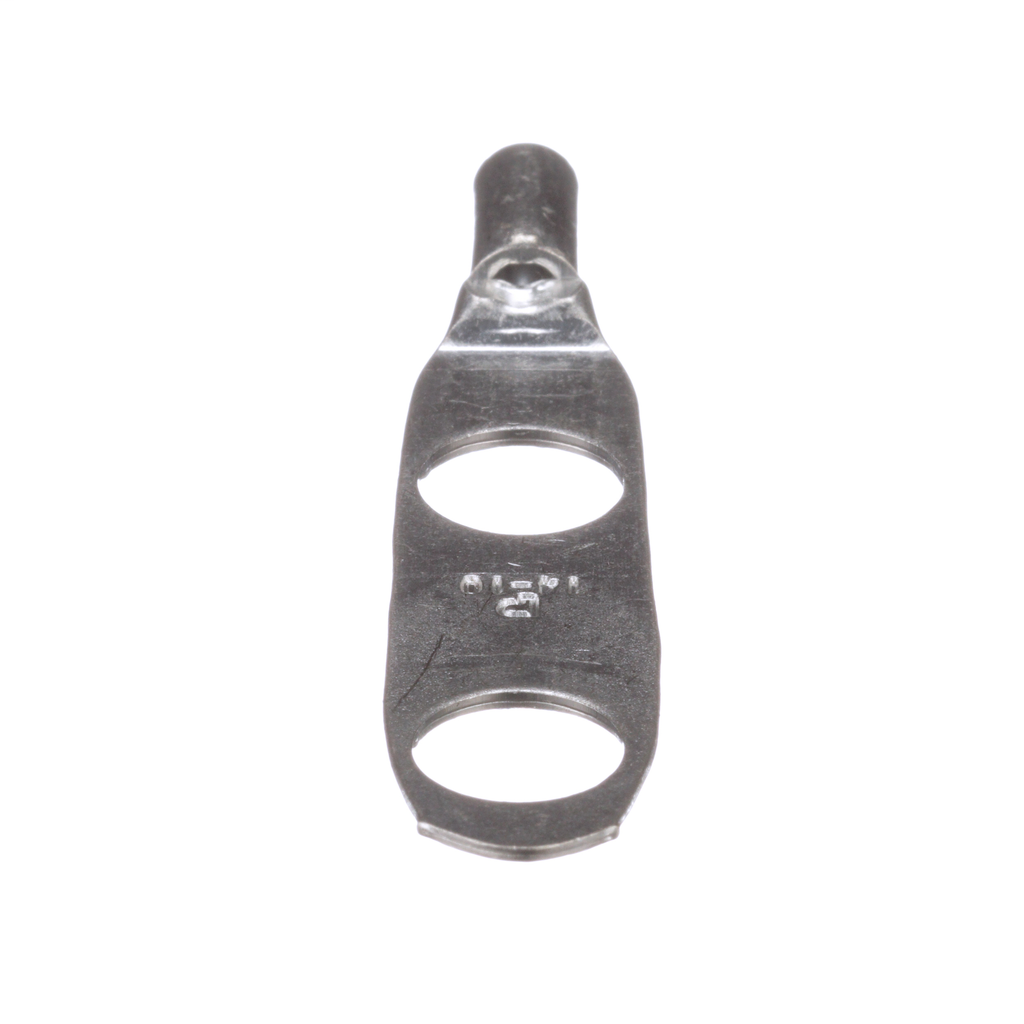

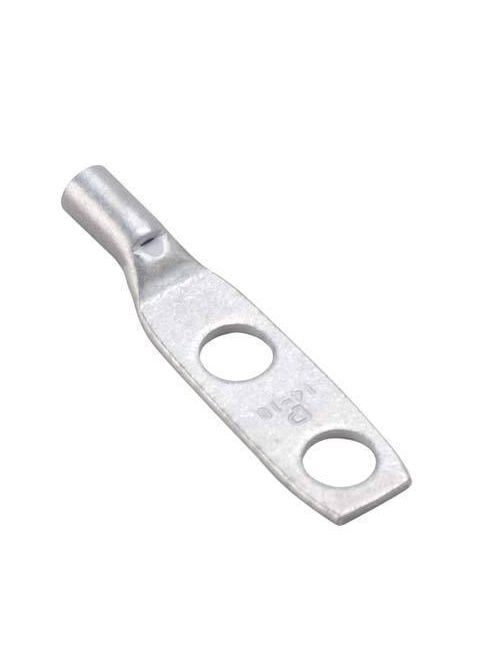

PAN LCD10-38D-L Panduit LCD10-38D-L
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,253.05/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCD10-38D-L
North Coast Part # 822117

Specifications

  • Product Segment: IEI
  • Inside Diameter (mm): 3.3
  • Outer Diameter (mm): 5.58
  • Outer Diameter (In.): 0.22
  • Inside Diameter (In.): 0.13
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 2 Stud Hole Lug
  • Base Material: Copper
  • Copper Code Conductor Size (AWG): 10
  • Sub Brand: Pan-Lug™
  • Stud Hole Size (mm): 9.5
  • Stud Hole Size (In.): 3/8
  • Stud Hole Spacing (In.): 1
  • Stud Hole Spacing (mm): 25.4
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (In.): 0.38
  • Barrel Length (mm): 9.7
  • Tongue Type: Standard
  • Tongue Width (mm): 14.2
  • Tongue Width (In.): 0.56
  • Tongue Angle: Straight
  • Tongue Thickness (mm): 1.01
  • Tongue Thickness (In.): 0.04
  • Overall Length (In.): 2.38
  • Overall Length (mm): 60.5
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Wire Strip Length (mm): 11.1
  • Wire Strip Length (In.): 7/16

Packaging Details

  • UPC: 07498397380
  • GTIN Package: 00074983973804
  • Standard Package Volume Ft3: 0.0100
  • Standard Package Weight Pounds: 0.7000
  • Std Package Height In: 2
  • Std Package Height MM: 50.8
  • Std Package Length In: 4.1
  • Std Package Length MM: 104.14
  • Std Package Width In: 2.1
  • Std Package Width MM: 53.34
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0100
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 104.14
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983973804
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498397380
Item Long Description Copper Compression Lug, 2 Hole, #10 AWG, 3/8 (9.5mm) Stud, 1 (25.4mm) Hole Spacing
GTiN 00074983973804
Size #14 #10 AWG Code STR, #12 #10 AWG Code SOL
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.375 in
Number of Holes 2 Hole
Country of Origin MX
Angle Straight
Pkg Qty 50
Family Brand Name Panduit
Overall Length 2.38 in
Barrel Length 0.38 in
Sub Brand Copper Compression Lug
Voltage 35,000 Volt
