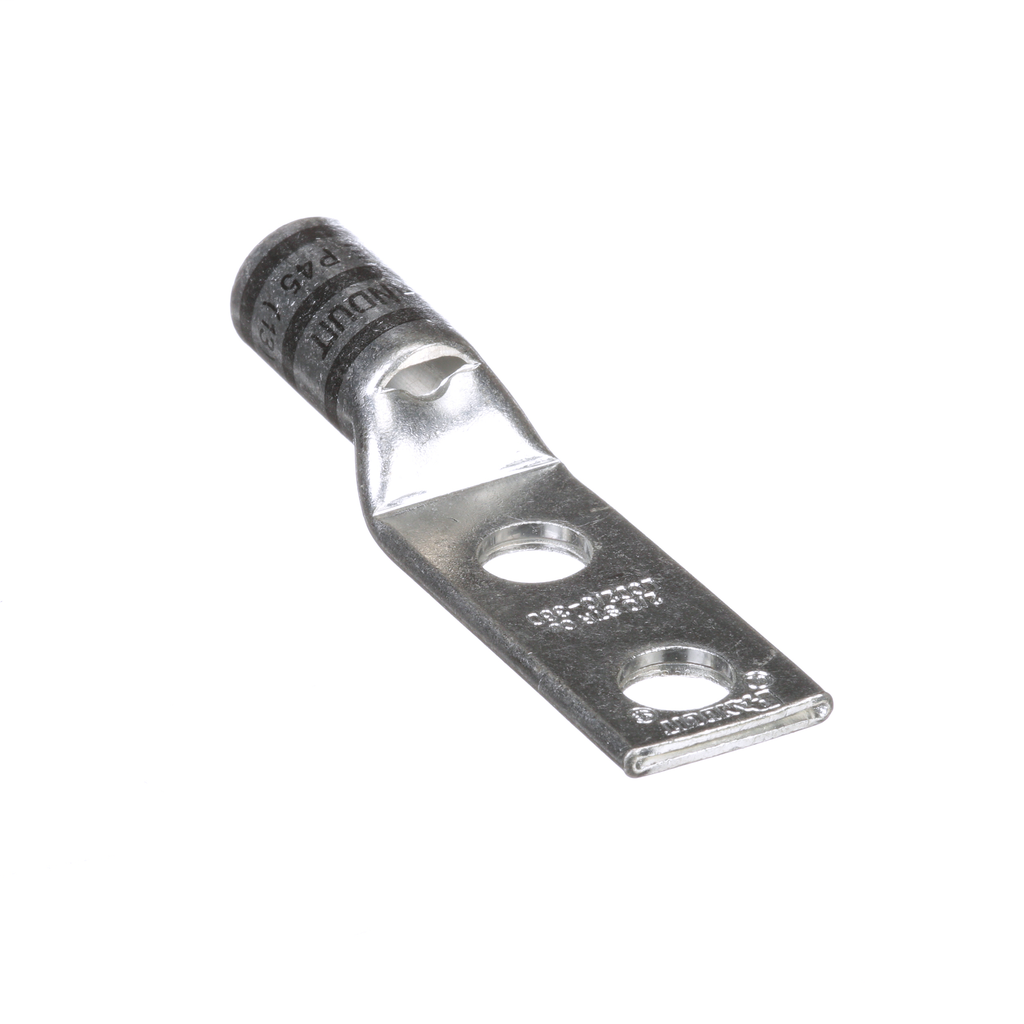

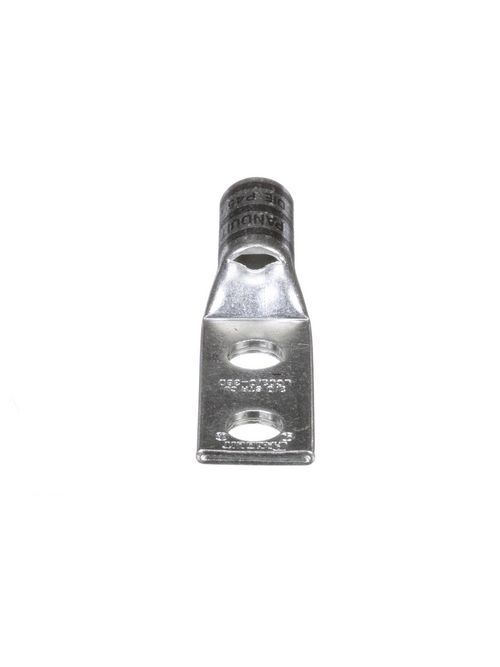

PAN LCD2/0-38D-X CuLugSBW,2Hole,2/0

Specifications

• Product Segment: IEI
• UNSPSC: 39121405
• Copper Conductor Size (AWG): 2/0
• Copper Conductor Size (kcmil): 133.1
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Stud Hole Size (In.): 42.95
• Stud Hole Size (mm): 9.5
• Stud Hole Spacing (In.): 1
• Stud Hole Spacing (mm): 25.4
• Barrel Type: Standard Barrel Length with Inspection Window
• Barrel Length (In.): 0.98
• Barrel Length (mm): 24.9
• Tongue Type: Standard
• Tongue Width (mm): 21.6
• Tongue Width (In.): 0.85
• Tongue Thickness (In.): 0.13
• Tongue Thickness (mm): 3.3
• Overall Length (In.): 3.14
• Overall Length (mm): 79.8
• Color Code: Black
• Panduit Die Index Number: P45
• Burndy Die Index Number: 13
• Wire Strip Length (In.): 1.06
• Wire Strip Length (mm): 27
• Sub Brand: Pan-Lug

Packaging Details

• UPC: 07498338326
• GTIN Package: 00074983383269
• Standard Package Volume Ft3: 0.0328
• Standard Package Weight Pounds: 1.3400
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 4.8
• Std Package Length MM: 121.92
• Std Package Width In: 3.4
• Std Package Width MM: 86.36
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• Standard Carton Volume Ft3: 0.0328
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 121.92
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983383269
• NLD HS Code: 8535900090000000000000
• USA HS Code: 8535908020000000000000
• USA HS Code 10digit: 8535908020
• ECCN Commodity Code: EAR99
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
