PAN LCD4-14A-L Panduit LCD4-14A-L C
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$902.83/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCD4-14A-L
North Coast Part # 666020

Specifications

  • Product Segment: IEI
  • Outer Diameter (In.): 0.38
  • Inside Diameter (In.): 0.28
  • Inside Diameter (mm): 7.11
  • Outer Diameter (mm): 9.65
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 2 Stud Hole Lug
  • Base Material: Copper
  • Sub Brand: Pan-Lug™
  • Copper Code Conductor Size (AWG): 4
  • Stud Hole Size (In.): 1/4
  • Stud Hole Size (mm): 6.4
  • Stud Hole Spacing (In.): 0.63
  • Stud Hole Spacing (mm): 16
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (mm): 20.6
  • Barrel Length (In.): 0.81
  • Tongue Type: Standard
  • Tongue Width (In.): 0.55
  • Tongue Width (mm): 14
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.09
  • Tongue Thickness (mm): 2.3
  • Overall Length (In.): 2.26
  • Overall Length (mm): 57.4
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Gray
  • Panduit Die Index Number: 29
  • Burndy Die Index Number: 8
  • T & B Die Index Number: 8
  • Wire Strip Length (In.): 7/8
  • Wire Strip Length (mm): 22.2

Packaging Details

  • UPC: 07498338304
  • GTIN Package: 00074983383047
  • Standard Package Volume Ft3: 0.0328
  • Standard Package Weight Pounds: 1.7100
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 4.7
  • Std Package Length MM: 119.38
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0328
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 119.38
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983383047
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498338304

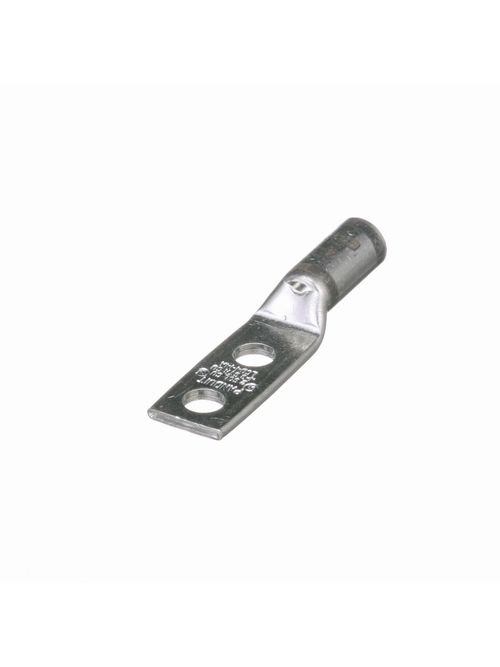

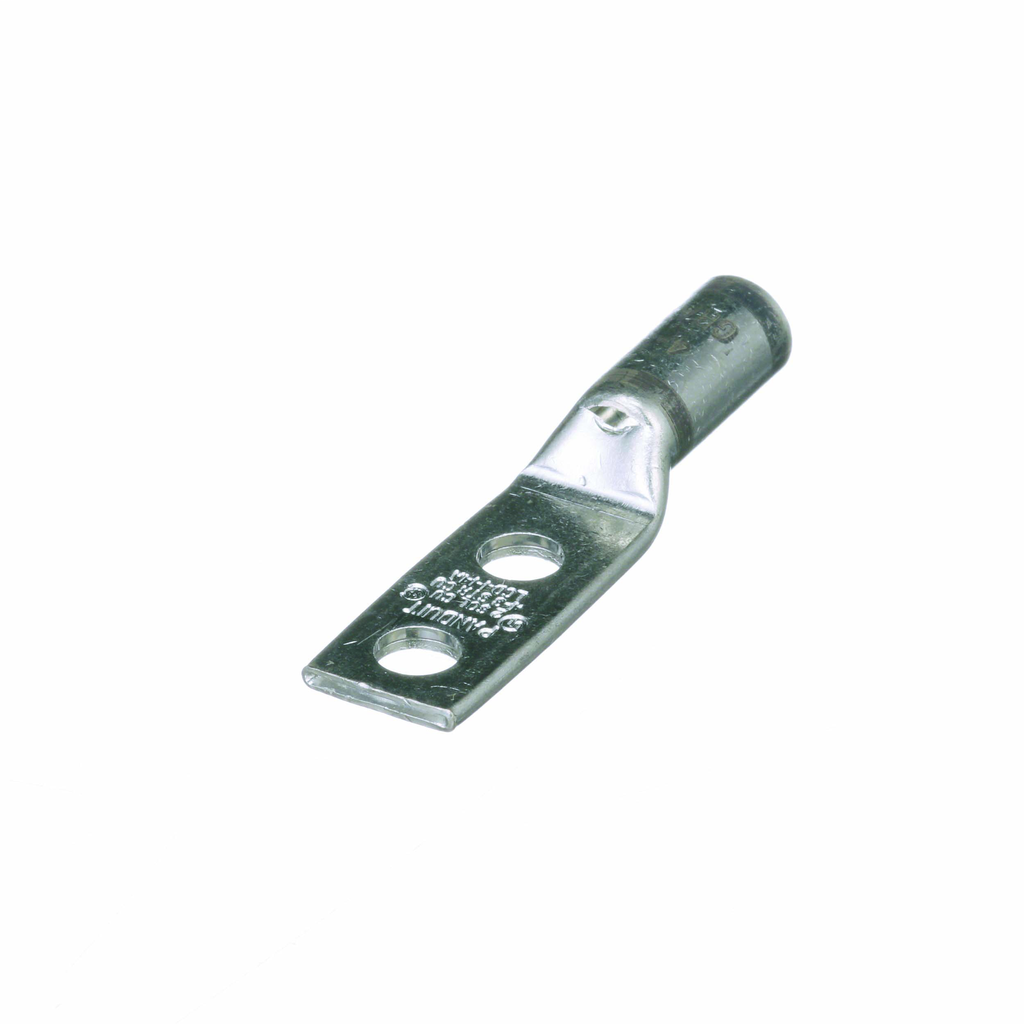

Item Long Description The LCD4-14A-L Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
GTiN 00074983383047
Size #4 #3 AWG Code STR, #2 AWG Code SOL
Color Gray
Type Tin-Plated Copper Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Country of Origin MX
Angle Straight
Pkg Qty 50
Family Brand Name Panduit
Overall Length 2.26 in
Barrel Length 0.81 in
Color Coding Gray
Sub Brand Copper Compression Lug
CA Prop65 Warning No
Voltage 35,000 Volt
