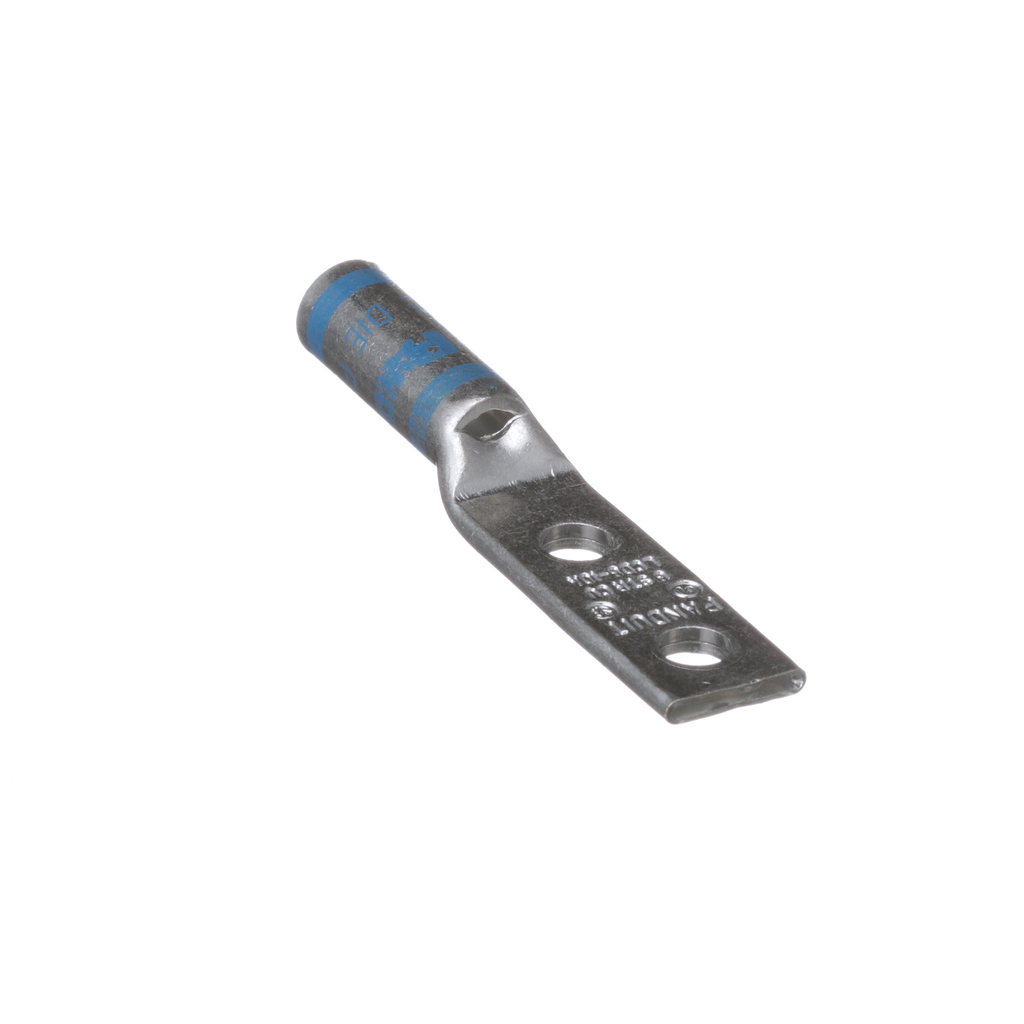

PAN LCD6-10A-L CuLugSBW,2Hole,#6AWG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$798.22/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCD6-10A-L
North Coast Part # 671206

Specifications

  • Product Segment: IEI
  • Copper Conductor Size (AWG): #6
  • Copper Conductor Size (kcmil): 26.24
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Stud Hole Size (mm): 4.8
  • Stud Hole Size (In.): 0.19
  • Stud Hole Spacing (mm): 16
  • Stud Hole Spacing (In.): 0.63
  • Barrel Type: Standard Barrel Length with Inspection Window
  • Barrel Length (mm): 20.6
  • Barrel Length (In.): 0.81
  • Tongue Type: Standard
  • Tongue Width (mm): 11.7
  • Tongue Width (In.): 0.46
  • Tongue Thickness (In.): 0.08
  • Tongue Thickness (mm): 2
  • Overall Length (mm): 54.6
  • Overall Length (In.): 2.15
  • Color Code: Blue
  • Panduit Die Index Number: 24
  • Burndy Die Index Number: 7
  • Wire Strip Length (In.): 42,954
  • Wire Strip Length (mm): 22.2
  • Sub Brand: Pan-Lug

Packaging Details

  • UPC: 07498338308
  • GTIN Package: 00074983383085
  • Standard Package Volume Ft3: 0.0328
  • Standard Package Weight Pounds: 1.5000
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 4.75
  • Std Package Length MM: 120.65
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • Standard Carton Volume Ft3: 0.0328
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 120.65
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983383085
  • NLD HS Code: 8535900090000000000000
  • USA HS Code: 8535908020000000000000
  • USA HS Code 10digit: 8535908020
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498338308
GTiN 00074983383085
Size #6 AWG Code
Color Blue
Type Type LCD
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.19 in
Number of Holes 2
Country of Origin MX
Angle Straight
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 0
Overall Length 2.15 in
Barrel Length 0.81 in
Color Coding Blue
Sub Brand Copper Compression Lug
CA Prop65 Warning No
