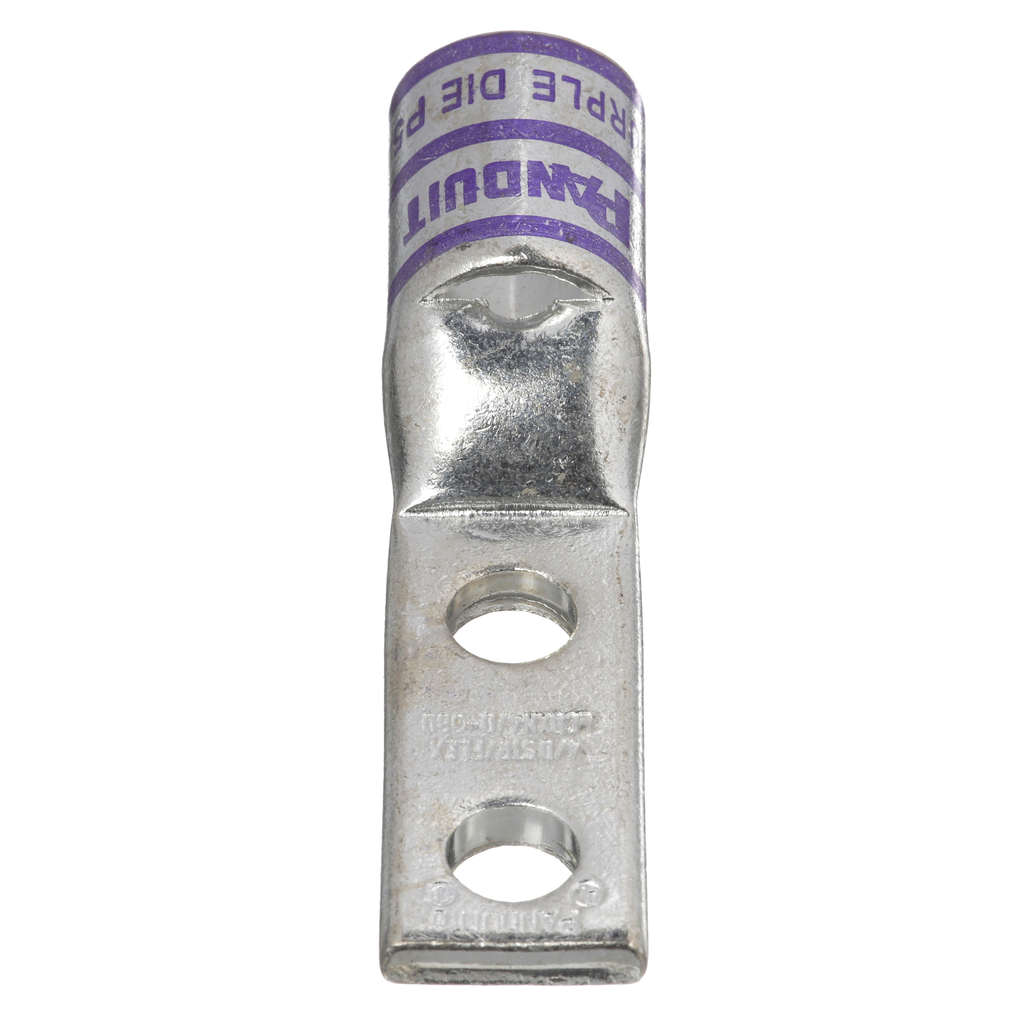

PAN LCDXN4/0-38D-X CuLug,2Hole,4/0A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,129.47/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCDXN4/0-38D-X
North Coast Part # 666034

Specifications

  • UNSPSC: 39121405
  • Product Segment: IEI
  • Product Type: Compression Connectors - Lugs
  • Stud Hole Size (In.): 3/8
  • Stud Hole Size (mm): 9.5
  • Stud Hole Spacing (mm): 25.4
  • Stud Hole Spacing (In.): 1
  • Tongue Type: Narrow
  • Tongue Thickness (mm): 4.1
  • Tongue Thickness (In.): 0.2
  • Tongue Width (mm): 20.6
  • Tongue Width (In.): 0.81
  • Overall Length (In.): 3.36
  • Overall Length (mm): 84.8
  • Barrel Type: Standard Barrel Length with Inspection Window
  • Barrel Length (mm): 26.2
  • Barrel Length (In.): 1.03
  • Sub Brand: Pan-Lug
  • Wire Strip Length (mm): 75
  • Wire Strip Length (In.): 1.06

Packaging Details

  • UPC: 07498344990
  • GTIN Package: 00074983449903
  • Standard Package Volume Ft3: 0.0318
  • Standard Package Weight Pounds: 1.6500
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 4.8
  • Std Package Length MM: 121.92
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0318
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 121.92
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983449903
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498344990
GTiN 00074983449903
Size 4/0 AWG Class B, C, G, H, I, K, M and DLO
Color Purple
Type Compression Connectors - Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.375 in
Number of Holes 2 Hole
Country of Origin MX
Angle Straight
Pkg Qty 10
Family Brand Name Panduit
Carton Qty 0
Overall Length 3.36 in
Barrel Length 1.03 in
Sub Brand Copper Compression Lug - Flex
CA Prop65 Warning No
Voltage null
UNSPSC 39121405
