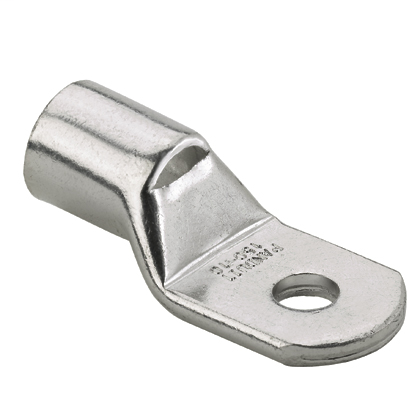

PAN LCMA150-20-X CuMetricLug,150mm²
Product image thumbnail 0
Product image thumbnail 1
$2,996.49/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCMA150-20-X
North Coast Part # 666035

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121405
  • Product Type: Tin-Plated CopperCompression Connectors - Metric Lugs
  • Tongue Type: Standard
  • Tongue Thickness (mm): 4.3
  • Overall Length (mm): 74
  • Barrel Type: Standard Barrel Length with Inspection Window
  • Barrel Length (mm): 27.5
  • Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
  • Sub Brand: Pan-Lug
  • Wire Strip Length (mm): 29

Packaging Details

  • UPC: 07498376963
  • GTIN Package: 00074983769636
  • Standard Package Volume Ft3: 0.0328
  • Standard Package Weight Pounds: 1.7040
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 4.9
  • Std Package Length MM: 124.46
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0328
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 124.46
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: IN
  • RoHS Compliant: Compliant
  • EAN: 00074983769636
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498376963
Item Long Description Copper Compression Metric Lug, 1 Hole, 150 millimeters squared Wire, M20 Stud, Inspection window to visually assure full conductor insertion, Tin-plated to inhibit corrosion, UL Listed, UL Recognized, and CSA Certified to 35 KV and temperature rated to 90 Degrees C when crimped with Panduit tools and dies, Product information marked on connector for selection and installation, Rounded tongue convenient for use in tight spaces, Internally beveled wire entry for fast and easy installation.
GTiN 00074983769636
Type Tin-Plated CopperCompression Connectors - Metric Lugs
Barrel Type Standard Barrel Length With Inspection Window
Material Tin-Plated Copper
Stud Size 0.7874 in
Number of Holes 1 Hole
Country of Origin IN
Cable Size 150
Angle Straight
Pkg Qty 10
Family Brand Name Panduit
Overall Length 74 mm
Barrel Length 27.5 mm
Sub Brand Type LCMA
UNSPSC 39121405
