PAN LCMB185-10-X CuMetricLug,Long,1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,025.57/c (100 ea)
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCMB185-10-X
North Coast Part # 1346767


  • Product Segment: IEI
  • UNSPSC: 39121405
  • Product Type: Tin-Plated CopperCompression Connectors - Metric Lugs
  • Tongue Thickness (mm): 4.6
  • Overall Length (mm): 100.6
  • Barrel Type: Long Barrel Length without Inspection Window
  • Barrel Length (mm): 56.3
  • Finish/Coating: Tin Plated
  • Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
  • Sub Brand: Pan-Lug
  • Wire Strip Length (mm): 57.9

Packaging Details

  • UPC: 07498362015
  • GTIN Package: 00074983620159
  • Standard Package Volume Ft3: 0.0417
  • Standard Package Weight Pounds: 2.7200
  • Std Package Height In: 3
  • Std Package Height MM: 76.2
  • Std Package Length In: 8
  • Std Package Length MM: 203.2
  • Std Package Width In: 3
  • Std Package Width MM: 76.2
  • Std. Pkg. UOM: Piece
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0417
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 203.2
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: IN
  • RoHS Compliant: Compliant
  • EAN: 00074983620159
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10


UPC 07498362015

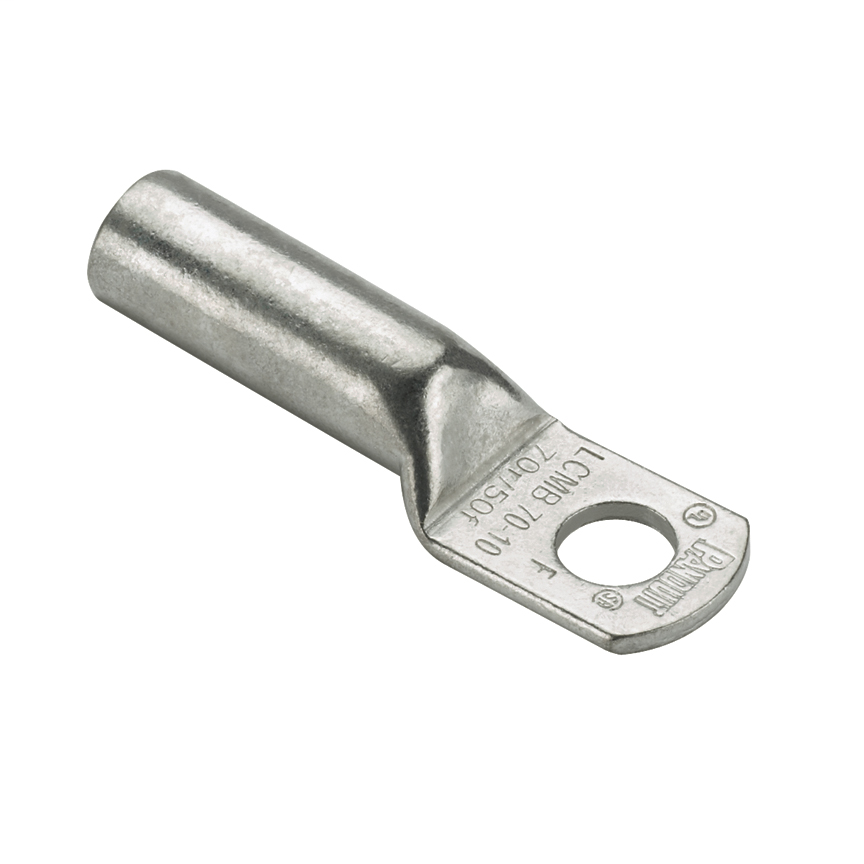

Item Long Description Copper Compression Metric Lug, 1 Hole, Long Barrel, 185 millimeters squared Class 2r, 150 millimeters squared Class 5f/6f, M10 Stud, Tin-plated to inhibit corrosion, UL Listed and CSA Certified to 35 KV and temperature rated to 90 degrees Celsius when crimped with Panduit tools and dies, Product information marked on connector for selection and installation, Internally beveled wire entry for fast and easy installation.
GTiN 00074983620159
Finish Tin Plated
Type Tin-Plated CopperCompression Connectors - Metric Lugs
Barrel Type Long Barrel Length Without Inspection Window
Material Tin-Plated Copper
Stud Size 0.3937 in
Number of Holes 1 Hole
Country of Origin IN
Cable Size 185
Angle Straight
Pkg Qty 10
Family Brand Name Panduit
Overall Length 100.6 mm
Barrel Length 56.3 mm
Sub Brand Type LCMB
UNSPSC 39121405
