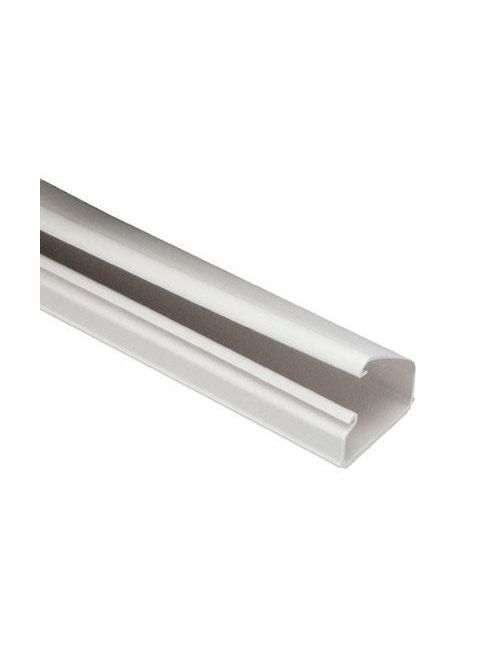

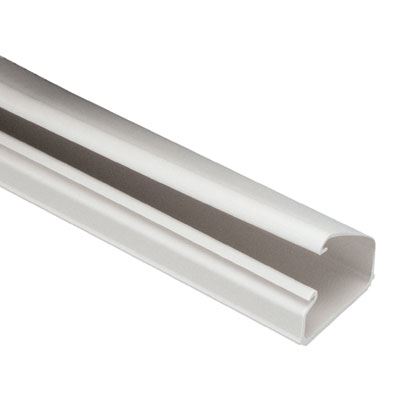

PAN LD10WH6-A LD10 Surface Raceway
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LD10WH6-A
North Coast Part # 601331


  • Product Segment: EDI-ENT
  • Product Type: Low Voltage Channel
  • Sub Brand: Pan-Way®
  • Color: White
  • Fitting Type: Channel
  • For Use With: LD Raceway
  • Material: Rigid PVC
  • Mount Method: Adhesive
  • Raceway Type: Low Voltage
  • Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
  • Internal Area (in²): 1
  • Overall Height (In.): 0.94
  • Overall Height (mm): 23.9
  • Overall Length (mm): 1.829
  • Overall Length (In.): 72
  • Overall Width (mm): 38.4
  • Overall Width (In.): 1.51
  • Application: Pan-Way ® LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes

Packaging Details

  • UPC: 07498358616
  • GTIN Package: 00074983586165
  • Standard Package Volume Ft3: 0.0649
  • Standard Package Weight Pounds: 0.9000
  • Std Package Height In: .6
  • Std Package Height MM: 15.24
  • Std Package Length In: 72
  • Std Package Length MM: 1828.8
  • Std Package Width In: 1.1
  • Std Package Width MM: 27.94
  • Std. Pkg. UOM: Foot
  • Std. Pkg. Qty.: 6
  • GTIN Carton: 50074983586160
  • Standard Carton Volume Ft3: 0.0649
  • Standard Carton Weight Pounds: 18.0000
  • Std Carton Height In: 3.8
  • Std Carton Height MM: 96.52
  • Std Carton Length In: 72.9
  • Std Carton Length MM: 1828.8
  • Std Carton Width In: 8.1
  • Std Carton Width MM: 205.74
  • Std Ctn Qty: 120
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983586165
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 6


UPC 07498358616
GTiN 00074983586165
Length 1.8 m
Width 1.51 in
Color White
Type Low Voltage
Material PVC
Applications For Schools, Hospitals, Offices, Homes or Anywhere a Small, Secure, Low Profile Raceway is Needed
Height 0.94 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
Number of Channels 1
Carton Qty 120
Overall Length 72 in
Blade Dimensions 1.8 m L x 38.4 mm W x 23.9 mm H
Cover Type Single Channel
Sub Brand Pan-Way
CA Prop65 Warning No
Mounting Type Adhesive
