PAN LD3IW6-A LD3 Surface Raceway Ch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2.60/ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LD3IW6-A
North Coast Part # 212775

Specifications

  • Product Segment: EDI-ENT
  • Sub Brand: Pan-Way®
  • Product Type: Low Voltage Channel
  • Color: Off White
  • Fitting Type: Channel
  • For Use With: LD Raceway
  • Material: Rigid PVC
  • Mount Method: Adhesive
  • Raceway Type: Low Voltage
  • Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
  • Internal Area (in²): 0.21
  • Overall Height (In.): 0.46
  • Overall Height (mm): 11.7
  • Overall Length (In.): 72
  • Overall Length (mm): 1.829
  • Overall Width (In.): 0.77
  • Overall Width (mm): 19.6
  • Application: Pan-Way ® LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes

Packaging Details

  • UPC: 07498358826
  • GTIN Package: 00074983588268
  • Standard Package Volume Ft3: 0.0213
  • Standard Package Weight Pounds: 0.3375
  • Std Package Height In: .5
  • Std Package Height MM: 12.7
  • Std Package Length In: 72
  • Std Package Length MM: 1828.8
  • Std Package Width In: .8
  • Std Package Width MM: 20.32
  • Std. Pkg. UOM: Foot
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • GTIN Carton: 50074983588263
  • Standard Carton Volume Ft3: 0.0213
  • Standard Carton Weight Pounds: 6.7500
  • Std Carton Height In: 2.3
  • Std Carton Height MM: 58.42
  • Std Carton Length In: 72.8
  • Std Carton Length MM: 1828.8
  • Std Carton Width In: 4.4
  • Std Carton Width MM: 111.76
  • Std Ctn Qty: 120
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983588268
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 6
  • Pallet Quantity: 11,880
  • Pallet Volume: 42.208833
  • Pallet Weight: 668.2500

Overview

UPC 07498358826

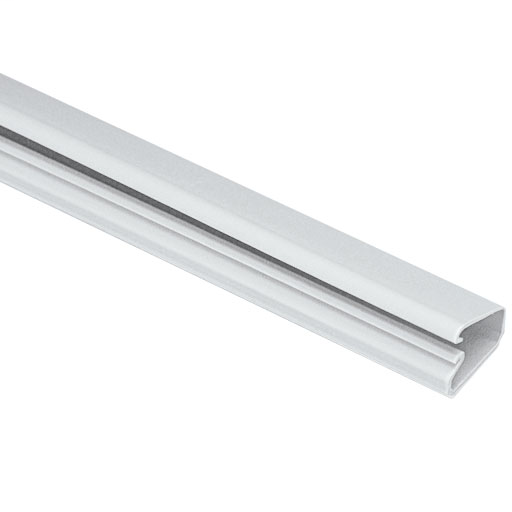

Item Long Description The LD3 surface raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 6 feet in length and is 1.01 inches wide by 0.58 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is off white.
GTiN 00074983588268
Length 1.8 m
Width 0.77 in
Color Off White,White
Type Low Voltage Channel
Material PVC
Applications Designed for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes or anywhere a small, secure, low profile raceway is needed.
Height 0.46 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
Overall Length 72 in
Sub Brand Pan-Way
CA Prop65 Warning No
Mounting Type Adhesive
