PAN MLT2.7H-LP Panduit Pan-Steel ML
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,570.97/m (1000 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # MLT2.7H-LP
North Coast Part # 672002

Specifications

  • Product Segment: IEI
  • Application: General
  • Product Type: Stainless Steel Cable Ties
  • Color: Metallic
  • For Use With: GS4MT-E, HTMT, PPTMT, ST2MT
  • Material: Stainless Steel Type 304
  • Maximum Bundle Diameter (In.): 2.7
  • Minimum Bundle Diameter (In.): 0.5
  • Sub Brand: Pan-Steel®
  • Maximum Bundle Diameter (mm): 69
  • Minimum Bundle Diameter (mm): 12.7
  • Maximum Operating Temperature (°C): 538
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°F): 1000
  • Minimum Operating Temperature (°F): -76
  • Overall Length (mm): 259
  • Overall Length (In.): 10.2
  • Body Width (mm): 7.9
  • Body Width (In.): 0.31
  • Body Thickness (mm): 0.25
  • Body Thickness (In.): 0.01
  • Minimum Loop Tensile Strength (N): 2000
  • Minimum Loop Tensile Strength (lb): 450

Packaging Details

  • UPC: 07498350026
  • GTIN Package: 00074983500260
  • Standard Package Volume Ft3: 0.0241
  • Standard Package Weight Pounds: 0.6750
  • Std Package Height In: 1.25
  • Std Package Height MM: 31.75
  • Std Package Length In: 13.3
  • Std Package Length MM: 337.82
  • Std Package Width In: 3.25
  • Std Package Width MM: 82.55
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983500265
  • Standard Carton Volume Ft3: 0.0241
  • Standard Carton Weight Pounds: 3.3750
  • Std Carton Height In: 1.85
  • Std Carton Height MM: 46.99
  • Std Carton Length In: 19
  • Std Carton Length MM: 337.82
  • Std Carton Width In: 5.85
  • Std Carton Width MM: 148.59
  • Std Ctn Qty: 250
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CN,US
  • RoHS Compliant: Compliant
  • EAN: 00074983500260
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50
  • Pallet Quantity: 84,000
  • Pallet Volume: 40.432383
  • Pallet Weight: 1,134.0000

Overview

UPC 07498350026

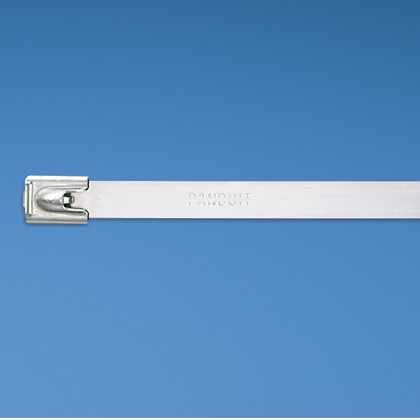

Item Long Description The MLT2.7H-LP Pan-Steel 304 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
GTiN 00074983500260
Length 10.2 in
Width 0.31 in
Color Natural
Type Stainless Steel Cable Ties
Thickness 0.2 mm
Material Stainless Steel Type 304
Applications General
Country of Origin CN,US
Pkg Qty 50
Family Brand Name Panduit
Max Operating Temperature 1 degrees F
Overall Length 10.2 in
Min Operating Temperature -76 degrees F
Tensile Strength 2000 lb
Bundle Diameter 2.70 IN
Sub Brand Pan-Steel
CA Prop65 Warning No
