PAN NE1.5X1.5WH6 Panduit NE1.5X1.5W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$15.37/ea
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NE1.5X1.5WH6
North Coast Part # 667490

Specifications

  • Product Segment: IEI
  • Product Type: Base Wiring Duct
  • Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
  • Color: White
  • Cover Part Number: NC1.5WH6
  • Flammability Rating: UL94V-0
  • Includes: Base Only
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
  • Material: Halogen-Free PPO
  • Mount Method: Mounting Holes
  • Measurement System: Metric
  • Wiring Duct Style: Wide Slot Wiring Duct
  • Wiring Duct Type: NA
  • Overall Height (mm): 41.1
  • Overall Height (In.): 1.62
  • Overall Length (m): 1.8
  • Overall Length (ft.): 6
  • Overall Width (mm): 41.7
  • Overall Width (In.): 1.64
  • Slot Width (In.): 0.31
  • Slot Width (mm): 7.9
  • Sub Brand: Panduct®

Packaging Details

  • UPC: 07498321468
  • GTIN Package: 00074983214686
  • Standard Package Volume Ft3: 0.0831
  • Standard Package Weight Pounds: 0.8436
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 72
  • Std Package Length MM: 1828.8
  • Std Package Width In: 1.5
  • Std Package Width MM: 38.1
  • Std. Pkg. UOM: Foot
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • GTIN Carton: 50074983214681
  • Standard Carton Volume Ft3: 0.0831
  • Standard Carton Weight Pounds: 16.8720
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 72.9
  • Std Carton Length MM: 1828.8
  • Std Carton Width In: 10.2
  • Std Carton Width MM: 259.08
  • Std Ctn Qty: 120
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983214686
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 6

Overview

UPC 07498321468

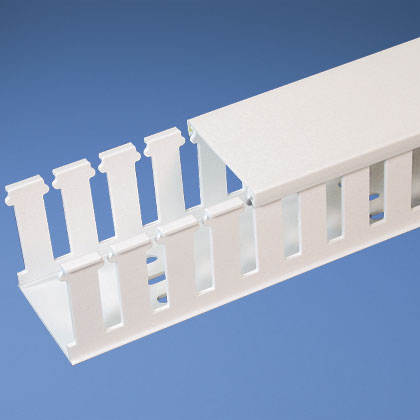

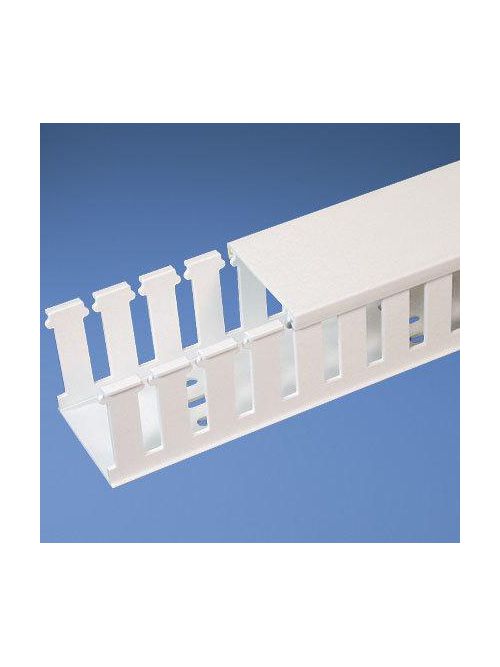

Item Long Description The NE1.5X1.5WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95C (203F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 1.62" x 1.64" (41.1 mm x 41.7 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
GTiN 00074983214686
Length 1.8 m
Width 1.75 in
Size 41.7 x 41.1 mm
Color White
Type Base Wiring Duct
Thickness 0.07 IN
Material Halogen-Free PPO
Height 1.62 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
TC Connection Standard Mounting Holes
Overall Length 6 ft
Sub Brand Panduct
Mounting Type Mounting Holes
