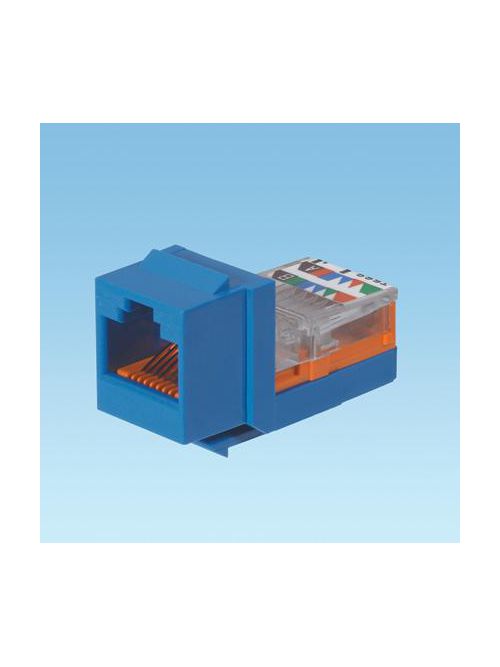

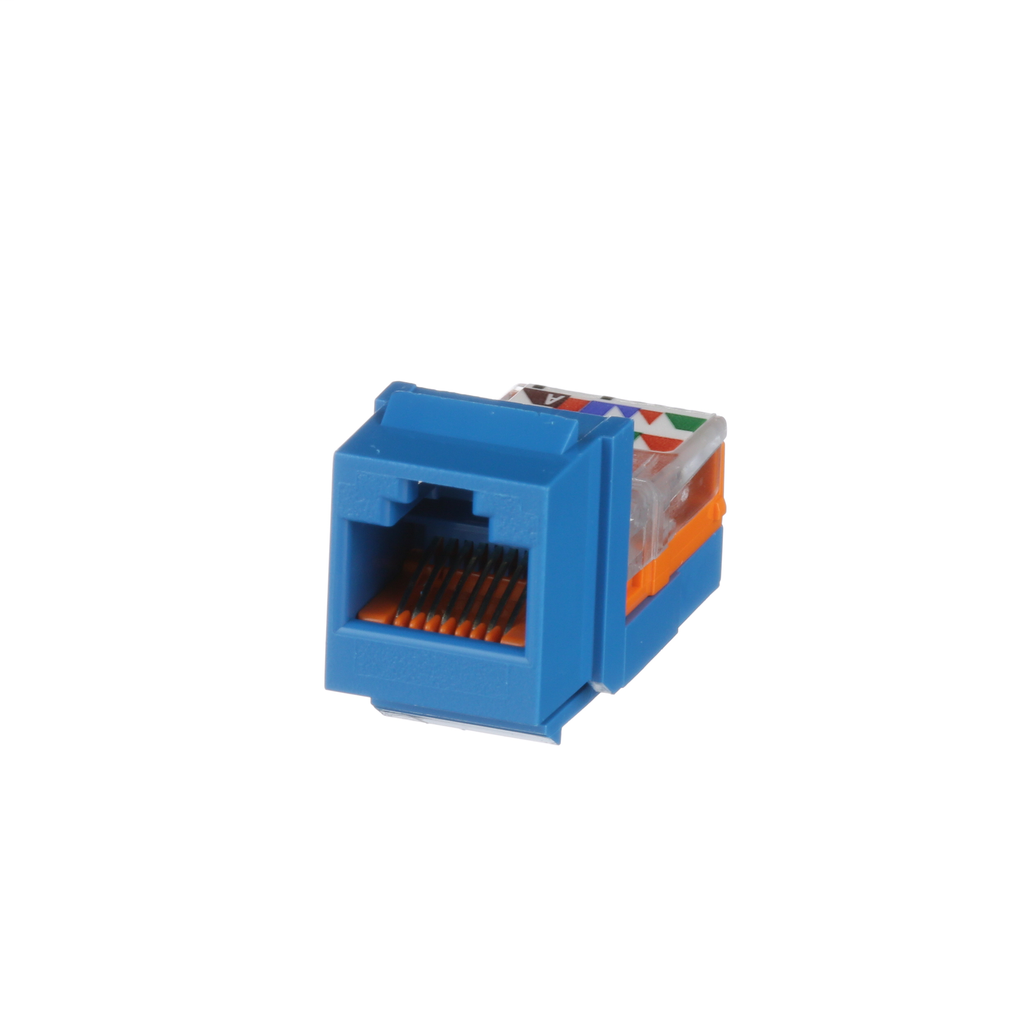

PAN NK5E88MBUY NK,Cat5e,LeadFrame,J
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$6.27/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK5E88MBUY
North Coast Part # 552143

Specifications

  • Product Segment: EDI-ENT
  • Product Type: NetKey Category 5e UTP Jack Module
  • Performance Level: Category 5e
  • Connector Type: Jack Module
  • Termination Style: Leadframe
  • Body Material: ABS
  • Contact Material: Gold
  • Module Type: Keystone
  • Wiring Scheme: T568A/T568B
  • Shield Type: Unshielded (UTP)
  • Connector 1 Type: RJ45
  • Connector 2 Type: Keystone Punchdown Jack Module
  • Maximum Operating Temperature (°F): 149
  • Maximum Operating Temperature (°C): 65
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Maximum Storage Temperature (°C): 70
  • Color: Blue
  • Standards Met: Meets all TIA/EIA-568-C.2 Category 5e and ISO 11801 Channel Performance, 2nd Edition Class D Channel Requirements at Swept Frequencies up to 100 MHz. Meets ANSI/TIA-968-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
  • Overall Depth (mm): 34.8
  • Overall Depth (In.): 1.37
  • Overall Height (mm): 22.2
  • Overall Height (In.): 0.87
  • Overall Length (In.): 1.37
  • Overall Length (mm): 34.8
  • Overall Width (mm): 16.4
  • Overall Width (In.): 0.65

Packaging Details

  • UPC: 07498305498
  • GTIN Package: 00074983054985
  • Standard Package Volume Ft3: 0.0032
  • Standard Package Weight Pounds: 0.0264
  • Std Package Height In: .85
  • Std Package Height MM: 21.59
  • Std Package Length In: 3.5
  • Std Package Length MM: 88.9
  • Std Package Width In: 2.5
  • Std Package Width MM: 63.5
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983054980
  • Standard Carton Volume Ft3: 0.0032
  • Standard Carton Weight Pounds: 1.3200
  • Std Carton Height In: 3.45
  • Std Carton Height MM: 87.63
  • Std Carton Length In: 10.65
  • Std Carton Length MM: 88.9
  • Std Carton Width In: 7.3
  • Std Carton Width MM: 185.42
  • Std Ctn Qty: 50
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CN
  • RoHS Compliant: Compliant
  • EAN: 00074983054985
  • NLD HS Code: 8536699099000000000000
  • USA HS Code: 8536694040000000000000
  • USA HS Code 10digit: 8536694040
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498305498
GTiN 00074983054985
Width 0.65 in
Color Blue
Type RJ45, Lead frame, Unshielded
Applications Unshielded
Cable Type Category 5E
Depth 1.37 in
Height 0.87 in
Country of Origin CN
Cable Size 24 - 22 AWG
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 5e
Carton Qty 50
Max Operating Temperature 149 degrees F
Overall Length 1.37 in
Min Operating Temperature 14 degrees F
Number of Positions 8
Used With Round, Flat and Solid Core Copper Cables
Sub Brand NetKey
