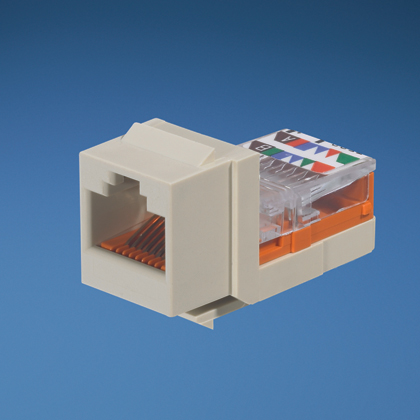

PAN NK5E88MIWY NK,Cat5e,LeadFrame,J
$6.27/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK5E88MIWY
North Coast Part # 345161

Specifications

  • UNSPSC: 43223301
  • Product Segment: EDI-ENT
  • Product Type: NetKey Category 5e UTP Jack Module
  • Performance Level: Category 5e
  • Connector Type: Jack Module
  • Termination Style: Leadframe
  • Body Material: ABS
  • Contact Material: Gold
  • Module Type: Keystone
  • Wiring Scheme: T568A/T568B
  • Shield Type: Unshielded (UTP)
  • Connector 1 Type: Keystone Leadframe Jack Module
  • Connector 2 Type: Keystone Punchdown Jack Module
  • Maximum Operating Temperature (°F): 149
  • Maximum Operating Temperature (°C): 65
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Maximum Storage Temperature (°C): 70
  • Color: Off White
  • Standards Met: Meets all TIA/EIA-568-C.2 Category 5e and ISO 11801 Channel Performance, 2nd Edition Class D Channel Requirements at Swept Frequencies up to 100 MHz. Meets ANSI/TIA-968-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
  • Overall Depth (In.): 1.37
  • Overall Depth (mm): 34.8
  • Overall Height (In.): 0.87
  • Overall Height (mm): 22.2
  • Overall Length (In.): 1.37
  • Overall Length (mm): 34.8
  • Overall Width (In.): 0.65
  • Overall Width (mm): 16.4

Packaging Details

  • UPC: 07498305502
  • GTIN Package: 00074983055029
  • Standard Package Volume Ft3: 0.0032
  • Standard Package Weight Pounds: 0.0264
  • Std Package Height In: 1
  • Std Package Height MM: 25.4
  • Std Package Length In: 3.5
  • Std Package Length MM: 88.9
  • Std Package Width In: 3.25
  • Std Package Width MM: 82.55
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983055024
  • Standard Carton Volume Ft3: 0.0032
  • Standard Carton Weight Pounds: 1.3200
  • Std Carton Height In: 3.4
  • Std Carton Height MM: 86.36
  • Std Carton Length In: 10.65
  • Std Carton Length MM: 88.9
  • Std Carton Width In: 7.25
  • Std Carton Width MM: 184.15
  • Std Ctn Qty: 50
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CN
  • RoHS Compliant: Compliant
  • EAN: 00074983055029
  • NLD HS Code: 8536699099000000000000
  • USA HS Code: 8536694040000000000000
  • USA HS Code 10digit: 8536694040
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498305502
GTiN 00074983055029
Width 0.65 in
Color Off White
Type Keystone, Universal, Unshielded, 8-Wire
Applications 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet, 4/16 Token Ring, Voice over Internet Protocol (VoIP)
Depth 1.37 in
Height 0.87 in
Country of Origin CN
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 5e
Carton Qty 50
Max Operating Temperature 149 degrees F
Overall Length 1.37 in
Min Operating Temperature 14 degrees F
Sub Brand NetKey
Material ABS/Polycarbonate
Cable Type Category 5e
Cable Size 24-22 AWG
Temperature Rating -10 to 65 C
Blade Dimensions 0.64 in W x 1.37 in D x 0.635 in H
Number of Positions 8
Used With T568A/T568B Cable
