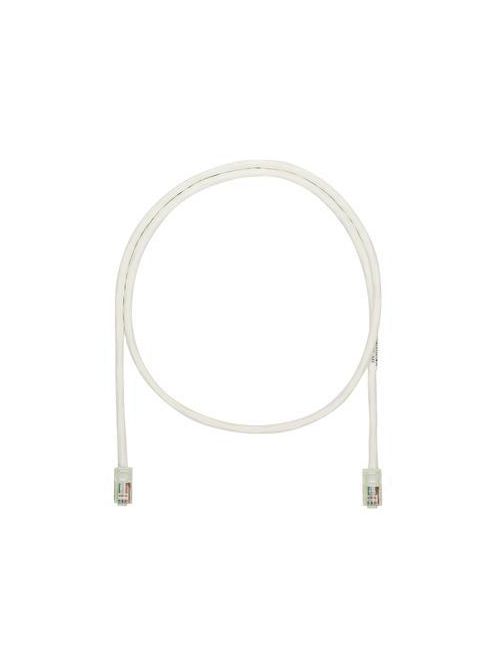

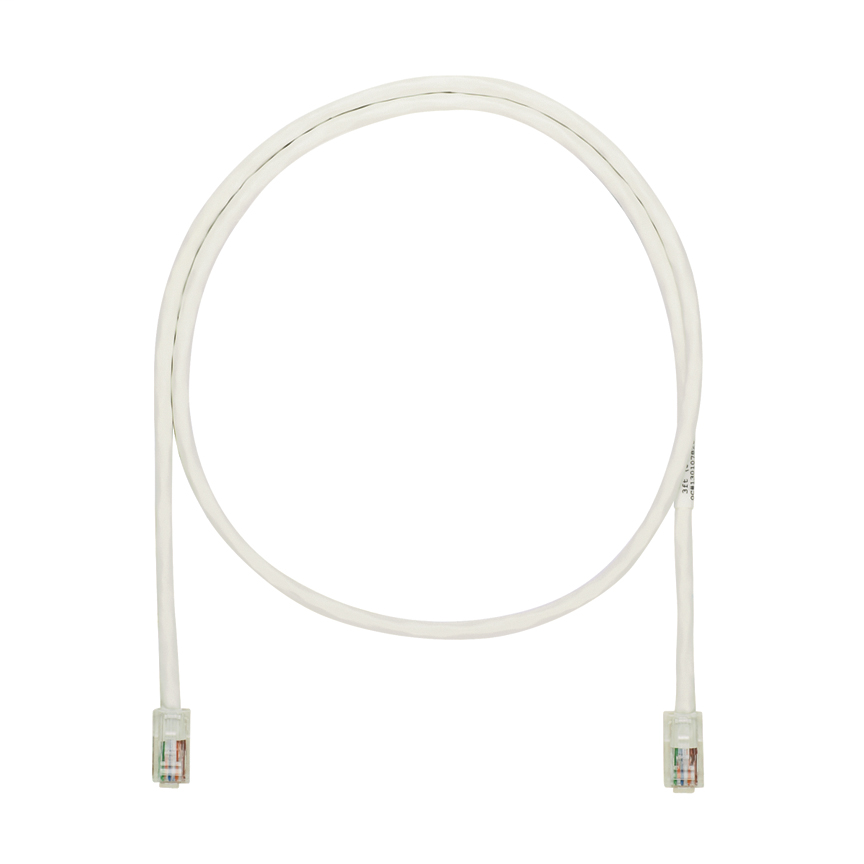

PAN NK5EPC5Y NK,Cu,PC,Cat5e,UTP,Cbl
$4.94/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK5EPC5Y
North Coast Part # 552148

Specifications

  • UNSPSC: 43223303
  • Product Segment: EDI-ENT
  • Product Type: Patch Cord
  • Application: Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Voice over internet protocol (VoIP)
  • Conductor Gauge (AWG): 24
  • Conductor Gauge (kcmil): 0.4
  • Performance Level: Category 5e
  • Conductor Type: Stranded
  • Cable Construction: U/UTP
  • Patch Cord Type: Unshielded
  • Overall Length (ft.): 5
  • Wiring Scheme: T568A
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Boot Color: NA
  • Color: Off-White
  • Sub Brand: NetKey
  • Flammability Rating: CM
  • Standards Met: ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D, ANSI/TIA-568-C.2 and ISO 11801 Category 5e, ANSI/TIA-1096A (formerly FCC Part 68), IEC 60603-7, IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), CM rated802.3af / 802.3at and 802.3bt type 3 and type 4, UL 1863, CSA standard C22.2, RoHS Compliant
  • IEC Variant: 60603-7
  • PoE Compatibility: PoE
  • Plug Type: Meets IEC 60603-7

Packaging Details

  • UPC: 07498305527
  • GTIN Package: 00074983055272
  • Standard Package Volume Ft3: 0.0240
  • Standard Package Weight Pounds: 0.1900
  • Std Package Height In: .85
  • Std Package Height MM: 21.59
  • Std Package Length In: 9.1
  • Std Package Length MM: 231.14
  • Std Package Width In: 8.85
  • Std Package Width MM: 224.79
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983055277
  • Standard Carton Volume Ft3: 0.0240
  • Standard Carton Weight Pounds: 1.9000
  • Std Carton Height In: 3.6
  • Std Carton Height MM: 91.44
  • Std Carton Length In: 10.8
  • Std Carton Length MM: 231.14
  • Std Carton Width In: 9.1
  • Std Carton Width MM: 231.14
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983055272
  • NLD HS Code: 8544421000000000000000
  • USA HS Code: 8544422000000000000000
  • USA HS Code 10digit: 8544422000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498305527
GTiN 00074983055272
Color Off-White
Type Category 5e
Conductor Size 24 AWG
Applications For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Country of Origin Costa Rica
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 5e
Carton Qty 10
Max Operating Temperature 140 degrees F
Overall Length 5 ft
Min Operating Temperature 14 degrees F
Sub Brand NetKey
Connector Type Modular Plug
Cable Type 24 AWG UTP
Temperature Rating -10 to 60 C
Cable Length 5 ft
Boot Color NA
