PAN NK688MIW-Q NK,Cat6,PchDownJkMod
Product image thumbnail 0
Product image thumbnail 1
$8.94/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK688MIW-Q
North Coast Part # 668854

Specifications

  • Product Segment: EDI-ENT
  • UNSPSC: 43223301
  • Note: NA
  • Product Type: Jack Module
  • Performance Level: Category 6
  • Connector Type: Jack Module
  • Termination Style: Punchdown
  • Body Material: ABS/Polycarbonate
  • Contact Material: Plated Phosphor Bronze
  • Module Type: Keystone
  • Wiring Scheme: T568A/T568B
  • Shield Type: Unshielded (UTP)
  • Sub Brand: NetKey®
  • Maximum Operating Temperature (°F): 149
  • Maximum Operating Temperature (°C): 65
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Maximum Storage Temperature (°C): 70
  • Color: International White
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
  • RoHS Compliant: Yes
  • Overall Depth (mm): 29.5
  • Overall Depth (In.): 1.16
  • Overall Height (mm): 22.9
  • Overall Height (In.): 0.9
  • Overall Length (mm): 29.5
  • Overall Length (In.): 1.16
  • Overall Width (mm): 16.5
  • Overall Width (In.): 0.65

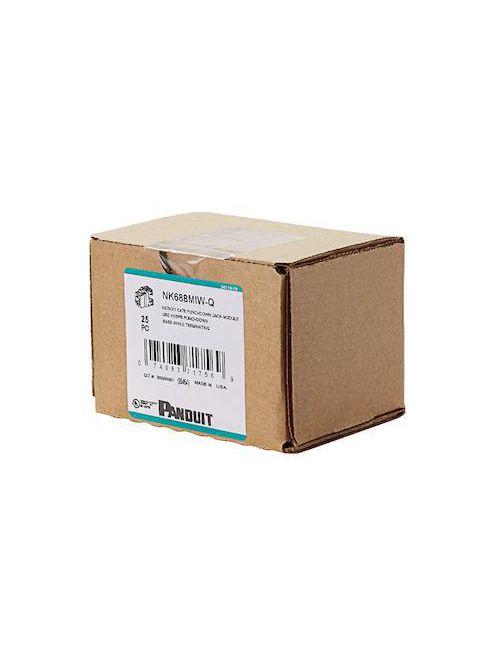

Packaging Details

  • UPC: 07498371756
  • GTIN Package: 00074983717569
  • Standard Package Volume Ft3: 0.0362
  • Standard Package Weight Pounds: 0.4500
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 7.5
  • Std Package Length MM: 190.5
  • Std Package Width In: 4.95
  • Std Package Width MM: 125.73
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50074983717564
  • Standard Carton Volume Ft3: 0.0362
  • Standard Carton Weight Pounds: 4.5000
  • Std Carton Height In: 4.7
  • Std Carton Height MM: 119.38
  • Std Carton Length In: 13.25
  • Std Carton Length MM: 190.5
  • Std Carton Width In: 10.45
  • Std Carton Width MM: 265.43
  • Std Ctn Qty: 250
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983717569
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498371756
GTiN 00074983717569
Width 0.65 in
Color Off White
Type RJ45, Unshielded, Universal, Keystone, 8-Wire
Applications 10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Depth 1.16 in
Height 0.9 in
Country of Origin US
Pkg Qty 25
Family Brand Name Panduit
Performance Level Category 6
Carton Qty 250
Max Operating Temperature 149 degrees F
Overall Length 1.16 in
Min Operating Temperature 14 degrees F
Sub Brand NetKey
Material ABS/Polycarbonate
Cable Type Category 6
Cable Size 26-22 AWG
Temperature Rating -10 to 65 C
Blade Dimensions 0.645 in W x 1.16 in D x 7/8 in H
Environmental Conditions 14 F
Number of Positions 8
Used With T568A/T568B Cable
UNSPSC 43223301
