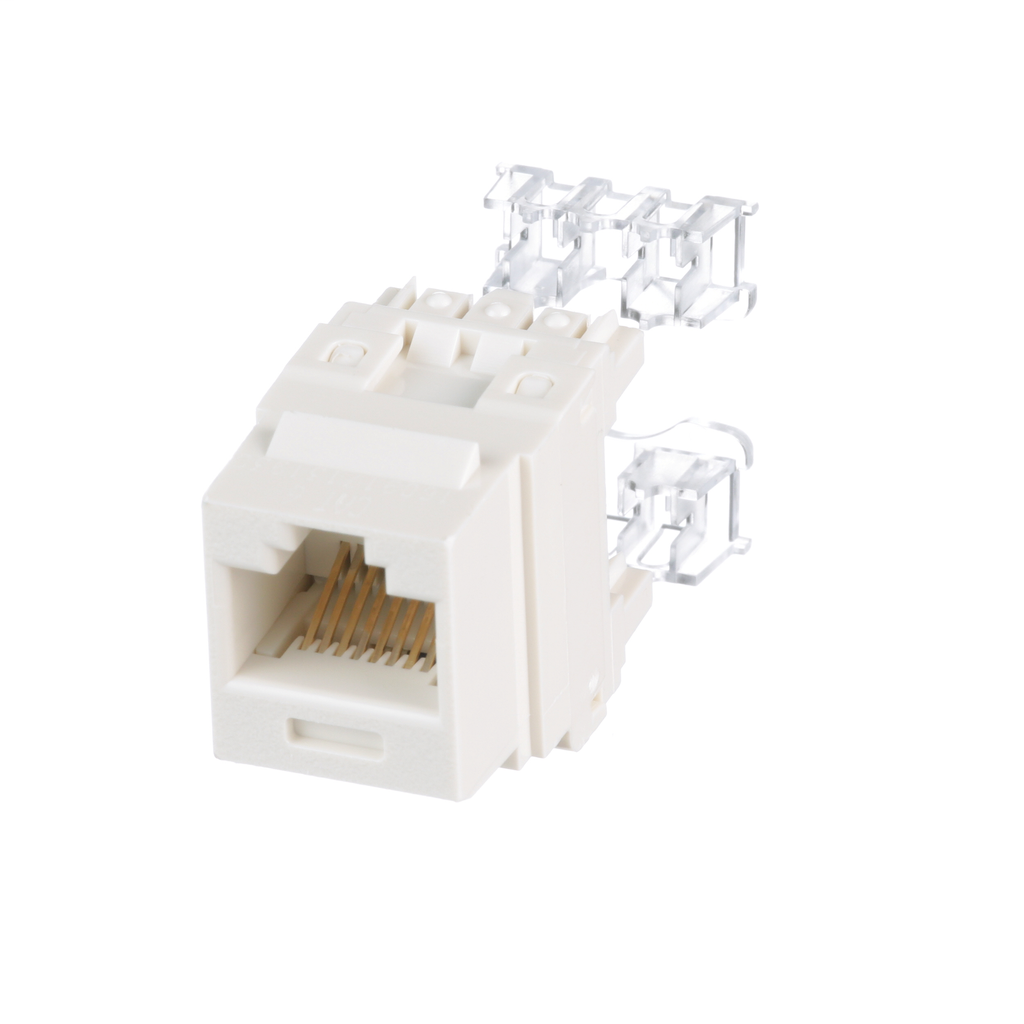

PAN NK688MIW UTP RJ45 Cat 6 Punchdo
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.46/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK688MIW
North Coast Part # 668856

Specifications

  • Product Segment: EDI-ENT
  • Product Type: NetKey Category 6 UTP Jack Module
  • Note: N/A
  • Performance Level: Category 6
  • Connector Type: Jack Module
  • Termination Style: Punchdown
  • Body Material: ABS/Polycarbonate
  • Contact Material: Gold
  • Module Type: Keystone
  • Wiring Scheme: T568A/T568B
  • Shield Type: Unshielded (UTP)
  • Sub Brand: NetKey™
  • Connector 1 Type: Keystone Punchdown Jack Module
  • Connector 2 Type: Keystone Punchdown Jack Module
  • Maximum Operating Temperature (°C): 65
  • Maximum Operating Temperature (°F): 149
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Maximum Storage Temperature (°C): 70
  • Color: Off White
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
  • Overall Depth (In.): 1.16
  • Overall Depth (mm): 29.5
  • Overall Height (In.): 0.9
  • Overall Height (mm): 22.9
  • Overall Length (mm): 29.5
  • Overall Length (In.): 1.16
  • Overall Width (mm): 16.5
  • Overall Width (In.): 0.65

Packaging Details

  • UPC: 07498357468
  • GTIN Package: 00074983574681
  • Standard Package Volume Ft3: 0.0032
  • Standard Package Weight Pounds: 0.0240
  • Std Package Height In: 1.05
  • Std Package Height MM: 26.67
  • Std Package Length In: 3.7
  • Std Package Length MM: 93.98
  • Std Package Width In: 2.8
  • Std Package Width MM: 71.12
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983574686
  • Standard Carton Volume Ft3: 0.0032
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 3.45
  • Std Carton Height MM: 87.63
  • Std Carton Length In: 11
  • Std Carton Length MM: 93.98
  • Std Carton Width In: 7.25
  • Std Carton Width MM: 184.15
  • Std Ctn Qty: 50
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US,CR
  • RoHS Compliant: Compliant
  • EAN: 00074983574681
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498357468
GTiN 00074983574681
Width 0.65 in
Color Off White
Type RJ45, Unshielded, Universal, Keystone, 8-Wire
Applications 10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Depth 1.16 in
Height 0.9 in
Country of Origin CR,US
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 6
Carton Qty 50
Max Operating Temperature 149 degrees F
Overall Length 1.16 in
Min Operating Temperature 14 degrees F
Sub Brand NetKey
Material ABS/Polycarbonate
Cable Type Category 6
Cable Size 26-22 AWG
Temperature Rating -10 to 65 C
Blade Dimensions 0.645 in W x 1.16 in D x 7/8 in H
Environmental Conditions 14 F
Number of Positions 8
Used With T568A/T568B Cable
