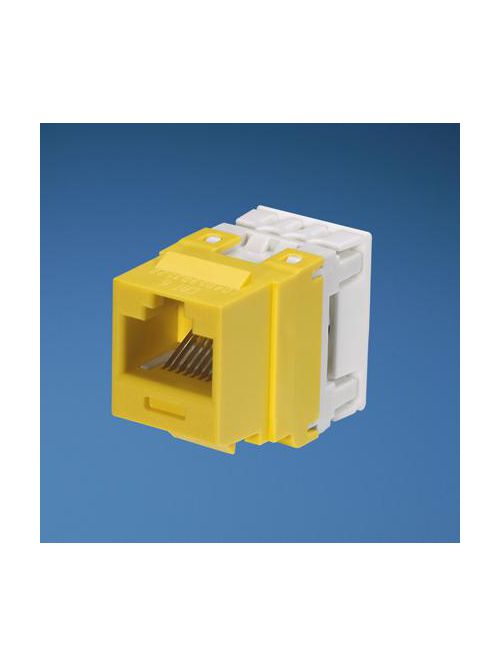

PAN NK688MYL NK,Cat6,punchdownjackm

$9.46/ea

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UNSPSC: 43223301
Product Segment: EDI-ENT
Note: NA
Product Type: Jack Module
Performance Level: Category 6
Connector Type: Jack Module
Termination Style: Punchdown
Body Material: ABS/Polycarbonate
Contact Material: Plated Phosphor Bronze
Module Type: Keystone
Wiring Scheme: T568A/T568B
Shield Type: Unshielded (UTP)
Sub Brand: NetKey®
Maximum Operating Temperature (°F): 149
Maximum Operating Temperature (°C): 65
Minimum Operating Temperature (°C): -10
Minimum Operating Temperature (°F): 14
Maximum Storage Temperature (°F): 158
Maximum Storage Temperature (°C): 70
Color: Yellow
Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
RoHS Compliant: Yes
Overall Depth (mm): 29.5
Overall Depth (In.): 1.16
Overall Height (In.): 0.9
Overall Height (mm): 22.9
Overall Length (In.): 1.16
Overall Length (mm): 29.5
Overall Width (mm): 16.5
Overall Width (In.): 0.65

UPC	07498357467
GTiN	00074983574674
Width	0.65 in
Color	Yellow
Type	RJ45, Unshielded, Universal, Keystone, 8-Wire
Applications	10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Depth	1.16 in
Height	0.9 in
Country of Origin	CR,US
Pkg Qty	1
Family Brand Name	Panduit
Performance Level	Category 6
Carton Qty	50
Max Operating Temperature	149 degrees F
Overall Length	1.16 in
Min Operating Temperature	14 degrees F
Sub Brand	NetKey
Material	ABS/Polycarbonate
Cable Type	Category 6
Cable Size	26-22 AWG
Temperature Rating	-10 to 65 C
Blade Dimensions	0.645 in W x 1.16 in D x 7/8 in H
Environmental Conditions	14 F
Number of Positions	8
Used With	T568A/T568B Cable
UNSPSC	43223301
