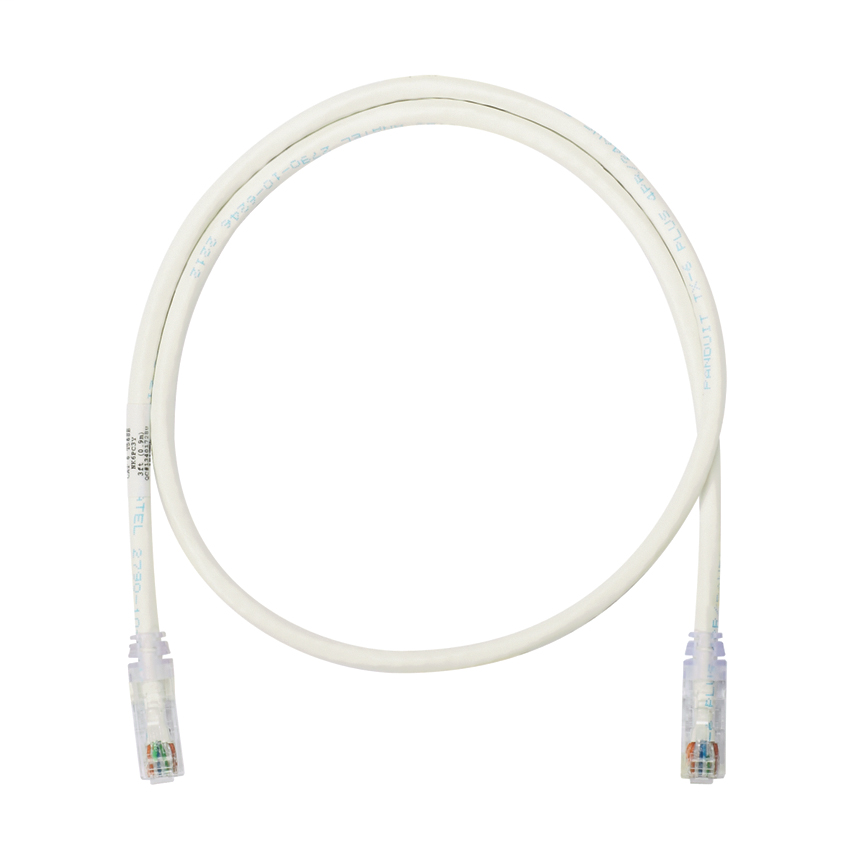

PAN NK6PC7Y NK,Cu,PC,Cat6,UTP,Cbl,I
$10.01/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK6PC7Y
North Coast Part # 552242

Specifications

  • Product Segment: EDI-ENT
  • Product Type: Patch Cord
  • Application: 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token Ring 4/16 4) Voice over internet protocol (VoIP)
  • Conductor Gauge (AWG): 24
  • Conductor Gauge (kcmil): 0.4
  • Performance Level: Category 6
  • Conductor Type: Stranded
  • Cable Construction: U/UTP
  • Patch Cord Type: Unshielded
  • Connector 1 Type: Modular Plug
  • Connector 2 Type: Modular Plug
  • Overall Length (ft.): 7
  • Nominal Cable Outside Diameter (In.): 0.23
  • Wiring Scheme: T568B
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Boot Color: Clear
  • Color: Off-White
  • Sub Brand: NetKey
  • Flammability Rating: CM
  • Standards Met: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements at swept frequencies up to 250 MHz; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz; Complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant
  • IEC Variant: 60603-7
  • PoE Compatibility: PoE, PoE+, PoE++
  • Plug Type: 8 Position

Packaging Details

  • UPC: 07498305569
  • GTIN Package: 00074983055692
  • Standard Package Volume Ft3: 0.0193
  • Standard Package Weight Pounds: 0.2900
  • Std Package Height In: .75
  • Std Package Height MM: 19.05
  • Std Package Length In: 9
  • Std Package Length MM: 228.6
  • Std Package Width In: 8.9
  • Std Package Width MM: 226.06
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983055697
  • Standard Carton Volume Ft3: 0.0193
  • Standard Carton Weight Pounds: 2.9000
  • Std Carton Height In: 3.85
  • Std Carton Height MM: 97.79
  • Std Carton Length In: 10.85
  • Std Carton Length MM: 228.6
  • Std Carton Width In: 9.15
  • Std Carton Width MM: 232.41
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983055692
  • NLD HS Code: 8544421000000000000000
  • USA HS Code: 8544422000000000000000
  • USA HS Code 10digit: 8544422000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498305569
GTiN 00074983055692
Length 7 ft
Color Off-White
Type Category 6
Outer Diameter 0.23 in
Conductor Size 24 AWG
Applications For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Cable Type 24 AWG U/UTP
Country of Origin Costa Rica
Wire Size 24 AWG
Temperature Rating 14 - 140 F
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 6
Carton Qty 10
Max Operating Temperature 140 degrees F
Overall Length 7 ft
Min Operating Temperature 14 degrees F
Boot Color Clear
Plug Type Modular Plug
Sub Brand NetKey
Connector Type Modular Plug
Outside Diameter 0.23 in
Cable Length 7 ft
