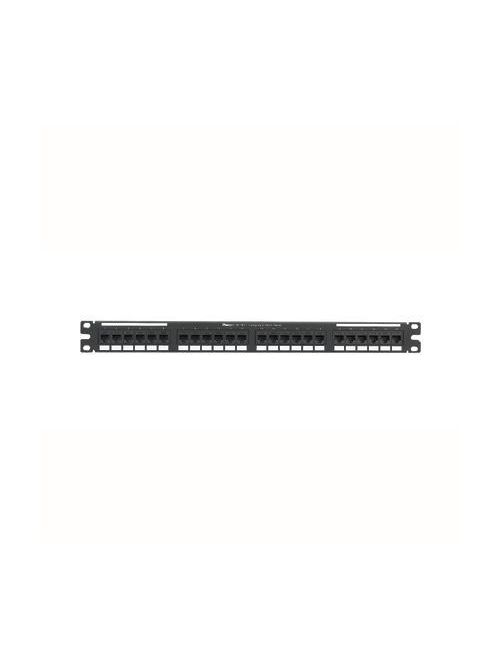

Panduit NK6PPG24Y 24-Port Category 6 Black Flat Punchdown Patch Panel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$250.23/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK6PPG24Y
North Coast Part # 545403

Specifications

  • Product Segment: EDI-ENT
  • Product Type: Punchdown Patch Panel
  • Termination Style: Punchdown
  • Patch Panel Style: Flat
  • Performance Level: Category 6
  • Material: Steel
  • Wiring Scheme: T568A/T568B
  • Number of Ports: 24
  • Module Type: NA
  • Number of Rack Units: 1
  • Overall Width (mm): 482.6
  • Overall Width (In.): 19
  • Overall Depth (mm): 29.7
  • Overall Depth (In.): 1.17
  • Overall Height (mm): 43.7
  • Overall Height (In.): 1.72
  • Identification Type: Adhesive Label
  • Sub Brand: NetKey
  • Color: Black
  • Standards Met: Meets all TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz, Complies with ANSI/TIA-1096A (formerly FCC Part 68); Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 approved, and RoHS Complaint
  • Maximum Operating Temperature (°F): 149
  • Maximum Operating Temperature (°C): 65
  • Minimum Operating Temperature (°F): -14
  • Minimum Operating Temperature (°C): -10
  • Overall Length (In.): 1.17
  • Overall Length (mm): 29.7

Packaging Details

  • UPC: 07498305580
  • GTIN Package: 00074983055807
  • Standard Package Volume Ft3: 0.1619
  • Standard Package Weight Pounds: 1.9800
  • Std Package Height In: 2.95
  • Std Package Height MM: 74.93
  • Std Package Length In: 20.5
  • Std Package Length MM: 520.7
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983055802
  • Standard Carton Volume Ft3: 0.1619
  • Standard Carton Weight Pounds: 19.8000
  • Std Carton Height In: 7.25
  • Std Carton Height MM: 184.15
  • Std Carton Length In: 21.1
  • Std Carton Length MM: 520.7
  • Std Carton Width In: 18.4
  • Std Carton Width MM: 467.36
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983055807
  • NLD HS Code: 8537109899000000000000
  • USA HS Code: 8537109170000000000000
  • USA HS Code 10digit: 8537109170
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498305580
GTiN 00074983055807
Width 19 in
Color Black
Type Flat
Material Steel
Depth 1.17 in
Height 1.72 in
Country of Origin MX
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 6
Carton Qty 10
Number of Ports 24
Max Operating Temperature 149 degrees F
Overall Length 1.17 in
Blade Dimensions 482.6 mm W x 29.6 mm D
Min Operating Temperature -14 degrees F
Sub Brand NetKey
CA Prop65 Warning No
Applications NA
