PAN NK6TMEI NK,Cat6,UTP,JackMod,TPS

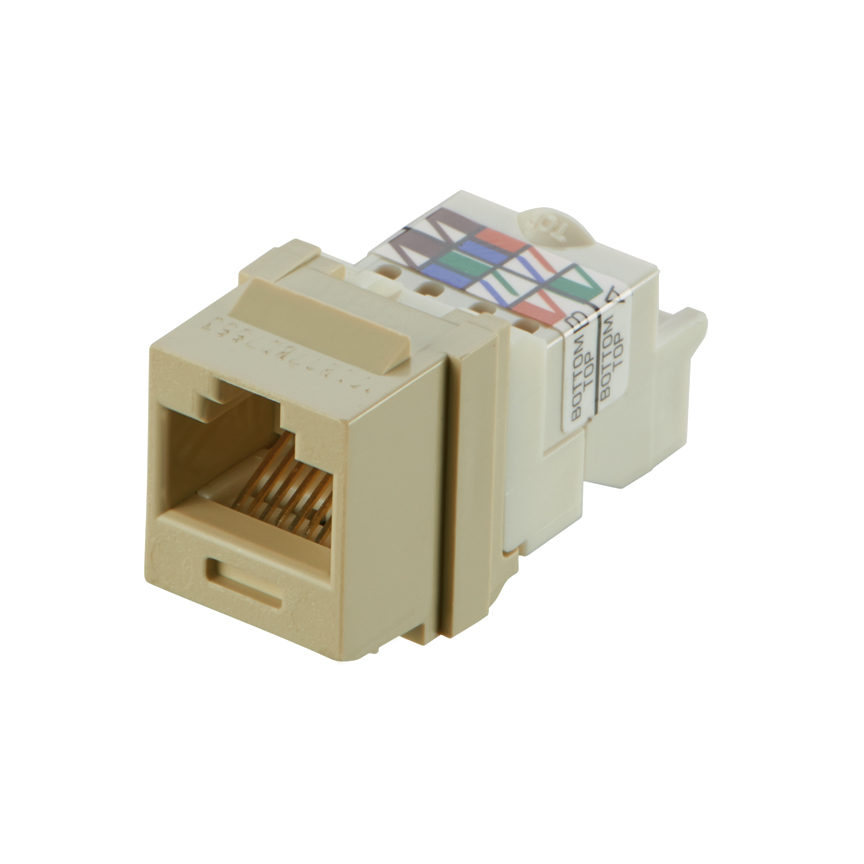

Product image thumbnail 0
Product image thumbnail 1
$7.11/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK6TMEI
North Coast Part # 552050

Specifications

  • Product Segment: EDI-ENT
  • UNSPSC: 43223301
  • Product Type: Jack Module
  • Note: NA
  • Performance Level: Category 6
  • Connector Type: Jack Module
  • Termination Style: TP Style
  • Body Material: ABS
  • Contact Material: Plated Phosphor Bronze
  • Module Type: Keystone
  • Wiring Scheme: T568A/T568B
  • Shield Type: Unshielded (UTP)
  • Sub Brand: NetKey®
  • Maximum Operating Temperature (°C): 65
  • Maximum Operating Temperature (°F): 149
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Maximum Storage Temperature (°C): 70
  • Color: Electric Ivory
  • RoHS Compliant: Yes
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
  • Overall Depth (mm): 36.3
  • Overall Depth (In.): 1.43
  • Overall Height (In.): 0.76
  • Overall Height (mm): 19.3
  • Overall Length (In.): 1.43
  • Overall Length (mm): 36.3
  • Overall Width (mm): 14.7
  • Overall Width (In.): 0.58

Packaging Details

  • UPC: 07498343808
  • GTIN Package: 00074983438082
  • Standard Package Volume Ft3: 0.0032
  • Standard Package Weight Pounds: 0.0240
  • Std Package Height In: .5
  • Std Package Height MM: 12.7
  • Std Package Length In: 4.5
  • Std Package Length MM: 114.3
  • Std Package Width In: 3.5
  • Std Package Width MM: 88.9
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983438087
  • Standard Carton Volume Ft3: 0.0032
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 3.3
  • Std Carton Height MM: 83.82
  • Std Carton Length In: 10.6
  • Std Carton Length MM: 114.3
  • Std Carton Width In: 7.3
  • Std Carton Width MM: 185.42
  • Std Ctn Qty: 50
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983438082
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10
  • Pallet Quantity: 16,800
  • Pallet Volume: 53.918715
  • Pallet Weight: 403.2000

Overview

UPC 07498343808
Item Long Description NK Cat 6 UTP Jack Module, TP Style, Electric Ivory
GTiN 00074983438082
Width 0.58 in
Color Electric Ivory
Type Unshielded, 8-Wire, Keystone, Universal, Shuttered
Applications For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Depth 1.43 in
Height 0.76 in
Country of Origin US
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 6
Max Operating Temperature 149 degrees F
Overall Length 1.43 in
Min Operating Temperature 14 degrees F
Sub Brand NetKey
Material ABS/Polycarbonate
Cable Type Category 6
Cable Size 26-22 AWG
Temperature Rating -10 to 65 C
Blade Dimensions 0.58 in W x 1.43 in D x 0.76 in H
Number of Positions 8
Used With T568A/T568B Cable
UNSPSC 43223301
