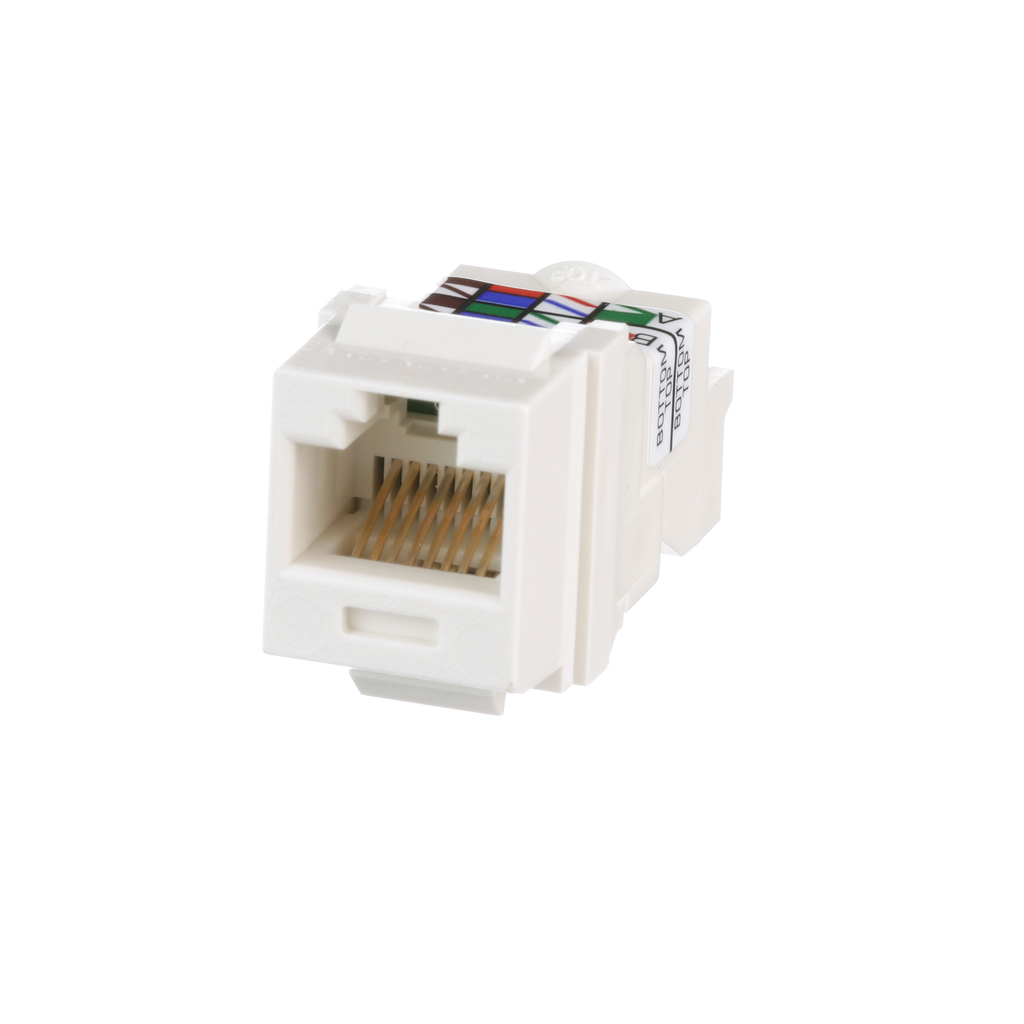

PAN NK6TMIW UTP RJ45 Cat 6 Keystone
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.11/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NK6TMIW
North Coast Part # 552048

Specifications

  • Product Segment: EDI-ENT
  • Product Type: Jack Module
  • Note: TP style termination
  • Performance Level: Category 6
  • Connector Type: Jack Module
  • Termination Style: TP Style
  • Body Material: ABS/Polycarbonate
  • Contact Material: Plated Phosphor Bronze
  • Module Type: Keystone
  • Wiring Scheme: T568A/T568B
  • Shield Type: Unshielded (UTP)
  • Sub Brand: NetKey®
  • Maximum Operating Temperature (°F): 149
  • Maximum Operating Temperature (°C): 65
  • Minimum Operating Temperature (°F): 14
  • Minimum Operating Temperature (°C): -10
  • Maximum Storage Temperature (°F): 158
  • Maximum Storage Temperature (°C): 70
  • Color: Off White
  • Standards Met: Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
  • Overall Depth (mm): 36.3
  • Overall Depth (In.): 1.43
  • Overall Height (In.): 0.76
  • Overall Height (mm): 19.3
  • Overall Length (mm): 36.3
  • Overall Length (In.): 1.43
  • Overall Width (In.): 0.58
  • Overall Width (mm): 14.7

Packaging Details

  • UPC: 07498343805
  • GTIN Package: 00074983438051
  • Standard Package Volume Ft3: 0.0032
  • Standard Package Weight Pounds: 0.0240
  • Std Package Height In: 1.4
  • Std Package Height MM: 35.56
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 2.8
  • Std Package Width MM: 71.12
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983438056
  • Standard Carton Volume Ft3: 0.0032
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 3.5
  • Std Carton Height MM: 88.9
  • Std Carton Length In: 10.7
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 7.2
  • Std Carton Width MM: 182.88
  • Std Ctn Qty: 50
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983438051
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 25
  • Pallet Quantity: 16,800
  • Pallet Volume: 53.886389
  • Pallet Weight: 403.2000

Overview

UPC 07498343805
Item Long Description NK Cat 6 UTP Jack Module, TP Style, Off White
GTiN 00074983438051
Width 0.58 in
Color Off-White
Type 8-Wire, Keystone, Unshielded
Applications For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Depth 1.43 in
Height 0.76 in
Country of Origin US
Pkg Qty 1
Family Brand Name Panduit
Performance Level Category 6
Max Operating Temperature 149 degrees F
Overall Length 1.43 in
Min Operating Temperature 14 degrees F
Sub Brand NetKey
Material ABS
Mounting Type Surface/Patch Panel/Faceplate
Cable Type Category 6
Cable Size 26-22 AWG
Temperature Rating -10 to 65 C
Blade Dimensions 0.645 in W x 1.16 in D x 7/8 in H
Number of Positions 8
Used With T568A/T568B Cable
