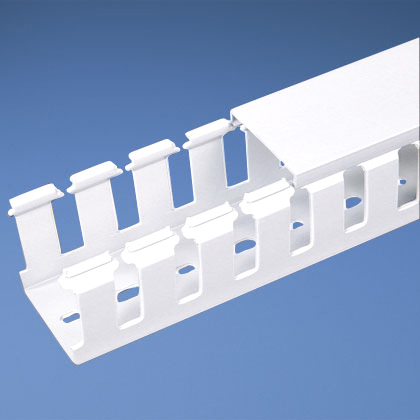

PAN NNC75X75WH2 Slot HalFree MDCT,7
$76.32/ea
Usually ships within 6 to 10 Days
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # NNC75X75WH2
North Coast Part # 671857

Specifications

  • Product Segment: IEI
  • Application: NNC Wiring Duct is Used to Route, Protect, and Manage Wires near Sensitive Electronic Equipment and in Environments where Heat Resistance or Public Safety is a Concern
  • Product Type: Base/Cover
  • Color: White
  • Cover Part Number: NC75WH2 (included)
  • Flammability Rating: UL94V-0
  • Includes: Base and Cover
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
  • Material: Halogen-Free PPO
  • Mount Method: DIN Mounting Holes
  • Measurement System: Metric
  • Wiring Duct Style: Wide Slot Wiring Duct
  • Wiring Duct Type: NNC
  • Overall Height (In.): 2.85
  • Overall Height (mm): 72.4
  • Overall Length (m): 2
  • Overall Length (ft.): 6.5
  • Overall Width (In.): 2.97
  • Overall Width (mm): 75.4
  • Sub Brand: Panduct®
  • Slot Width (In.): 0.39
  • Slot Width (mm): 10

Packaging Details

  • UPC: 07498344283
  • GTIN Package: 00074983442836
  • Standard Package Volume Ft3: 0.3537
  • Standard Package Weight Pounds: 2.9920
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 78
  • Std Package Length MM: 1981.2
  • Std Package Width In: 5.1
  • Std Package Width MM: 129.54
  • Std. Pkg. UOM: Meters
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2
  • GTIN Carton: 50074983442831
  • Standard Carton Volume Ft3: 0.3537
  • Standard Carton Weight Pounds: 14.9600
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 80.1
  • Std Carton Length MM: 1981.2
  • Std Carton Width In: 10.2
  • Std Carton Width MM: 259.08
  • Std Ctn Qty: 10
  • Min. Order UOM: Meters
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983442836
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10

Categories

Overview

UPC 07498344283
GTiN 00074983442836
Length 2 m
Width 2.97 in
Size 74.7 x 72.4 mm
Color White
Type Base/Cover
Material Halogen-Free PPO
Height 2.85 in
Country of Origin US
Pkg Qty 2
Family Brand Name Panduit
Carton Qty 10
TC Connection DIN Mounting Holes
Overall Length 6.6 ft
Sub Brand Panduct
Applications NNC Wiring Duct is Used to Route, Protect, and Manage Wires near Sensitive Electronic Equipment and in Environments where Heat Resistance or Public Safety is a Concern
Mounting Type DIN Mounting Holes
