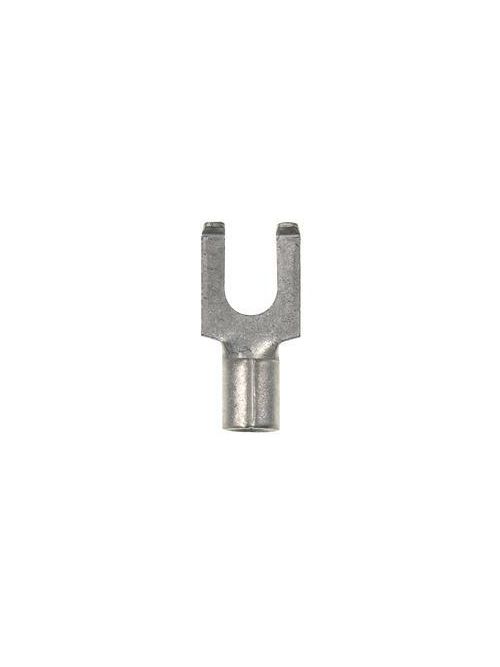

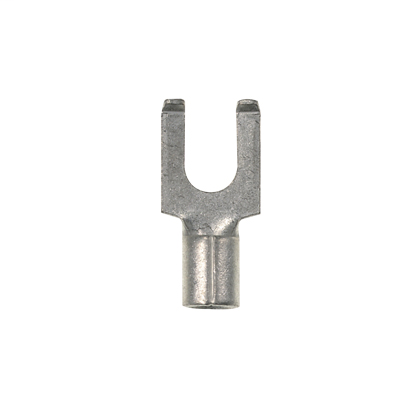

PAN P10-10FF-D Fork Flange,Non-Insu
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$308.54/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P10-10FF-D
North Coast Part # 756531

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Flanged Fork
  • Insulation Material: NA
  • Insulation Type: Non-Insulated
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Minimum Copper Conductor Size (AWG): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Minimum Copper Conductor Size (AWG STR): #12
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Stud Size: #10
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 2
  • Maximum Voltage (V): 2000
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Metallic
  • Barrel Type: Beveled
  • Barrel Length (In.): 0.28
  • Barrel Length (mm): 7
  • Flammability Rating: UL 587-H
  • Maximum Operating Temperature (°C): 175
  • Maximum Operating Temperature (°F): 347
  • Seam Type: Brazed
  • Stud Hole Size (In.): 1/5
  • Stud Hole Size (mm): 4.8
  • Inside Diameter (mm): 1.8
  • Inside Diameter (In.): 0.07
  • Overall Length (In.): 0.8
  • Overall Length (mm): 20.3
  • Overall Width (In.): 0.38
  • Overall Width (mm): 9.7
  • Tongue Length (In.): 0.53
  • Tongue Length (mm): 13.3
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Sub Brand: Pan-Term
  • Tongue Width (mm): 9.7
  • Tongue Width (In.): 0.38
  • Packaging Type: Box
  • Product Type: Loose Piece Forks
  • For Use With: CT-100, CT-160, CT-200

Packaging Details

  • UPC: 07498380707
  • GTIN Package: 00074983807079
  • Standard Package Volume Ft3: 0.4314
  • Standard Package Weight Pounds: 1.7500
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 5.15
  • Std Package Length MM: 130.81
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.4314
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 130.81
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983807079
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500
  • Pallet Quantity: 480,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 1,680.0000

Overview

GTiN 00074983807079
Finish Tin-Plated
Width 0.38 in
Type Loose Piece Forks
Barrel Type Beveled
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 302 F
Pkg Qty 500
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 347 degrees F
Overall Length 0.8 in
Barrel Length 0.28 in
Color Coding Metallic
Enclosure Fork shape
Sub Brand Pan-Term
Product UPC 07498380707
Size NA
Voltage 2,000 Volt
UNSPSC 39121409
